Page 16 www.sauder.com/services 413072
Carefully stand your unit upright.

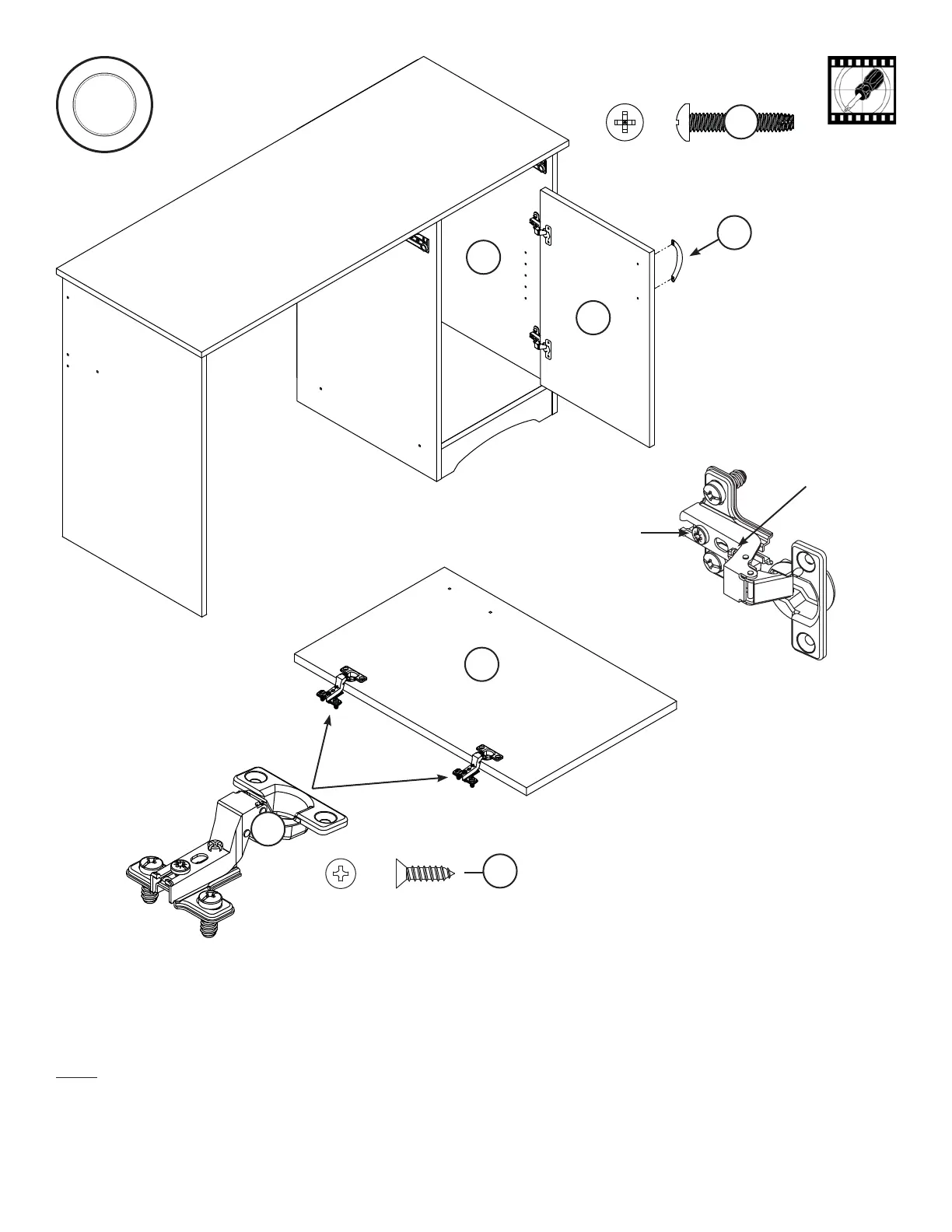

Fasten the HINGES (FF) to the DOOR (J). Use four BLACK 1/2" FLAT HEAD SCREWS (XX).
Fasten the DOOR (J) to the RIGHT END (A). Use the screws in the HINGES. See the next step for door adjustments.
NOTE: You may need to loosen the mounting screw and adjusting screw to slide them part way out of the slot. Retighten the screw
before you mount the HINGE to the MOLDING.
Fasten a PULL (JJ) to the DOOR (J). Use two SILVER 7/8" MACHINE SCREWS (TT).
BLACK 1/2" FLAT HEAD SCREW
(4 used for the HINGES)
XX
FF
SILVER 7/8" MACHINE SCREW
(2 used for the PULL)
TT
J
J
JJ
A
Mounting screw
Adjusting screw
