NOTE: Do not apply any pressure to the SUPPORT (Q) or
HEADBOARD (S) once they are fastened in this step.
å

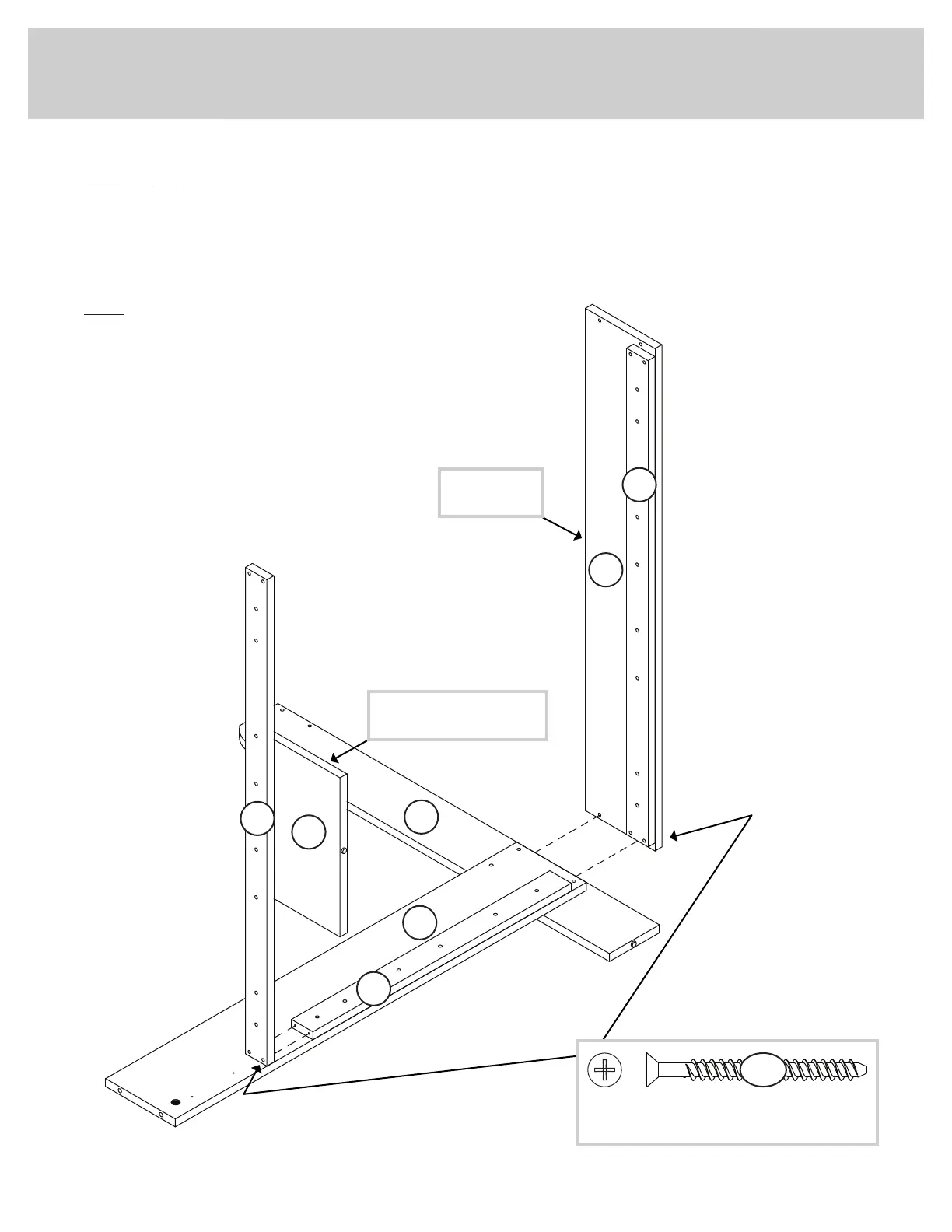

Fasten the remaining SUPPORT (Q) with LARGE SUPPORT (Y)
to the SMALL SUPPORT (X) on the LEFT HEADBOARD RAIL (T).
Use two BLACK 1-15/16" FLAT HEAD SCREWS (113S).
å
NOTE: The LARGE SUPPORT (Y) should be facing toward
the HEADBOARD (S).
å
Fasten the HEADBOARD (S) to the LEFT HEADBOARD RAIL (T).
Use two BLACK 1-15/16" FLAT HEAD SCREWS (113S).
Step 9
414129www.sauder.com/service
Page 13
BLACK 1-15/16" FLAT HEAD SCREW
(4 used in this step)
113S
S
Q
Y
Q
Finished edge
with holes
T
X
The LARGE SUPPORT (Y)
should be here.
B3
To Next Page
