Step Step 19
LARGE DOOR ON RIGHT
å

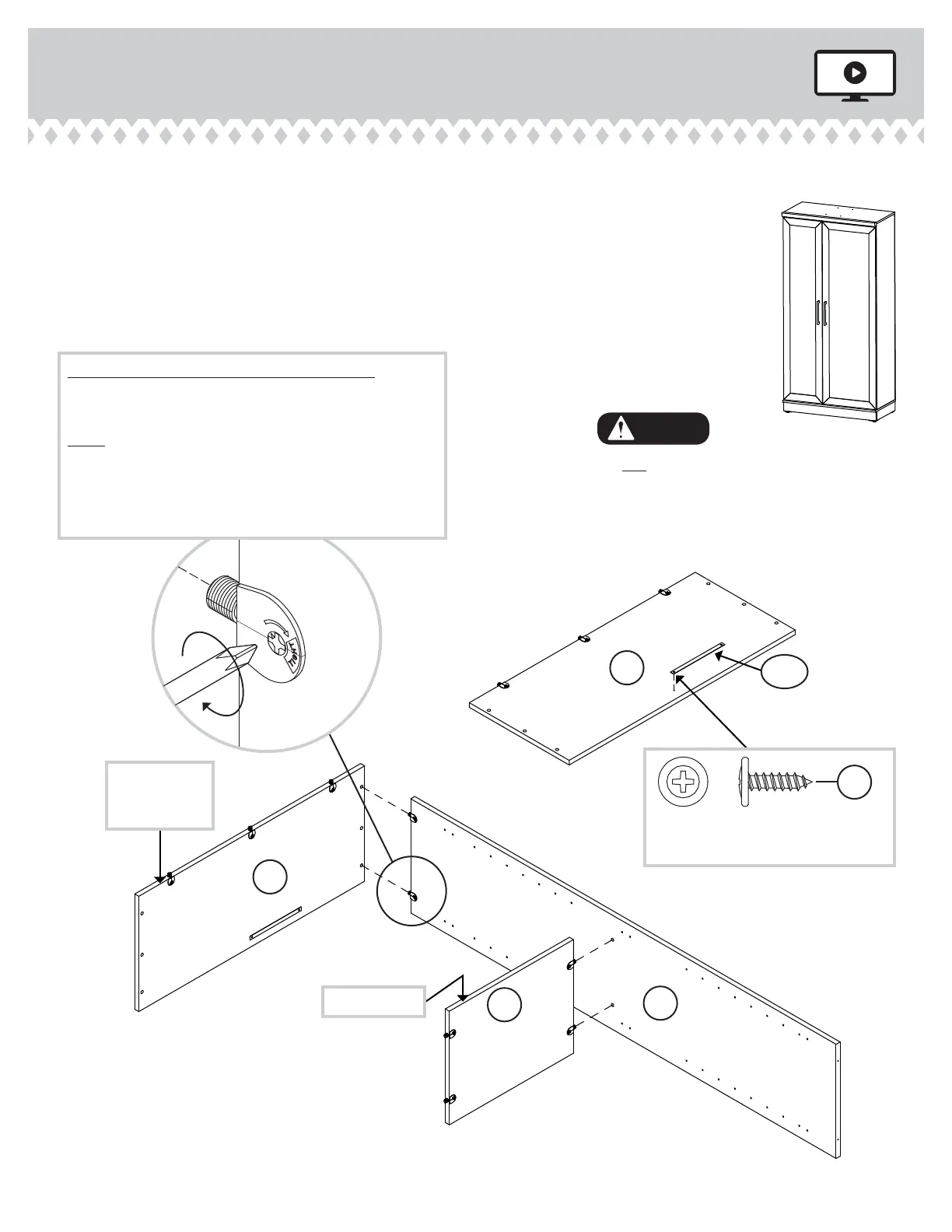

Fasten the SAFETY STRAP (60M) to the TOP (E2) in the exact
hole shown. Use one BLACK 9/16" LARGE HEAD SCREW (1S).
å
Fasten the LARGE END (B2) to the TOP (E2). Tighten two
TWIST-LOCK® FASTENERS.
å
Fasten the LARGE SHELF (I) to the LARGE END (B2). Tighten
two TWIST-LOCK® FASTENERS.
B2
E2
I
How to use the SAUDER TWIST-LOCK
®
FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Surface with
TWIST-LOCK®
FASTENERS
Finished edge
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
BLACK 9/16" LARGE HEAD SCREW
(1 used for the SAFETY STRAP)
1S
60M
422427www.sauder.com/services
Page 25
E2
Edge with
TWIST-LOCK®
FASTENERS
