Step Step 27
å

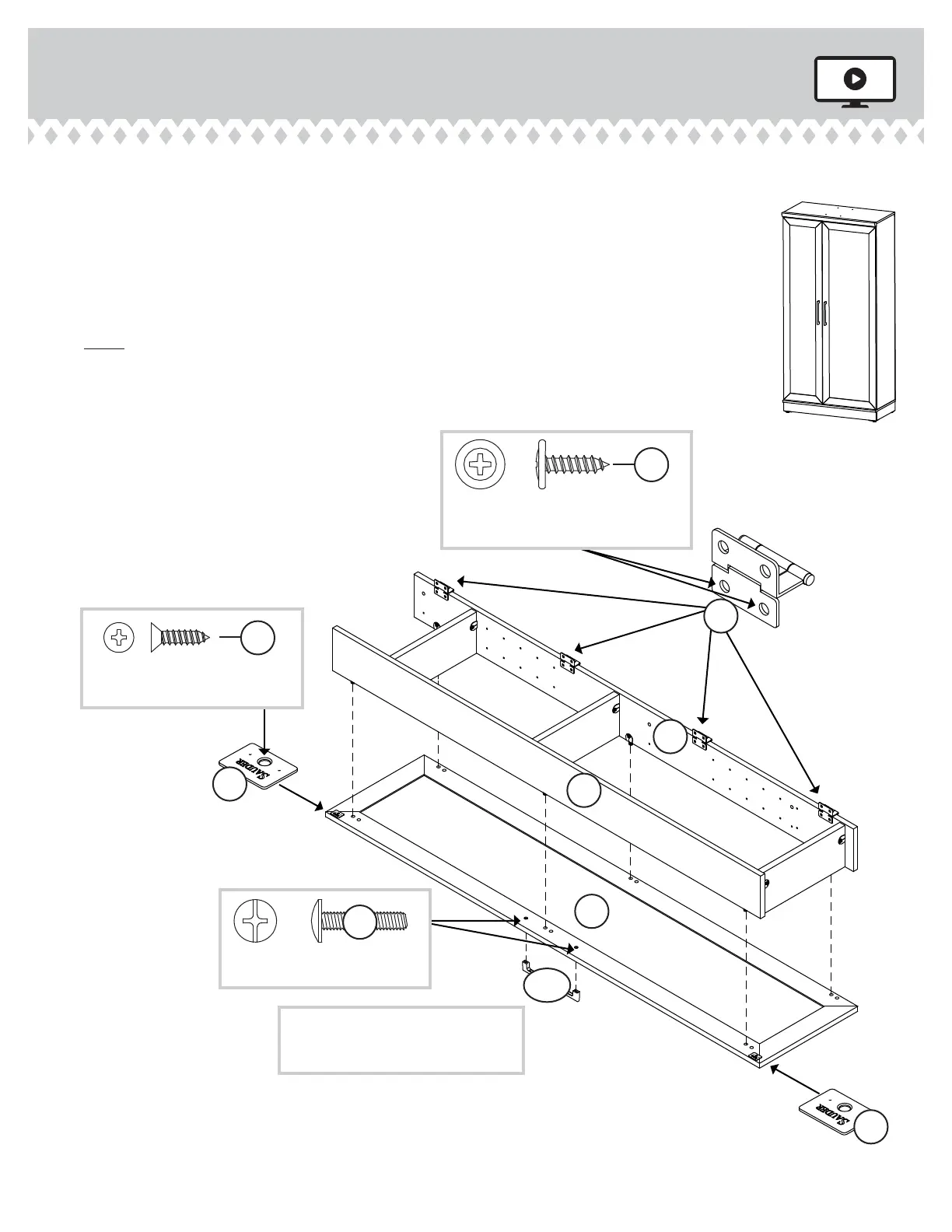

Fasten the STRIKE PLATES (6I) to the SMALL DOOR (M).
Use two BLACK 1/2" FLAT HEAD SCREWS (11S).
å
Fasten the PULL (102K) to the SMALL DOOR (M). Use two
SILVER 3/4" MACHINE SCREWS (20S).
å
Fasten the DOOR UPRIGHT (H) and DOOR END (C) to the
SMALL DOOR (M). Tighten six TWIST-LOCK® FASTENERS.
å
NOTE: Use the exact holes shown.
å
Fasten the HINGES (1H) to the DOOR END (C). Use eight
BLACK 9/16" LARGE HEAD SCREWS (1S).
C
H
M
1H
BLACK 9/16" LARGE HEAD SCREW
(8 used for the HINGES)
1S
SILVER 3/4" MACHINE SCREW
(2 used for the PULL)
20S
BLACK 1/2" FLAT HEAD SCREW
(2 used for the STRIKE PLATES)
11S
IMPORTANT: The PULL (102K) must
be fastened to the DOOR before the
END and UPRIGHT are fastened.
6I
6I
422427www.sauder.com/services
Page 33
LARGE DOOR ON RIGHT
102K
To Next Page
