Fasten the CABINET RAILS (GG and HH) to the LEFT END (B) and LEFT UPRIGHT (D). Use four GOLD 5/16" FLAT
HEAD SCREWS (PPP).
å
NOTE: The CABINET RAILS are marked "CABINET RIGHT" and "CABINET LEFT" for easy identifi cation.
å
Separate the NARROW EXTENSION SLIDES (BB) from the NARROW EXTENSION RAILS (AA) as shown in the upper
diagram below. Be prepared, the parts are greasy.
å
Fasten the NARROW EXTENSION RAILS (AA) to the LEFT END (B) and LEFT UPRIGHT (D). Use four GOLD 5/16" FLAT
HEAD SCREWS (PPP).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then, slide the inner cartridge
of the EXTENSION RAIL out to fi nd the other hole that lines up with the hole in the END. Turn a SCREW into this hole.
Step 3
404944 www.sauder.com/servicesPage 8
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
PPP
Open end
Open end
Finished edge
Finished edge

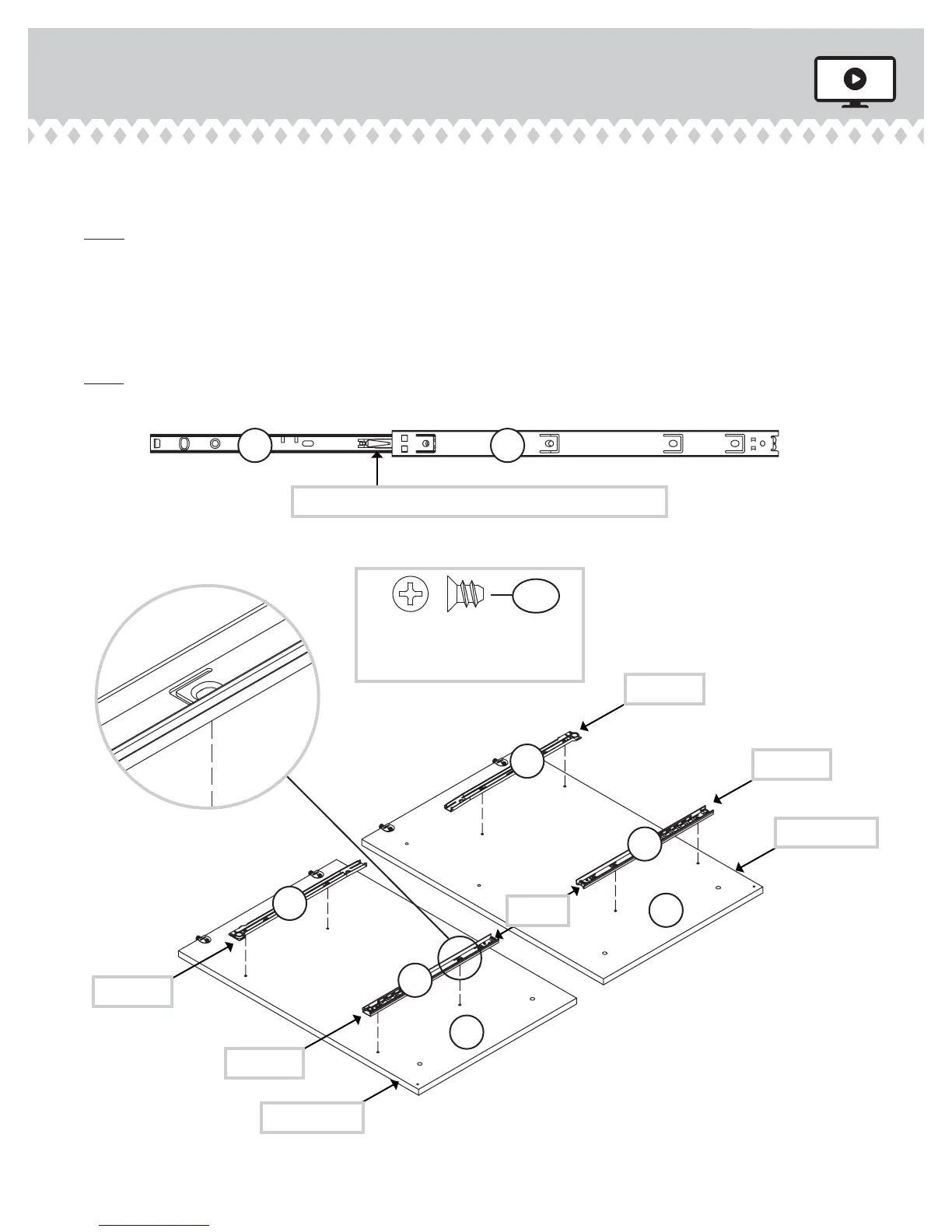

Push the release lever in and pull the SLIDE from the RAIL.
AABB
Roller end
B
D
AA
AA
GG
HH
Roller end
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Narrow
