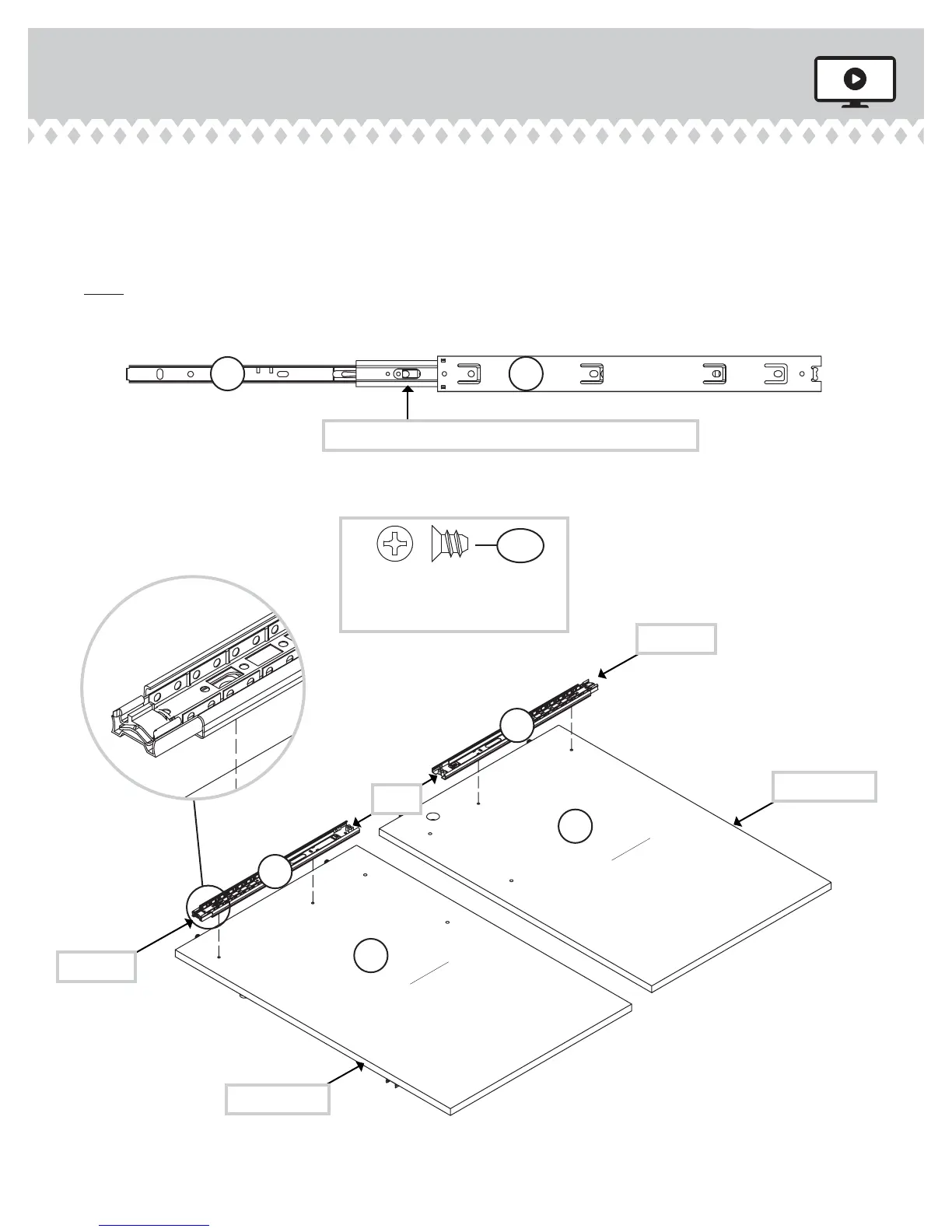

Separate the WIDE EXTENSION SLIDES (EE) from the WIDE EXTENSION RAILS (DD) as shown in the upper diagram
below. Be prepared, the parts are greasy.
å
Fasten the WIDE EXTENSION RAILS (DD) to the RIGHT UPRIGHT (C) and the other surface of the LEFT UPRIGHT (D). Use
four GOLD 5/16" FLAT HEAD SCREWS (PPP).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then, slide the inner cartridge
of the EXTENSION RAIL out to fi nd the other hole that lines up with the hole in the END. Turn a SCREW into this hole.
Step 4
404944www.sauder.com/services
Page 9
Push the release lever in and pull the SLIDE from the RAIL.
DDEE
C
D
Surface without
TWIST-LOCK®
FASTENERS
Surface without
TWIST-LOCK®
FASTENERS
Open end
Open end
Finished edge
Finished edge
Wide
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
PPP
DD
DD
To Next Page
