Sauder Harbor View 403793 - Step 7: Insert Metal Pins and Fasten Ends

Step
å

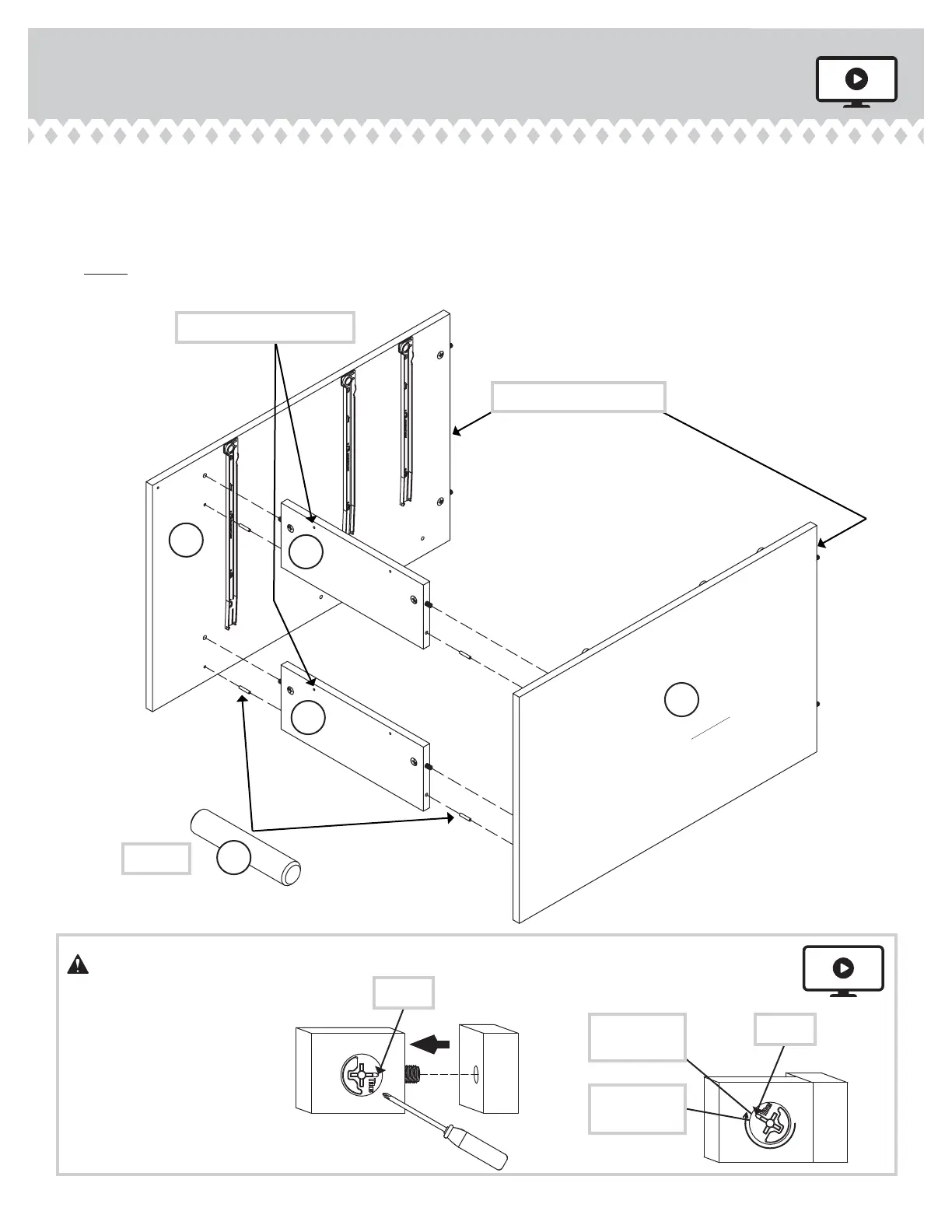

Insert four METAL PINS (DDD) into the ENDS (C and D).
å
Fasten the ENDS (C and D) to the BRACES (L). Tihten
four HIDDEN CAMS.
å
NOTE: Be sure the METAL PINS in the ENDS insert into
the holes in the BRACES.
Step 7
403793 www.sauder.com/servicesPae 12
Start Tighten
Arrow
Minimum
190 derees
Caution
Risk of damae or
injury. HIDDEN CAMS
must be completely
tihtened. HIDDEN
CAMS that are not
completely tihtened
may loosen, and parts
may separate. To
completely tihten:
Arrow
Maximum
210 derees
C
D
L
L
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface without
HIDDEN CAMS
Surface with
HIDDEN
CAMS
DDD
(4 used)
These holes must be here.
Ede with CAM DOWELS
