Sauder Harbor View 417586 - How to Use Hidden Cam and Cam Dowel

Hardware Usage Guide
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
3.

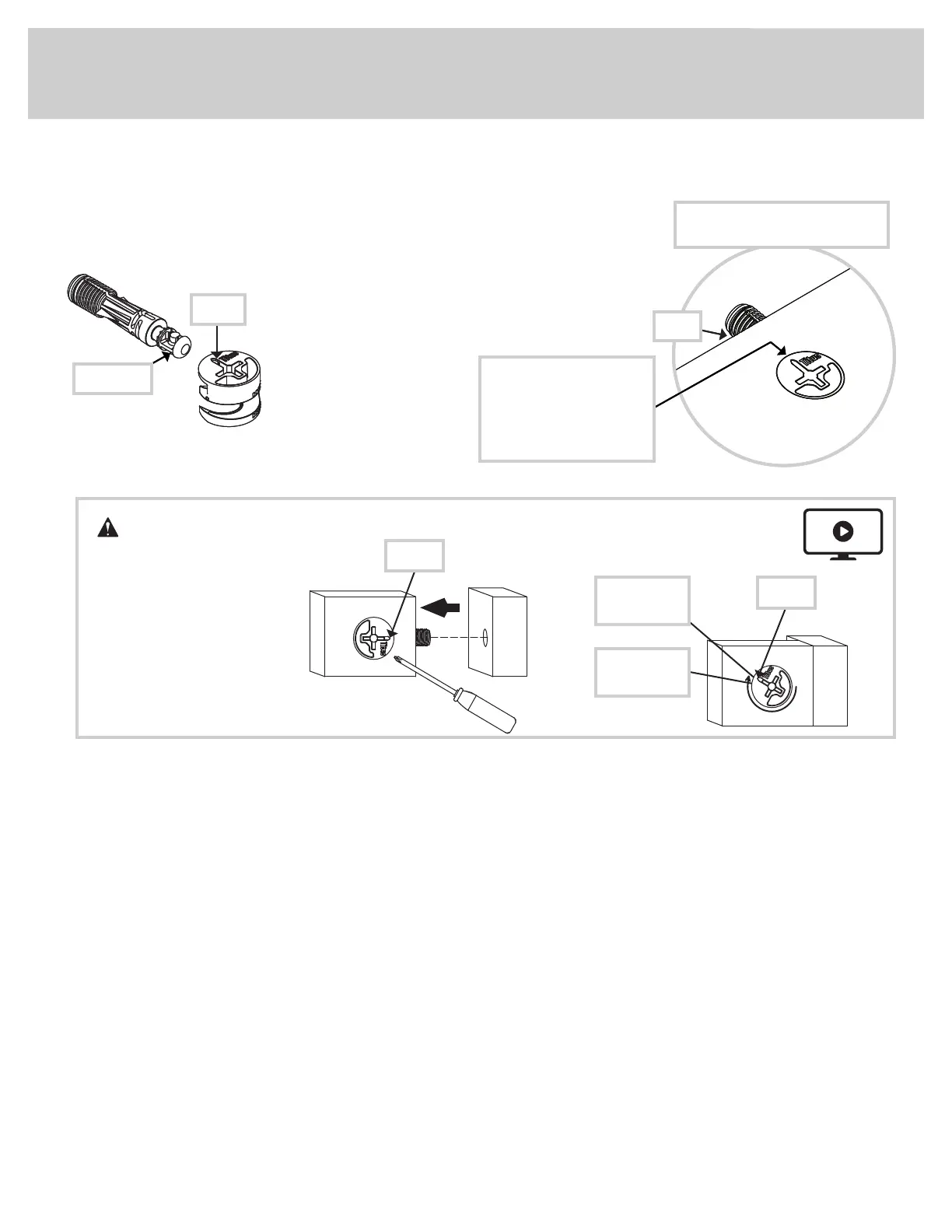

HOW TO USE A HIDDEN CAM & CAM DOWEL
Hole
Hidden Cam
Cam Dowel
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
HOW TO USE A HIDDEN CAM & CAM DOWEL
2.
Hole
Hidden Cam
Cam Dowel
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Metal end
Arrow
417586www.sauder.com/service
Page 13
1.
Push a HIDDEN CAM into
the part. The arrow in the
HIDDEN CAM must point
toward the hole in the
edge of the board.
