Sauder Harbor View 417586 - Page 18

å

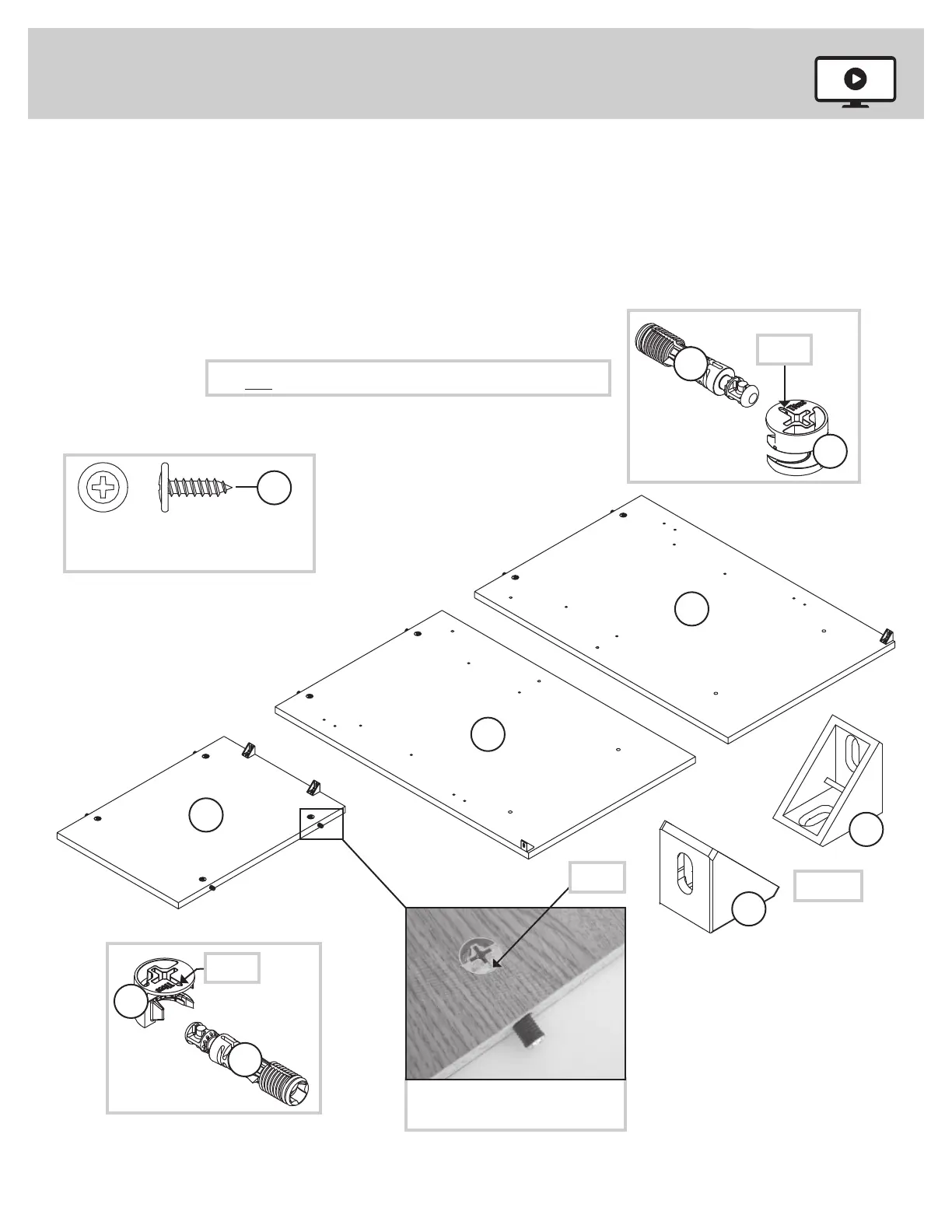

Push eight HIDDEN CAMS (1F) into the DOOR
ENDS (A and B), and BOTTOM (J). Then, insert the metal
end of a CAM DOWEL (2F) into each HIDDEN CAM.
å
Fasten four ANGLE BRACKETS (5G) to the
ENDS (A and B) and BOTTOM (J). Use four BLACK 9/16"
LARGE HEAD SCREWS (1S).
Step 12
J
B
A
Do not tighten the HIDDEN CAMS in this step.
(8 used)
Arrow
1F
2F
BLACK 9/16" LARGE HEAD SCREW
(4 used in this step)
1S
5G
5G
(4 used)
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Arrow
1F
2F
417586 www.sauder.com/servicePage 18
