Step 39
å

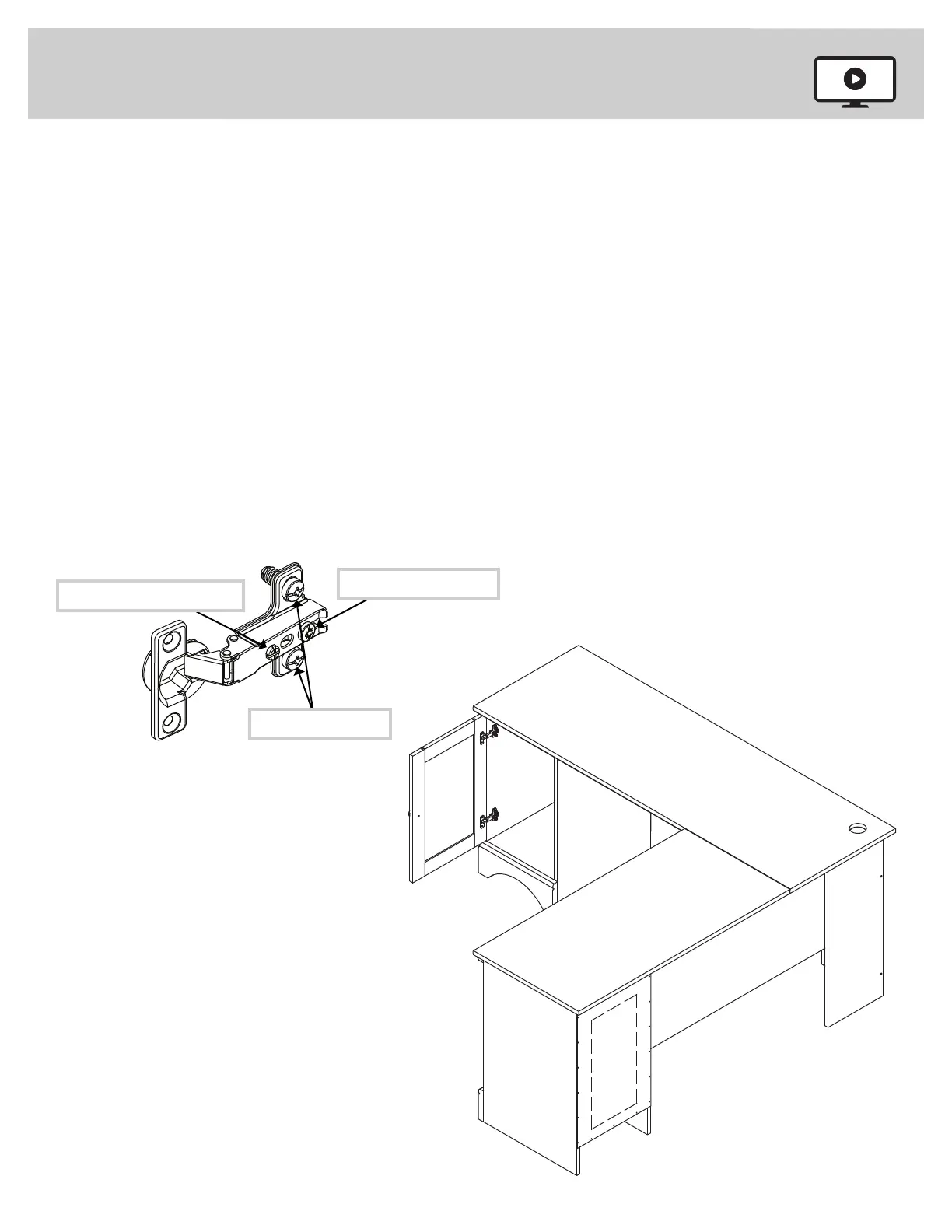

Refer to the enlarged diagram to identify the parts on
the HINGES.
å
The DOORS may need some adjustments. Follow the text below
to make needed adjustments.
å
DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn the
adjusting screw in or out.
å
To adjust the DOORS up and down (vertical), loosen both vertical
adjustment screws. Move the DOORS up or down to the desired
location. Tighten the screws after making adjustments.
å
To adjust the DOORS in or out (depth), loosen the mounting screw
one turn and move the DOORS in or out, as needed. Tighten the
mounting screw after making adjustments.
Adjusting screw (horizontal)
Mounting screw (depth)
(vertical adjustment)
