Step 13
417587www.sauder.com/services
Page 17
å
Carefully stand your unit upright.
å

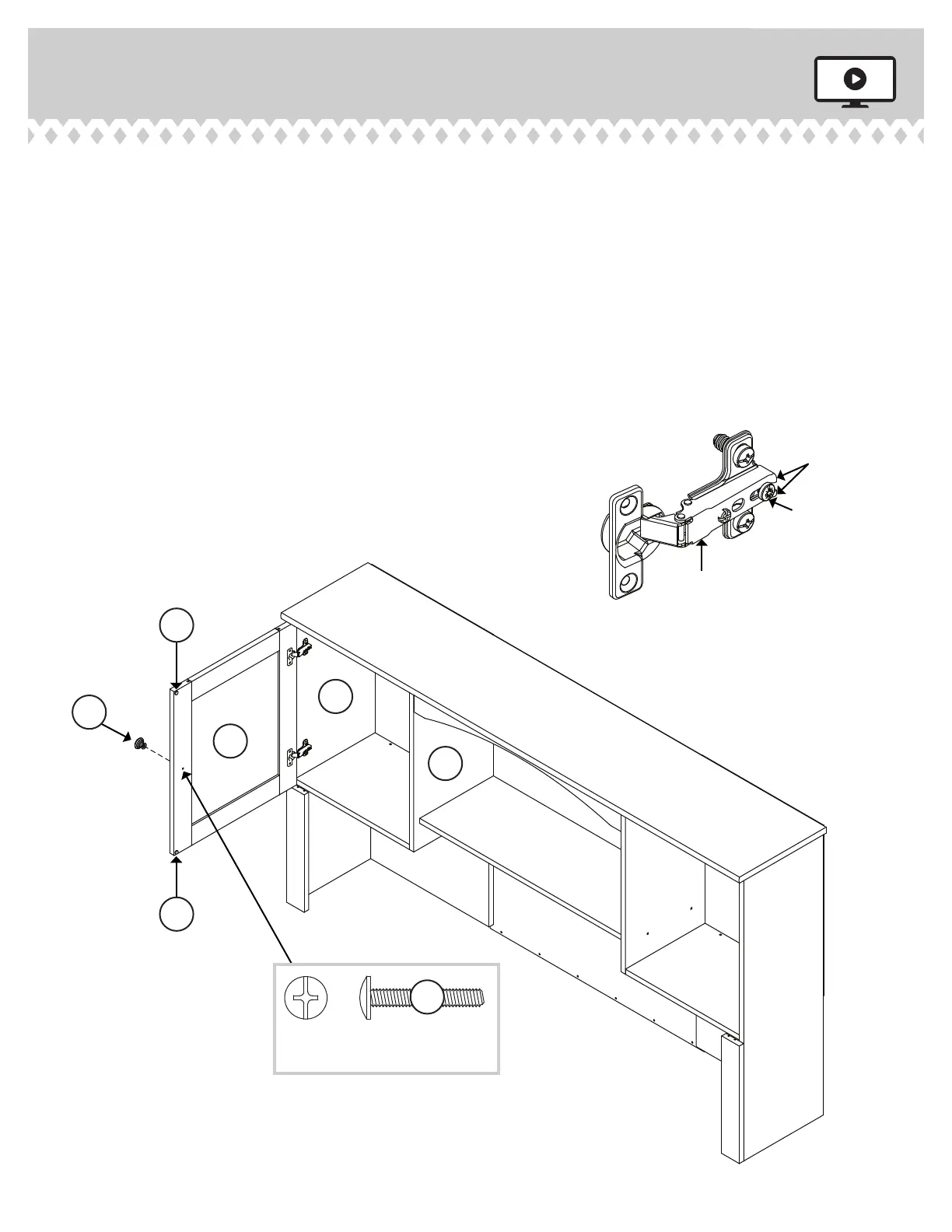

Before fastening the DOOR to your unit, be sure the mounting screw is against
the stops as shown in the right diagram. If it isn't, loosen the mounting screw to
slide it against the stops. Then tighten the mounting screw.
å
Fasten the DOOR (K) to the LEFT END (B) as shown in the lower diagram. Use
the screws in the HINGES. You should start each SCREW a few turns before
completely tightening any of them.
å
Fasten a KNOB (5K) to the DOOR (K). Use a GOLD 1" MACHINE SCREW (50S).
å
Peel the FELT DISCS from the FELT DISC CARD (1M). Stick two FELT DISCS
on the DOOR where it comes in contact with the LEFT UPRIGHT (D).
å
Repeat this step for the other DOOR (K).
å
See the next step for DOOR adjustments.
Mounting
screw
Stop
Hinge
K
B
D
5K
1M
1M
GOLD 1" MACHINE SCREW
(2 used in this step)
50S
