Sauder Nova Loft 423720 - Assembly Step 15: Assemble Small Drawer

Page 19www.sauder.com/service423720

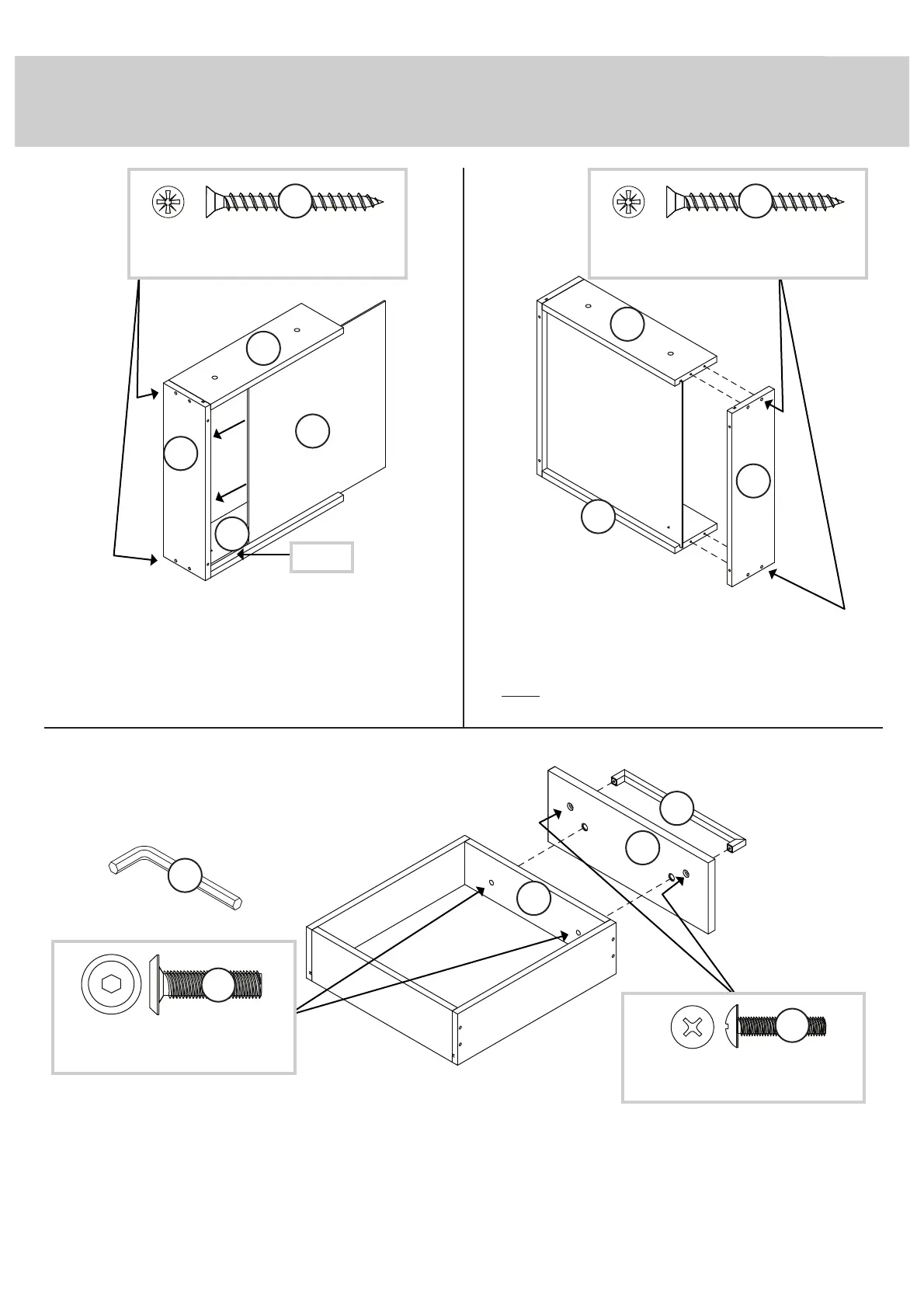

Step 15
å
Fasten a PULL (7) to the SMALL DRAWER FRONT (R). Use two BLACK 13/16" MACHINE SCREWS (14).
å
Fasten the SMALL DRAWER FRONT (R) to the SMALL DRAWER BOX FRONT (S). Turn two BLACK 7/8" HEX HEAD
SCREWS (13) with the L-WRENCH (8).
1
2
3
å
Fasten a SMALL LEFT DRAWER SIDE (UL) to the SMALL
DRAWER BACK (T) and SMALL DRAWER BOX FRONT (S).
Use four BLACK 1-9/16" FLAT HEAD SCREWS (12).
å
Slide the SMALL DRAWER BOTTOM (DD) into the grooves
of the SMALL DRAWER BACK (T), SMALL DRAWER BOX
FRONT (S) and SMALL DRAWER SIDE (UL).
å
Fasten the SMALL RIGHT DRAWER SIDE (UR) to the SMALL
DRAWER BOX FRONT (S) and SMALL DRAWER BACK (T).
Use four BLACK 1-9/16" FLAT HEAD SCREWS (12).
å
NOTE: Be sure the SMALL DRAWER BOTTOM inserts into
the groove of the SMALL RIGHT DRAWER SIDE.
BLACK 1-9/16" FLAT HEAD SCREW
(4 used in this step)
12
BLACK 1-9/16" FLAT HEAD SCREW
(4 used in this step)
12
BLACK 13/16" MACHINE SCREW
(2 used in this step)
14
BLACK 7/8" HEX HEAD SCREW
(2 used in this step)
13
T
T
S
S
S
R
7
UL
UR
Groove
DD
8
