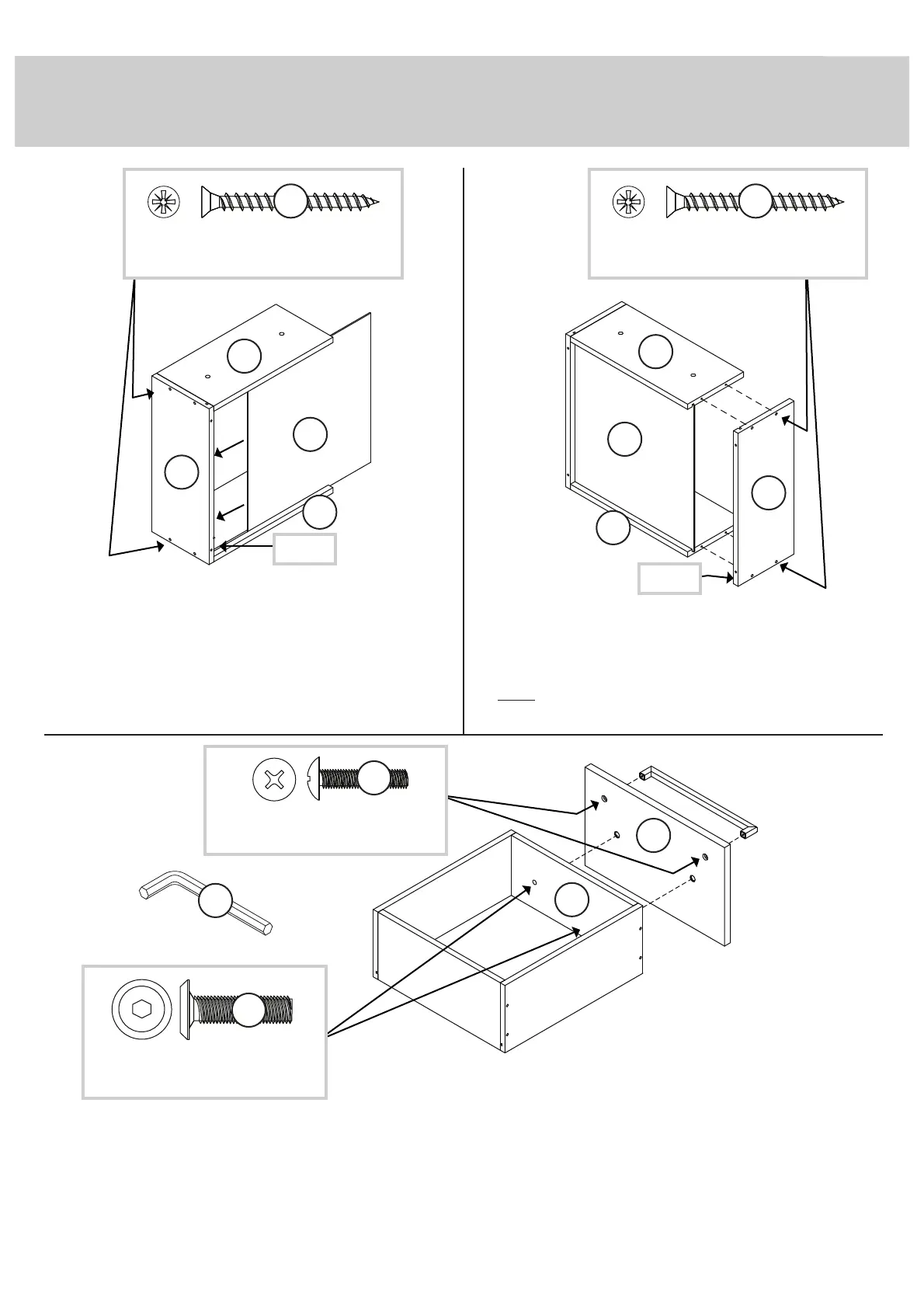

Step 17
12
3
å
Fasten the LEFT DRAWER SIDE (YL) to the DRAWER
BACK (X) and DRAWER BOX FRONT (W). Use four BLACK
1-9/16" FLAT HEAD SCREWS (12).
å
Slide the DRAWER BOTTOM (DD) into the grooves of the
DRAWER BACK (X), DRAWER BOX FRONT (W) and LEFT
DRAWER SIDE (YL).
å
Fasten the RIGHT DRAWER SIDE (YR) to the DRAWER
BOX FRONT (W) and DRAWER BACK (X). Use four BLACK
1-9/16" FLAT HEAD SCREWS (12).
å
NOTE: Be sure the DRAWER BOTTOM inserts into the
groove of the RIGHT DRAWER SIDE.
BLACK 1-9/16" FLAT HEAD SCREW
(4 used in this step)
12
BLACK 13/16" MACHINE SCREW
(2 used in this step)
14
BLACK 7/8" HEX HEAD SCREW
(2 used in this step)
13
8
å
Fasten a PULL (7) to the DRAWER BOX FRONT (W). Use two BLACK 13/16" MACHINE SCREWS (14).
å
Fasten the DRAWER FRONT (V) to the DRAWER BOX FRONT (W). Turn two BLACK 7/8" HEX HEAD SCREWS (13)
with the L-WRENCH (8).
X
X
V
W
W
W
YL
YR
Groove
DD
DD
Groove
BLACK 1-9/16" FLAT HEAD SCREW
(4 used in this step)
12
