Step 6
425014www.sauder.com/service
Page 11
A
å

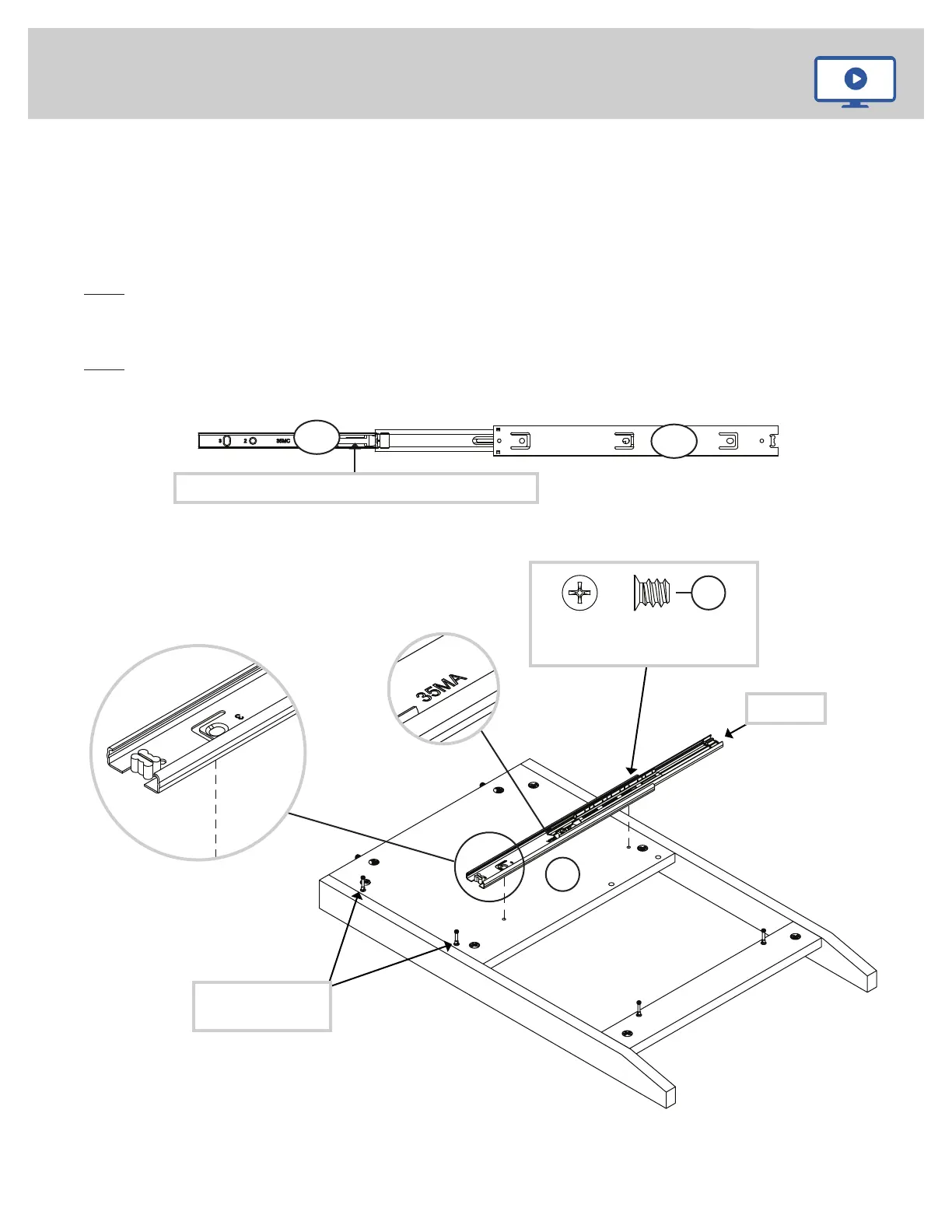

Separate the EXTENSION SLIDES (35MC) from the EXTENSION RAILS (35MA) as shown in the upper diagram
below. Be prepared, the parts are greasy.
å
Fasten one EXTENSION RAIL (35MA) to the RIGHT END (A). Use two GOLD 5/16" FLAT HEAD SCREWS (3S)
through holes #1 and #3.
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then, slide the
inner cartridge of the EXTENSION RAIL in to fi nd the other hole that lines up with the hole in the END. Turn a
SCREW into this hole.
å
NOTE: The EXTENSION SLIDES (35MC) will be used later for the DRAWER.
Open end
Push the black lever in and pull the SLIDE from the RAIL.
35MA
35MC
1
2
3
GOLD 5/16" FLAT HEAD SCREW
(2 used for the RAIL)
3S
The CAM SCREWS
must be here.
To Next Page
