Step 1
å
Assemble your unit on a carpeted fl oor or on the empty
carton to avoid scratching your unit or the fl oor.
å

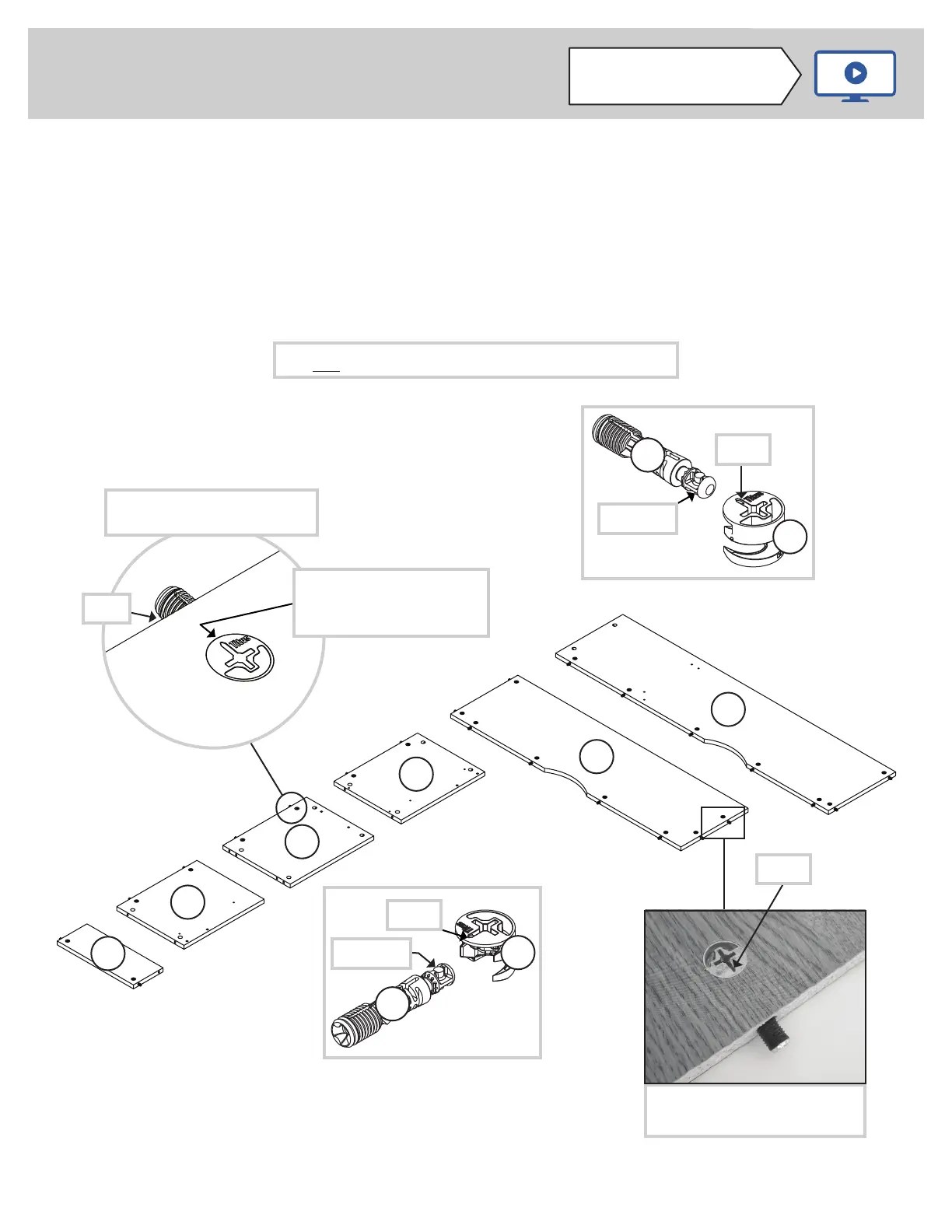

Push twenty-three HIDDEN CAMS (1F) into the ENDS (A
and B), UPRIGHT (C), MODESTY PANELS (E and G), and
BRACE (N). Then, insert the metal end of a CAM
DOWEL (2F) into each HIDDEN CAM.
Look for this icon. It means a
video assembly tip is available at
www.sauder.com/service/tips
425014 www.sauder.com/servicePage 6
A
C
B
E
G
N
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Do not tighten the HIDDEN CAMS in this step.
Arrow
1F
2F
(23 used)
Metal end
1F
2F
Metal end
Arrow
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
