PAV-SIPA50SM / PAV-SIPA50SMV2 Quick Reference Guide | 009-1658-03
Copyright 2021 Savant Systems Inc. | 210719
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
3 of 3

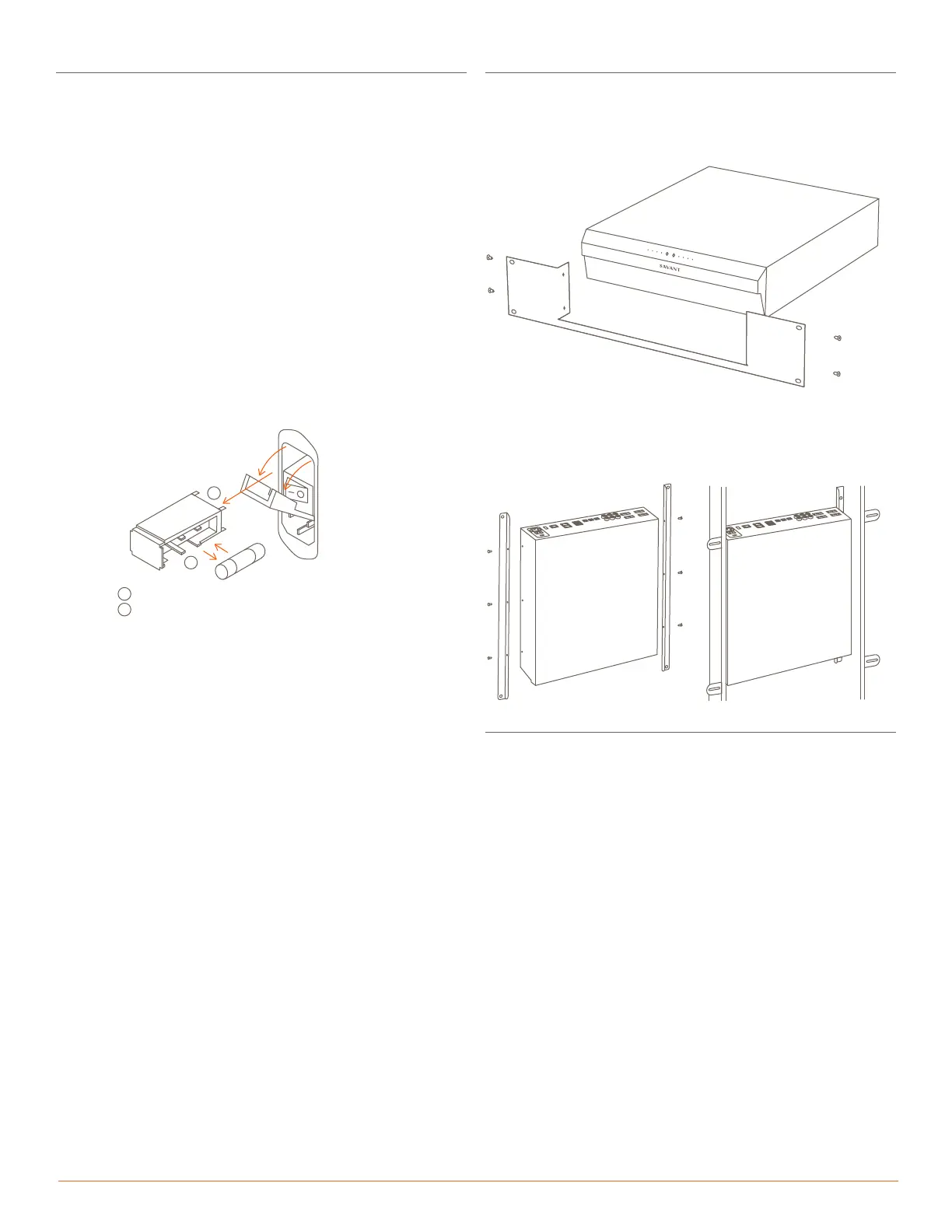

Replace the Fuse
ELECTRIC SHOCK HAZARD: Disconnect the unit from AC power
by removing the power cord from the AC outlet and the unit before
replacing the fuse.
IMPORTANT: The orientation of the cartridge within the unit and
location of the fuse within the cartridge are crucial to proper
operation. Make note of the orientation of the cartridge and the fuse
location within the cartridge before removing.
1. Disconnect the unit from AC power by removing the power cord.
2. Open the fuse cover on the AC power input using a flat head
screwdriver or similar thin flat head tool. This will allow access to
the fuse cartridges.
3. Using a flat head screwdriver or similar thin flat head tool, gently
loosen the cartridge and pull both cartridges out of the unit slowly.
As each cartridge is removed, make note of the orientation, as it is
important to proper operation.
TIP: Mark the chassis and fuse holder with a marker in order to align
when replacing.
4. Inspect both fuses and remove either or both if damage is
suspected.
5. Gently place the new fuse(s) in the cartridge and place the
cartridge part way into the receptacle aligning it as defined in the
diagram.
6. Gently press on the cartridge the rest of the way until it seats into
the terminals at the rear of the slot.
NOTE: If any resistance is encountered during seating the cartridge,
DO NOT apply more pressure. Stop pressing on the cartridge, remove
it, verify the orientation, and repeat step.
Additional Documentation
Refer to the following documents located on the Savant Customer
Community for additional information.
– Savant IP Audio Deployment Guide (009-1571-xx)
– Savant Media Server/Savant Music Supported Streaming Services
Application Note
The Spotify Software is subject to third party licenses found here:
https://www.spotify.com/connect/third-party-licenses.
Installation
Rack Installation
The Savant IP Audio 50 device can be mounted in a 2U rack style
enclosure and is compatible with all standard 19-inch National
Electrical Manufacturers Association (NEMA) rack mounts. The 2U
Rack Bracket needs to be attached prior to mounting. See Savant IP
Audio Deployment Guide for more information.
Enclosure Installation
The Savant IP Audio 50 device can be mounted to a Structured Media
Enclosure. The Enclosure Brackets need to be attached prior to
mounting. For proper ventilation, louvered enclosure doors are
recommended. See the Savant IP Audio Deployment Guide for more
information.
A
B
Connection Pins Towards Unit
Open Side of Cartridge Towards Power Switch
A
B
