Savant S2 Quick Reference Guide

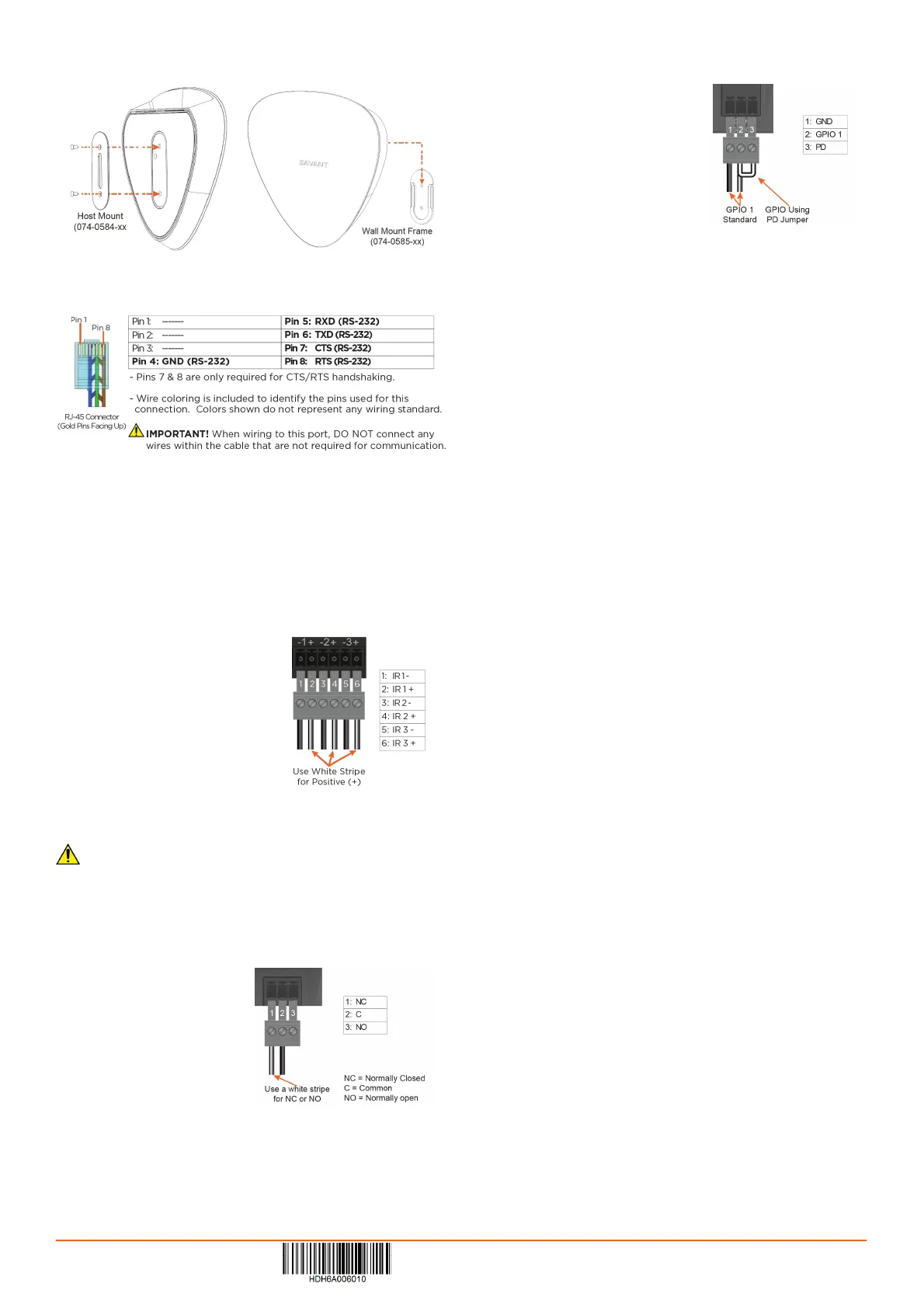

Wall Bracket Diagram
Wiring and Connections
RS-232 Wiring
Note:
CTS/RTS handshaking is supported for flow control based on the
profile used in the configuration.
RJ-45 to DB9 Adapters
Refer to the RS-232 Conversion to DB9 and RS-422/485 Pinout
Application Note located on the Savant Community for more
information on RJ-45 to DB9 adapters offered by Savant.
Note:
The SHC-S2 does not support RS-422/485.
IR Wiring
IR connections are made using 6-pin
Screw Down Plug-in Connectors
supplied with the Smart Host. The wire
slips into the hole and locks with a
screw located at the top of the
connector.
Note:
While not shown in the diagram above, IR connections 4 to 6
follow the same wiring as 1 to 3.
Note:
While not shown in the diagram above, IR connections 4 to 6
follow the same wiring as 1 to 3.
IMPORTANT! IR Wiring Precautions
•
Ensure that all IR emitters are within 15 feet (4.6 meters) from the
controllers location.
•
Use of 3rd party flashing IR emitters with Talk Back is not
recommended. These types of emitters can draw voltage away
from the IR signal that can degrade IR performance.
Relay Wiring
Relay ports are used when a
device is controlled via a
normally open (NO) or
normally closed (NC) relay.
GPIO Wiring
General Purpose Input/Outputs (GPIO)
are binary I/O ports used on Savant
controllers to trigger an action within
the system. Events can control a
device, such as turning on an amplifier
(output) or detecting a state change for
a device (input) to perform a workflow.
Pin 2 is used for input or output
depending on configuration.
GPIO Pull Down Resistor (PD) Usage
GPIO pins are configured as inputs and are pulled high to 12V while
the host is booting up. To make the GPIO signal low during a host
reboot and/or a power cycle, attach the GPIO 1 pin to the PD pin.
The PD pin is a 1K ohm pull down resistor (to signal ground)which
keeps the GPIO output below 0.8V during processor boot times.
Refreshing the IP Connection
•
Reset Network Settings via Rear Panel Button
•
Cycle Power
•
Hot Plug the Ethernet (LAN) Connection
Regulatory
FCC Regulations
15.19. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) these devices must accept any
interference received, including interferences that may cause
undesired operation.
15.21. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
15.105. This equipment has been tested and found to comply with
the limits for CLASS B digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications, However there is no guarantee that
interference will not occur in a particular installation, If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try correct the interference by one
or more of the following measures:
•
Reorient or relocate the receiving circuit different from that to which
receiver is connected.
•
Increase the separation between the equipment and the receiver.
•
Consult the dealer or experienced radio/TV technician for help.
IC Regulations
RSS-Gen 7.1.3. These devices comply with Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two
conditions: (1) These devices may not cause interference, and (2)
These devices must accept any interference, including interference
that may cause undesired operation of the device.
RSS-21- Annexe 9: A 9.4. Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Additional Information
Refer to the following documents located on the Savant Community
for additional information.
•
Savant Smart Host Deployment Guide
SHC-S2-00 | 009-1565-00 | 170925
45 Perseverance Way, Hyannis, MA 02601
Copyright © 2017 Savant Systems, LLC
2
of
2
savant.com | 508.683.2500
