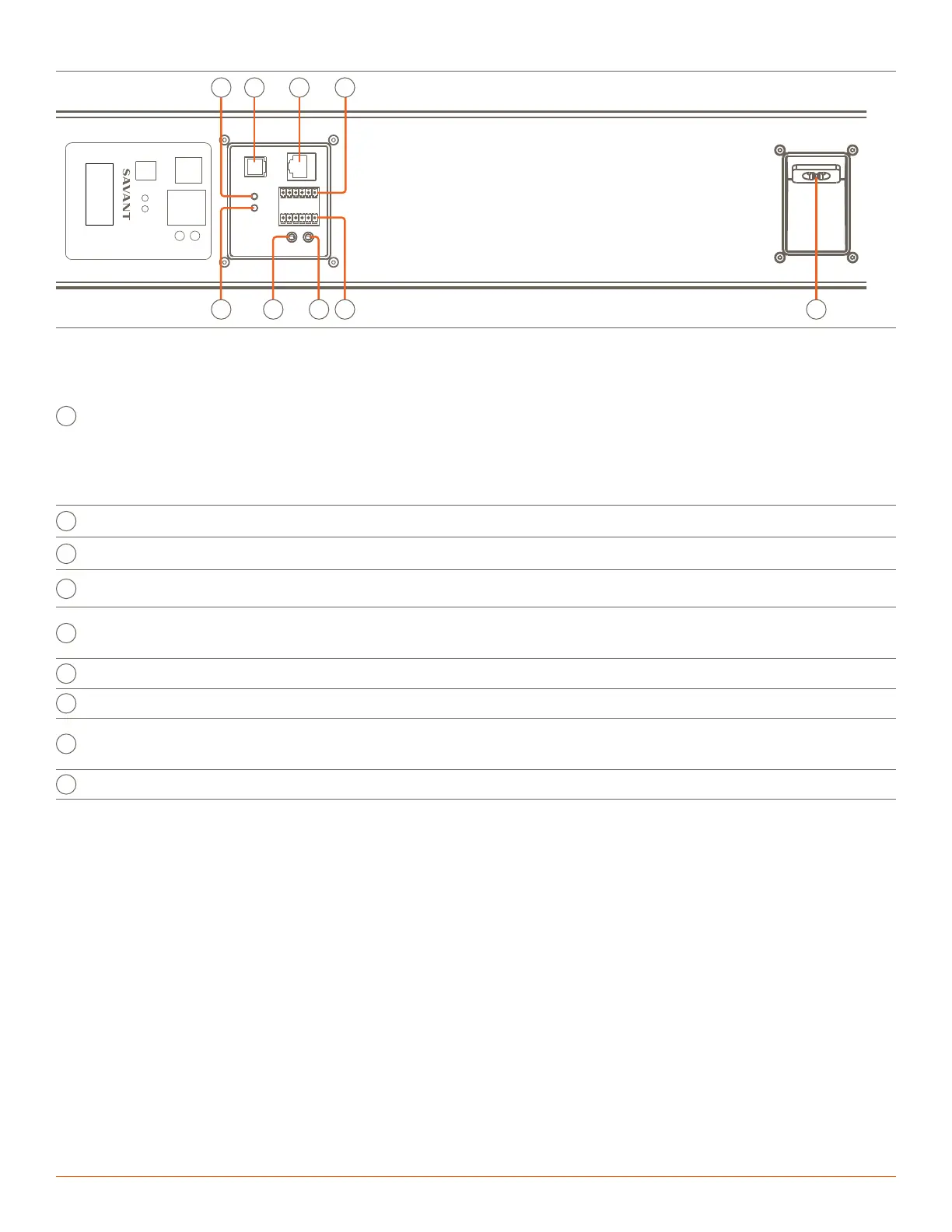

Rear Panel
100-240 V~ 50-60 HZ 2.2A
Smart Audio Soundbar
IR
Ethernet
ResetStatus
Digital Audio
In
RS232
GND
TX
RX
GND
TX
RX
2
1
-
1
+
-
2
+
-
3
+
IR
Learner
Sub
Out
A B
C D
E
F
G
H
I
A
Status LED
O: Embedded processor is resetting, or is powered up, and is booting the embedded firmware.
Green: Host has established communications with the embedded system.
Green Blinking: Embedded system is ready, but no communication has been established with the host.
Red: Host has determined the firmware needs to be updated, but a problem occurred during the process that will
initiate a reset.
Red Blinking: Embedded firmware is running, but has not received a DHCP IP Address.
Amber: Host is updating the embedded firmware.
Amber Blinking: Embedded system has a valid link local IP Address and is connecting to the host.
Hardware Failure: If a hardware failure occurs, the status LED indication will be interrupted every three seconds with
a solid red indication. For example, if the LED is blinking green when a hardware failure occurs, the LED will alternate
between blinking green and solid red at three-second intervals.
B
Digital Audio
Input
Digital optical audio inputs (TOSLink).
Inputs support up to 192kHz/24-bit digital audio and up to 5.1 encoded audio.
C
Ethernet
8-pin RJ-45 port 10/100 Base-T auto-negotiating port.
Supports Audio Video Bridging (AVB).
D
Serial Ports
(2) RS-232 Ports
Uses 6-pin Screw down plug-in connection. Transmits and receives serial data to and from serial controllable devices.
E
Reset
Resets the network.
Hold Reset Button for 5 seconds while powered on to clear network settings. Status LED will rapidly blink red when
reset is complete.
F
IR Learner 3.5 mm connection, for use with the included IR learner (Studio Only).
G
Sub Out 3.5 mm analog connection, Direct line level, 2.1 V
RMS
max.
H
IR Ports
(3) IR Ports
Uses 6-pin IR Connectors to send IR signals to control devices with an IR input or IR receiver via an IR flasher (5V
tolerant only).
I
Power Input 120/240V AC (50/60 Hz)
