Savant SSC-0012 User Manual

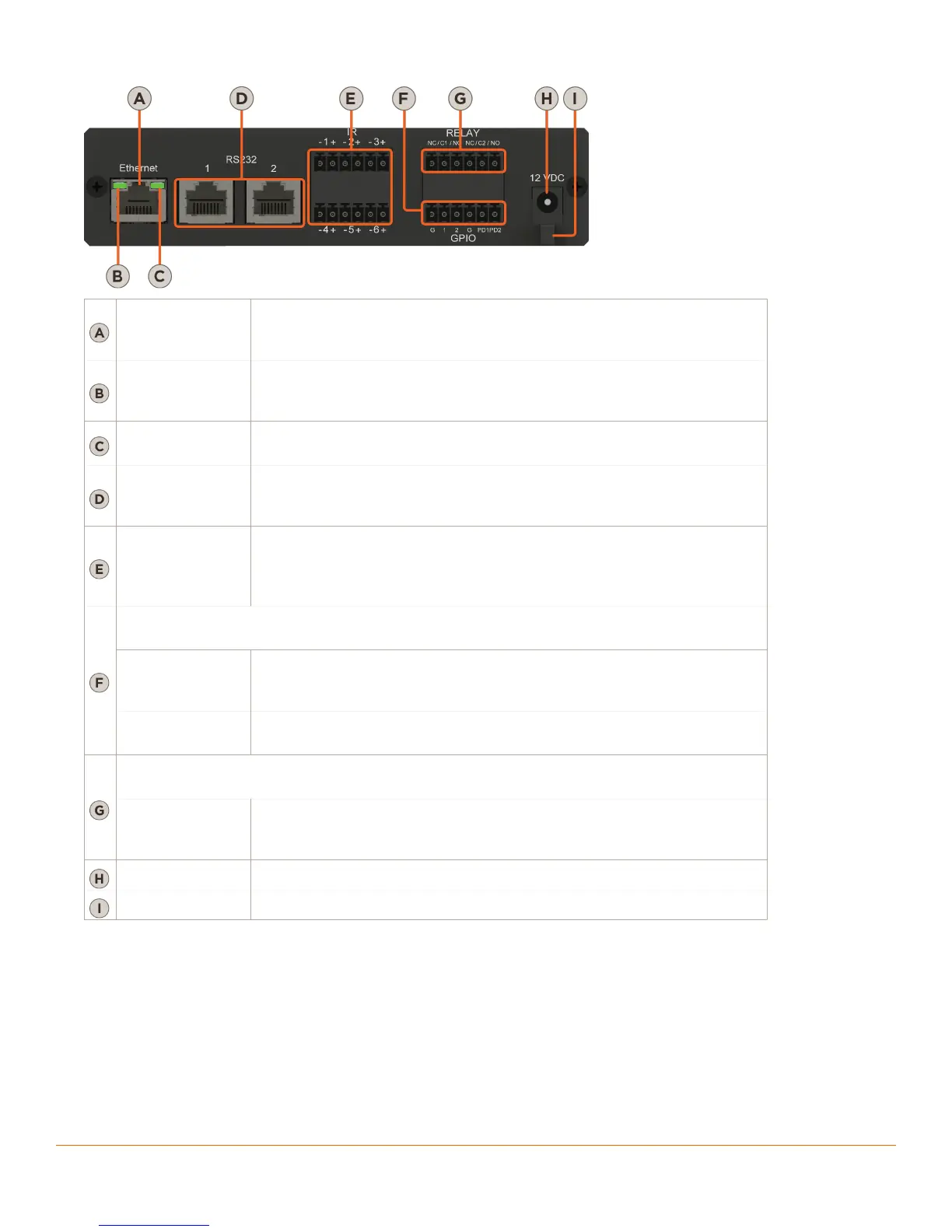

Rear Panel
Ethernet
10/100 Base-T auto-negotiating port with Link/Activity LEDs:
8-pin RJ-45 female.
See items B and C for LED functionality.
Link LED
Off: Ethernet link is not established.
Green Solid: Ethernet link is established.
Green Blinking: Ethernet activity is occurring.
Data Rate LED
Off: 10 Mbps data rate
Green: 100 Mbps data rate
RS-232
Used to transmit and receive serial binary data to and from RS-232
controllable devices. Ports 1 & 2 support CTS/RTS handshaking. 8-pin
RJ-45 female. See RS-232 Pinouts.
IR
Used to send IR signals to control devices with an IR input or IR receiver
via an IR flasher (5V tolerant only). 6-pin Screw Down Plug-in
Connector. See IR Wiring for important precautions regarding IR
functionality before making any connections.
GPIO (General Purpose Input and Output Ports)- 6-pin Screw Down Plug-in Connector.
See GPIO Wiring for pinouts.
GPIO (General Purpose Input and Output Ports)- 6-pin Screw Down Plug-in Connector.
See GPIO Wiring for pinouts.
GPIO Input
When configured as an input, the processor will look for a low (<0.8V
DC) or high (>2.4V DC ) state.
Minimum 0V DC / Maximum 12V DC
GPIO Output
When configured as an output, the port provides a binary output of
0-12V DC 150mA max.
Normally Open / Normally Closed - Relays
6-pin Screw Down Plug-in Connector
Normally Open / Normally Closed - Relays
6-pin Screw Down Plug-in Connector
Relay
Dry contacts (open/closed) to control devices requiring basic on/off
operation. DC Voltage Max: 30V DC 1A.
6-pin Screw Down Plug-in Connector
Input Power
12V DC 1.6A – Connect to included power supply.
Cable Lance
Use with included cable tie to secure power supply connection.
SmartControl 12 Controller Deployment Guide
Copyright © 2016 Savant Systems, LLC
009-1268-01 | 160308
6
of
16
