Landing gate/door details
Landing gate/door details are specific to each job site. Be sure to refer to your site-specific
installation drawings.
There are two options that can be used when preparing for installation of the gate (or door with
sill angle). Figure 7 illustrates the two options for a gate. Refer to the Installation Guide for details
on installing the landing gate or door.
• Option 1 – Notch out the landing so that the gate angle bracket (or door sill angle) is flush with
the vertical landing surface.
• Option 2 – Install a 1/4” fascia panel to fill in the gap in the vertical landing surface from
underneath the gate angle bracket (or door sill angle) down to the floor/ground. If your site has
a hoistway or pit, be sure to add 1/4” to those dimensions to account for the 1/4” fascia panel.

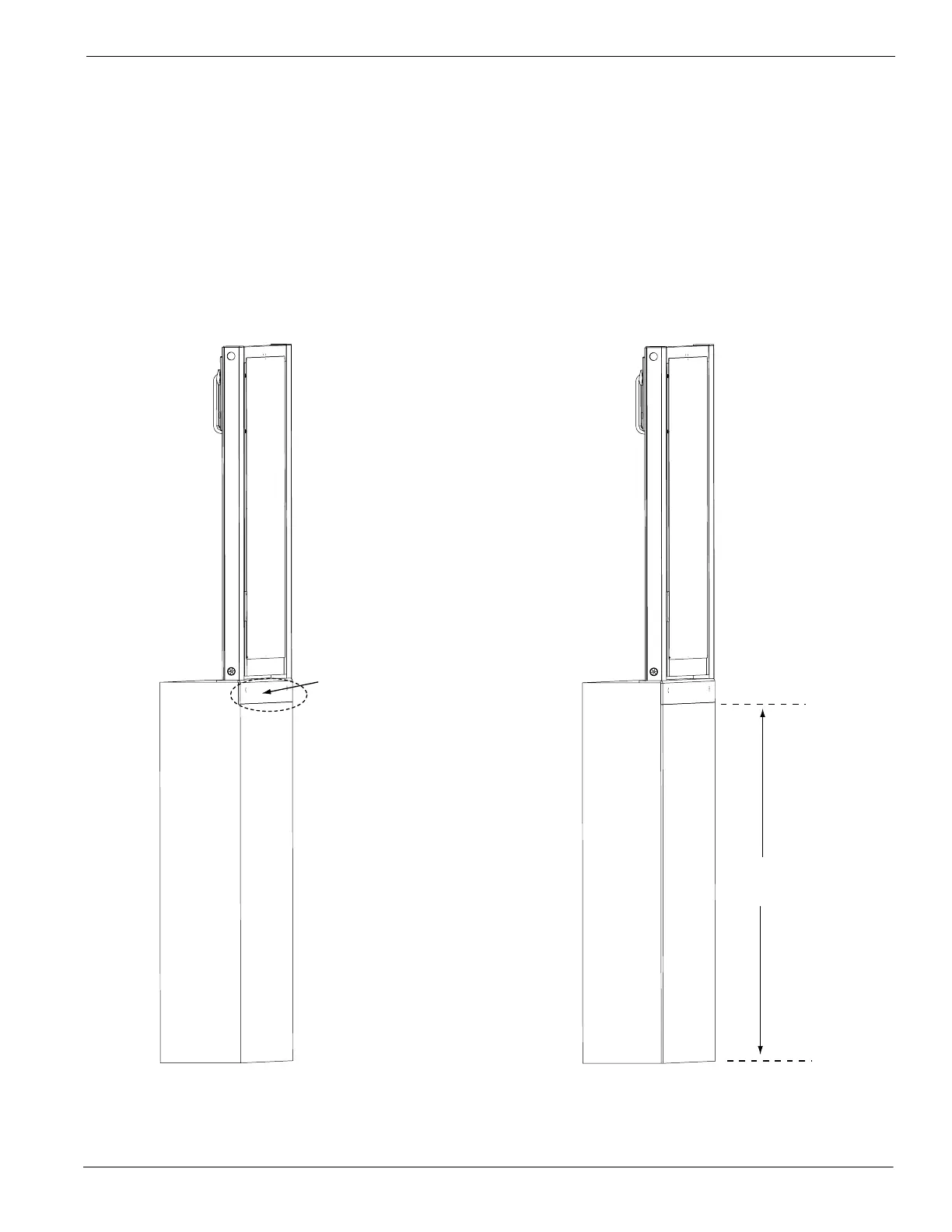

Figure 7:
'ATE
,ANDING
&ASCIA
PANEL
vPLYWOOD
'ATE
,ANDING
.OTCHOUTLANDINGINMM
SOGATEANGLEBRACKETISFLUSHWITH
VERTICALLANDINGSURFACE
Notch out landing to install gate
Install fascia panel for gate
Options used when installing a gate
