SawStop PCS31230 - Powering On and Starting Motor

SawStop 10” Professional Cabinet Saw 39
Preparing Your Saw
Fig. 60
Preparing Your Saw for Use

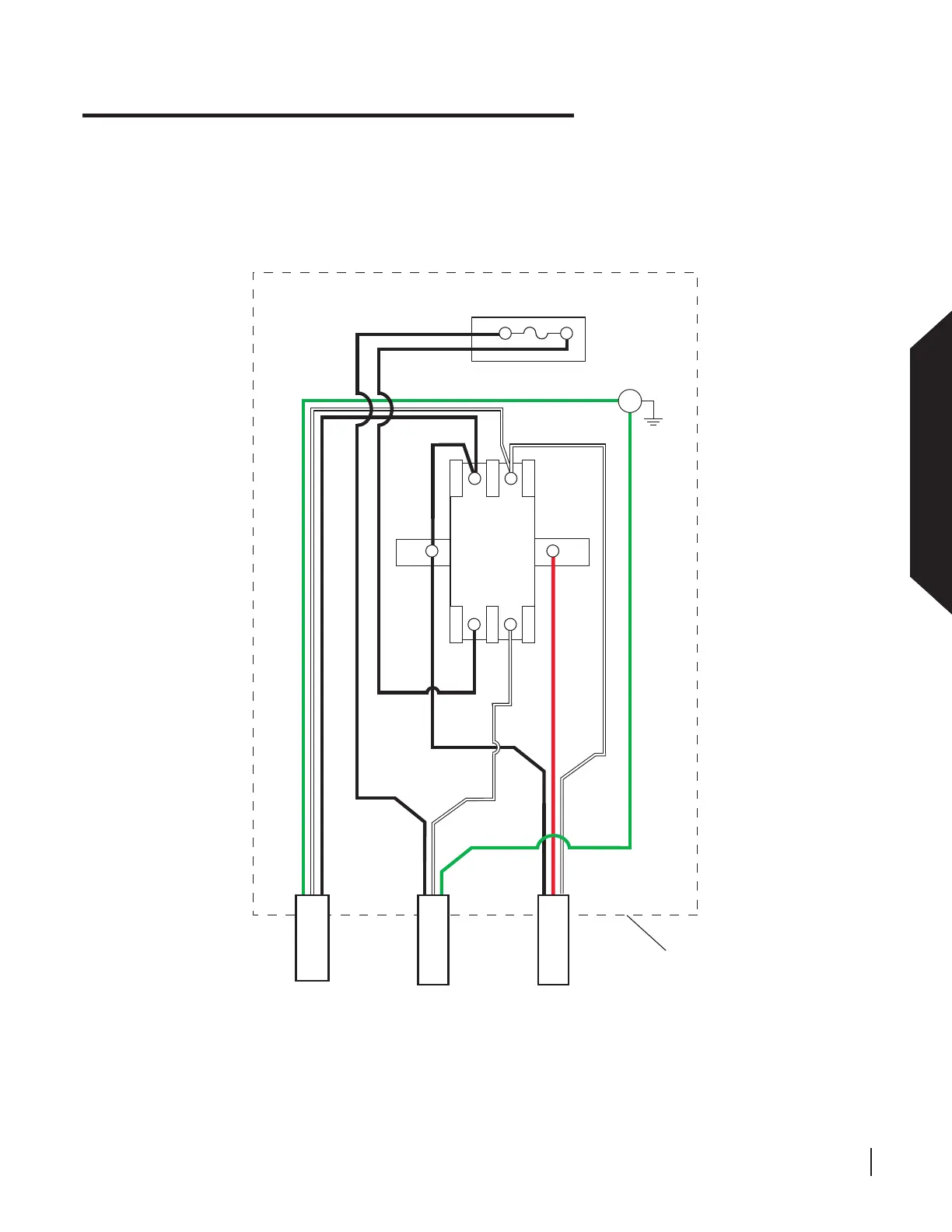

Contactor Box Wiring Diagram:
Green
Green
White
White
T1 T2
L1 L2
A2
COIL
THERMAL CIRCUIT
BREAKER
MOTOR
CABLE
POWER
CABLE
CONTACTOR BOX
SWITCHBOX
CABLE
A1
COIL
CONTACTOR
White
Black
Black
Red
Black
GROUND
