The hydraulic unit reservoir has been filled at the factory and should be ready for
immediate use. However, should air have become trapped in the system, it may need
to be purged before use. See “System Air Purge” for reference.
1. Make sure the jack and vehicle are on a hard level surface
2. Always set the vehicle handbrake and chock the wheels
3. Consult the vehicle owner’s manual to ascertain the location of jacking points and
position the jack beneath the lift point
4. Turn the release valve clockwise (Fig 3) to the closed position but do not over
tighten
5. To raise the vehicle place the handle into the socket and pump up and down (Fig 2)
6. Place jack stands beneath the vehicle at locations recommended by the vehicle
manufacturer. Do not work under the vehicle without the use of jack stands. Jacks
are not designed to maintain heavy loads for long periods of time. Do not attempt
to place jack stands simultaneously under both ends of a vehicle or along one side
of a vehicle
7. Turn the release valve slowly counter clockwise (Fig 4) to lower the vehicle onto
the jack stands
54
RAISING A VEHICLE
Monthly maintenance is recommended. Lubrication is critical to jacks as they support
heavy loads. Any restriction due to dirt, rust or corrosion can cause either slow
movement or rapid jerks damaging the internal components. The following steps are
designed to keep the jack maintained and operational.
1. Lubricate the ram, linkages, saddle and pump mechanism with light oil
2. Visually inspect the jack for cracked welds, bent, loose or missing parts and
hydraulic oil leaks
3. If this jack is found to be damaged in any way or operating abnormally, it should
be removed from service until repaired by an authorised service centre.
4. Clean all surfaces and maintain all labels and warnings
5. Check and maintain the ram oil level
6. Check the ram every 3 months for signs of rust or corrosion. Clean as needed and
wipe with an oily cloth. When not in use always leave the saddle and ram fully
retracted
Always store the jack in the fully lowered position. This will help protect critical areas
from corrosion. Do not use brake or transmission fluids or regular motor oil as they
can damage the seals. Always refill with hydraulic jack oil. Keep the trolley jack clean
with a dry clean cloth. Lubricating oil can help movement on pivot points. When
storing, always store on all fours wheels in a horizontal position to prevent leakage of
the hydraulic oil. Always check equipment before use. If damaged do not use.
MAINTENANCE

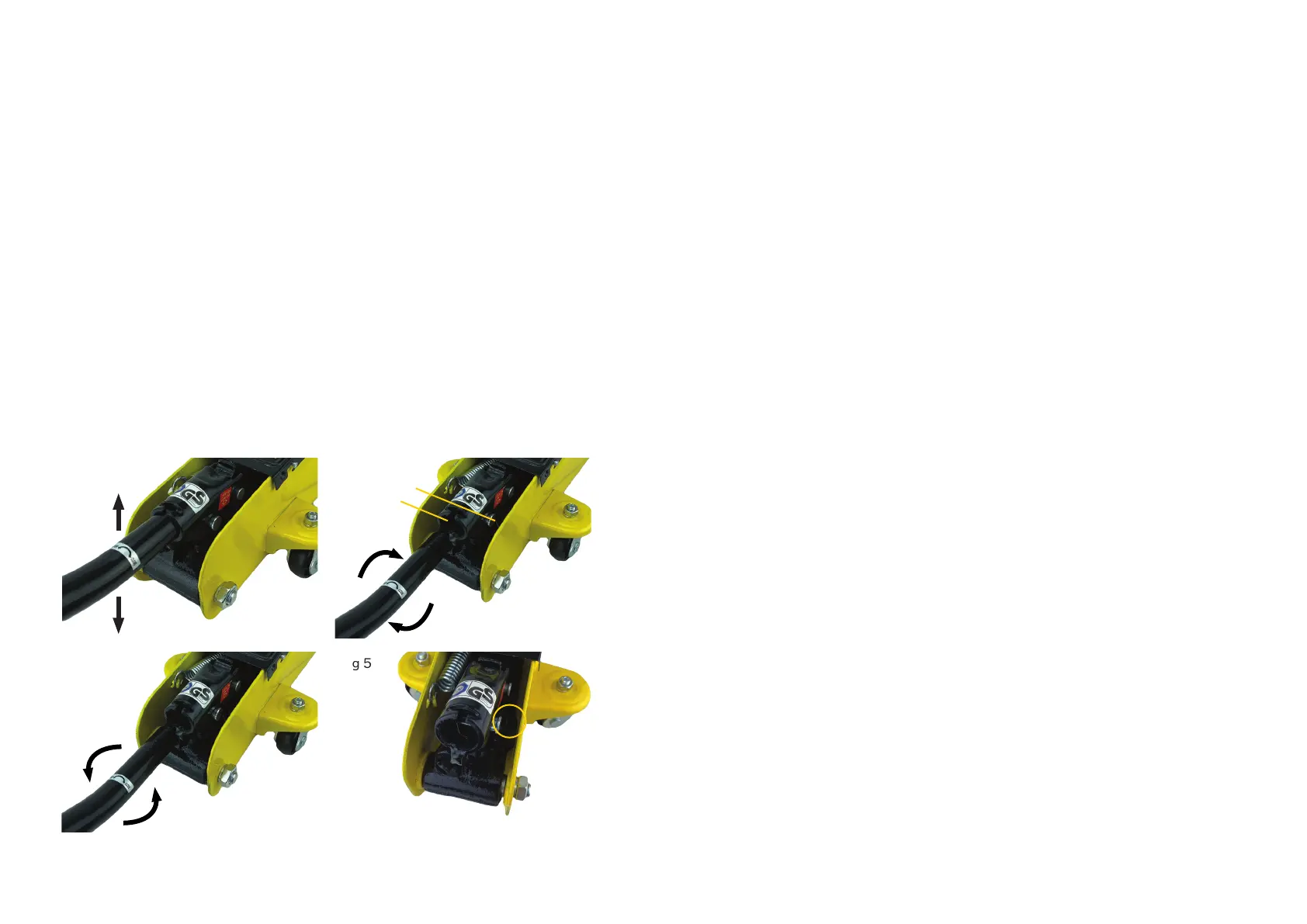

Fig 2 Fig 3
Air Vent Valve
Handle Socket
Clockwise opens valve
Fig 4 Fig 5
Anti-Clockwise closes valve
Warning - Never adjust the safety valve setting (Fig 5). This is factory set and is
dangerous to change.
