SBS H2 - Installation

SBS-H2 Users Manual, Rev. 07-17-TNEMH2 Page 8 July 2017
7.0 Installation
WARNING
AC voltage relay terminals (120/240 Vac) are located within this detector, presenting a hazard to
service technicians. Only qualified technicians should open the detector case and service the internal
circuits. Ensure power is removed from the detector relays prior to servicing the unit. Failure to do so
may result in injury or death.

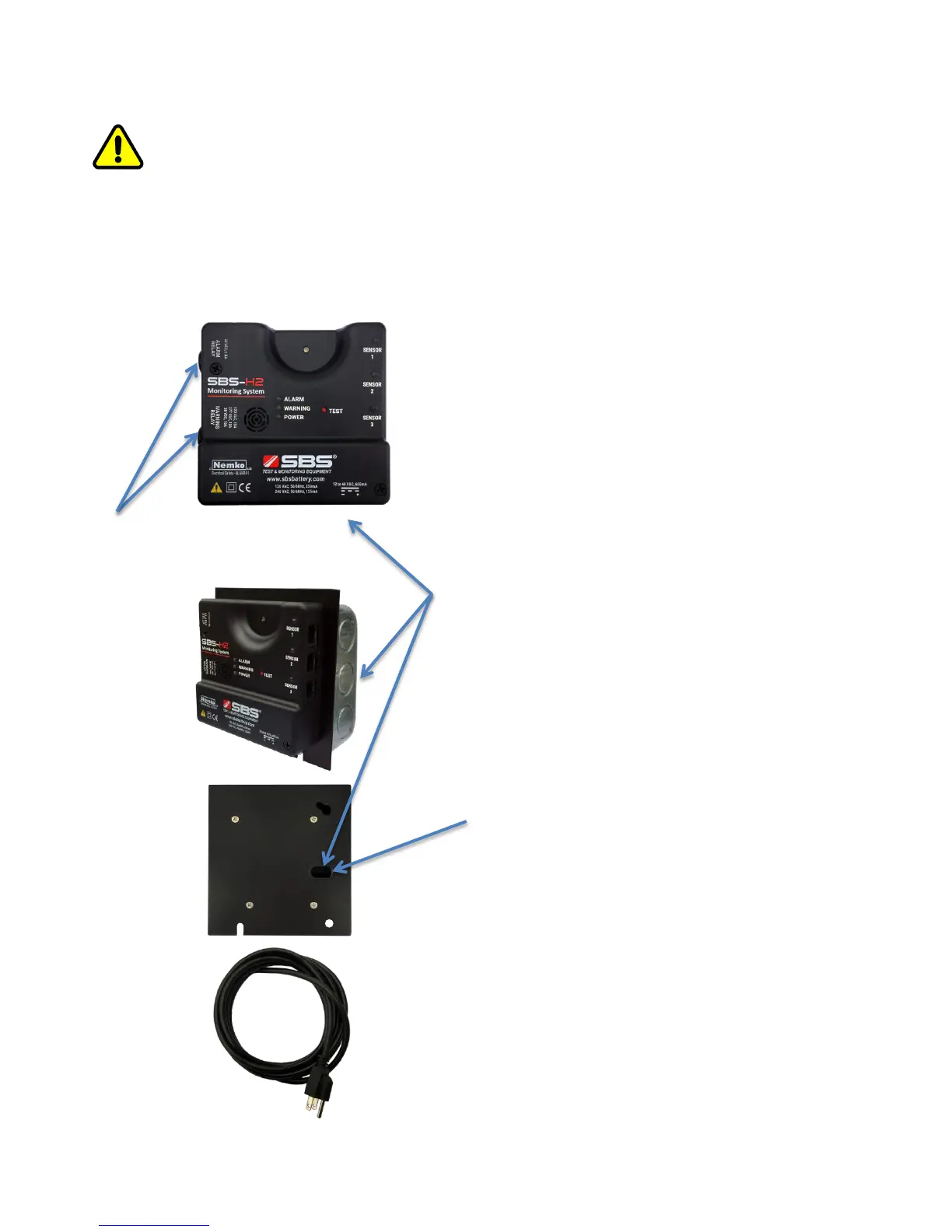

Mounting and Power Options
Alarm Wiring
H2-JB Junction Box Mountable (optional)
Mounts to a standard, 4 11/16" x 4 11/16"
2-gang junction box
Hardwire Option
Run AC and/or DC power and alarm wires
through back of the unit, into the gang box and
out through conduit.
E190399 AC Line Cord
3-prong grounded AC cord, 18-3 AWG
Wall Mountable
Integrated back mounting plate allows user
to easily mount directly to any wall using
3/16" screws (not included).
Wiring
Power and alarm wires can run through the
sides of the unit.
Input Power
