9
Top vent installation
Mounting of the flue collar for top vent.
Turn the flue collar around and fix the brackets under the top plate.
Tighten the two screws with the delivered hexagon spanner (tighten well)

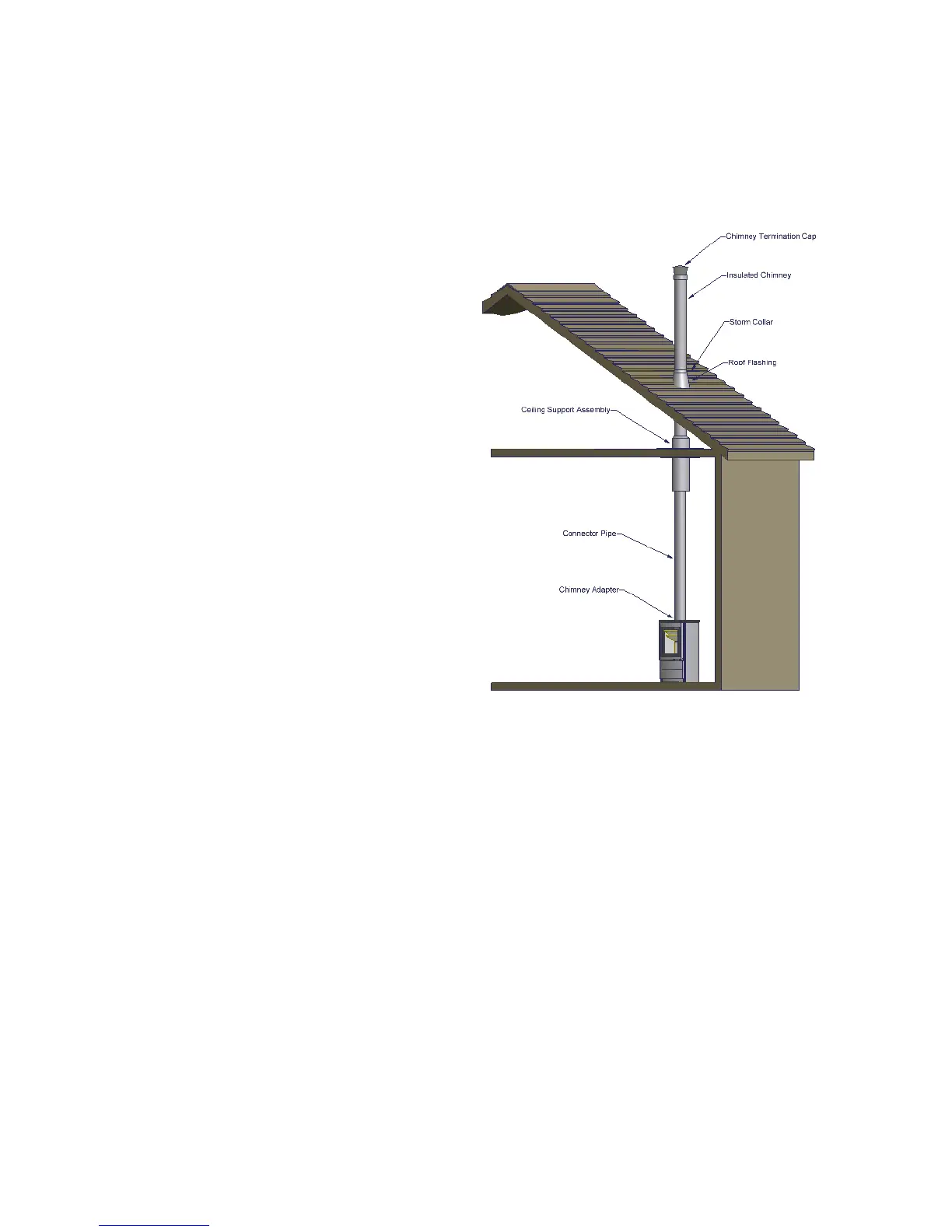

Required installation components:
•
Chimney cap
•
Insulated chimney
•
Storm collar
•
Roof flashing
• Ceiling support box or joist
shield/fire stop spacer
• Chimney connector pipe
• Chimney connector adapter
