Unscrew the stove’s heat shield and remove it.
Using cutting pliers, cut off the cover plate from the rear
plate and at its securing points
Fasten the connecting piece with screws and replace
the top plate
Lift the top plate off the stove
Mount the ceramic gasket on the
connecting piece
4 pcs. M5X10 mm screws

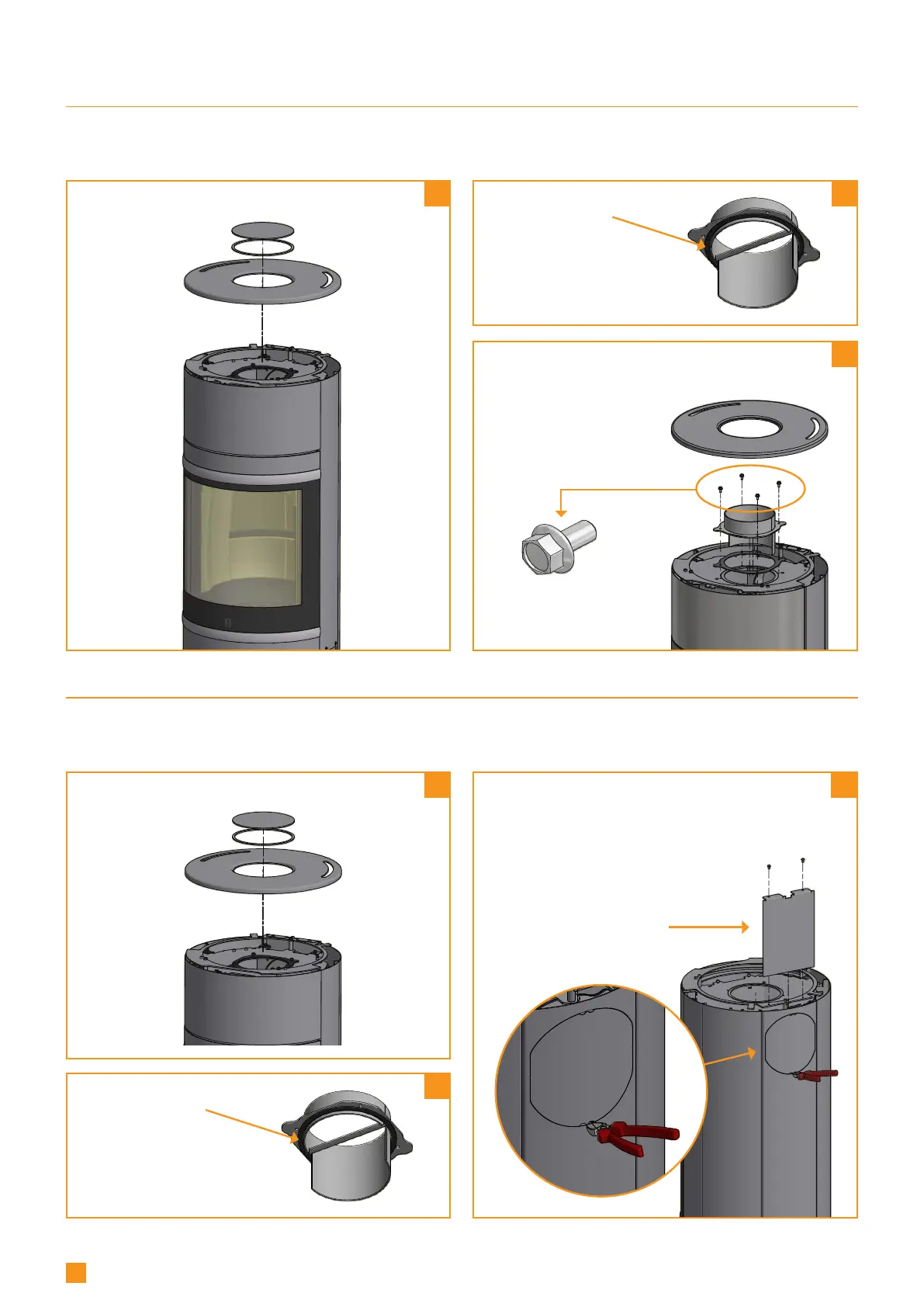

FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The gasket for the flue connection piece, flue connection piece and screws can be found in the stove’s combustion chamber.
Mount the ceramic gasket on the
connecting piece
Lift the top plate off the stove
FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET
The stove is prepared from the factory for top outlet.
The gasket for the flue connection piece, flue connection piece and screws can be found in the stove’s combustion chamber.
Heat shield
IN THE TOP OUTLET
