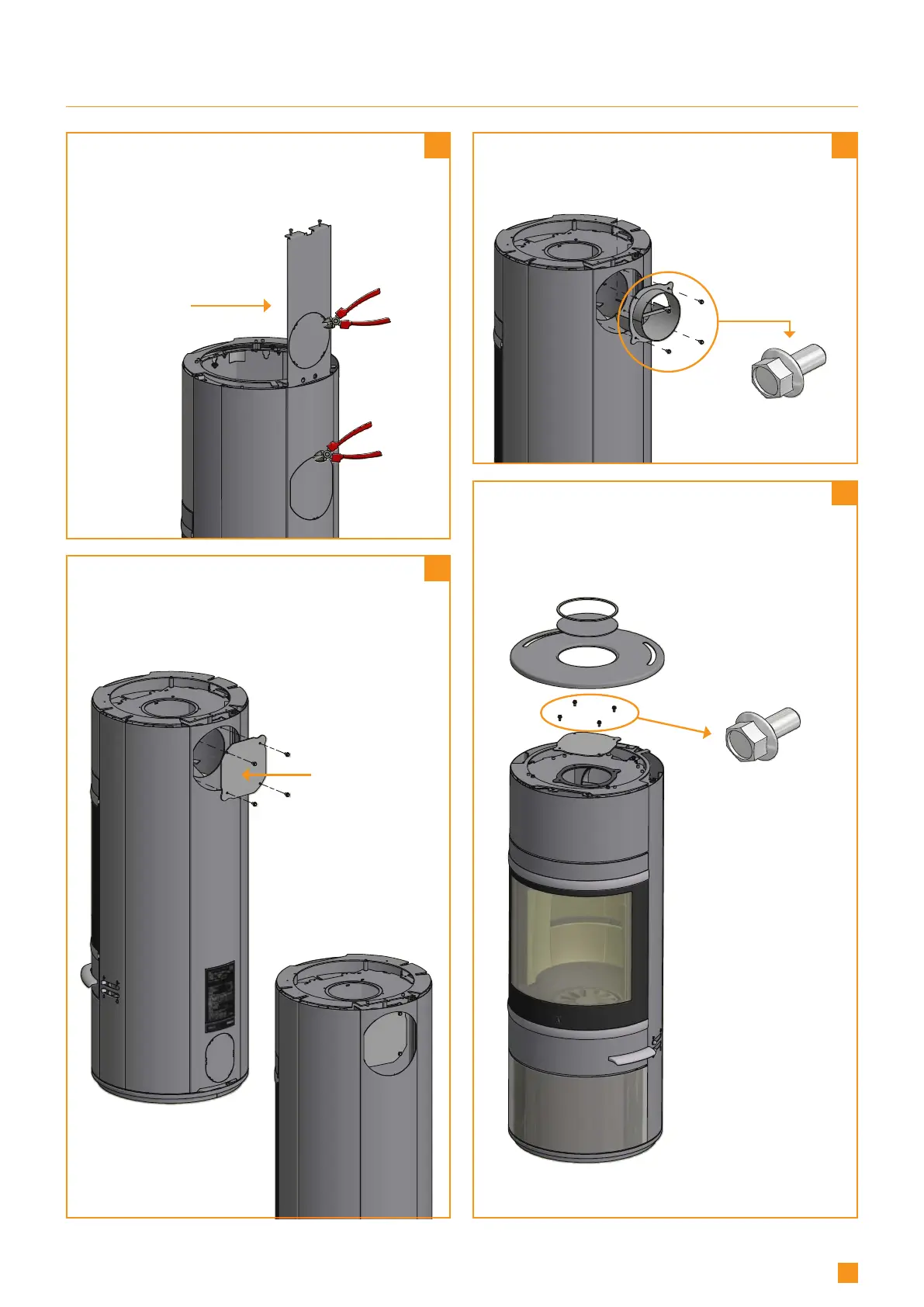

Remove the cover.
This is to be used later as a seal and cover at the top
of the smoke outlet
Fit the cover and tighten it.
Replace the top plate
Fit the connecting piece with the four screws found
in the stove’s ash drawer
Important! Only Scan 83 Maxi:
Using cutting pliers, cut off the cover plate from the
rear plate and the heat shield at its securing points
FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET
4 pcs. M5X10 mm screws
4 pcs. M5X10 mm screws
Heat shield
remount
Cover
