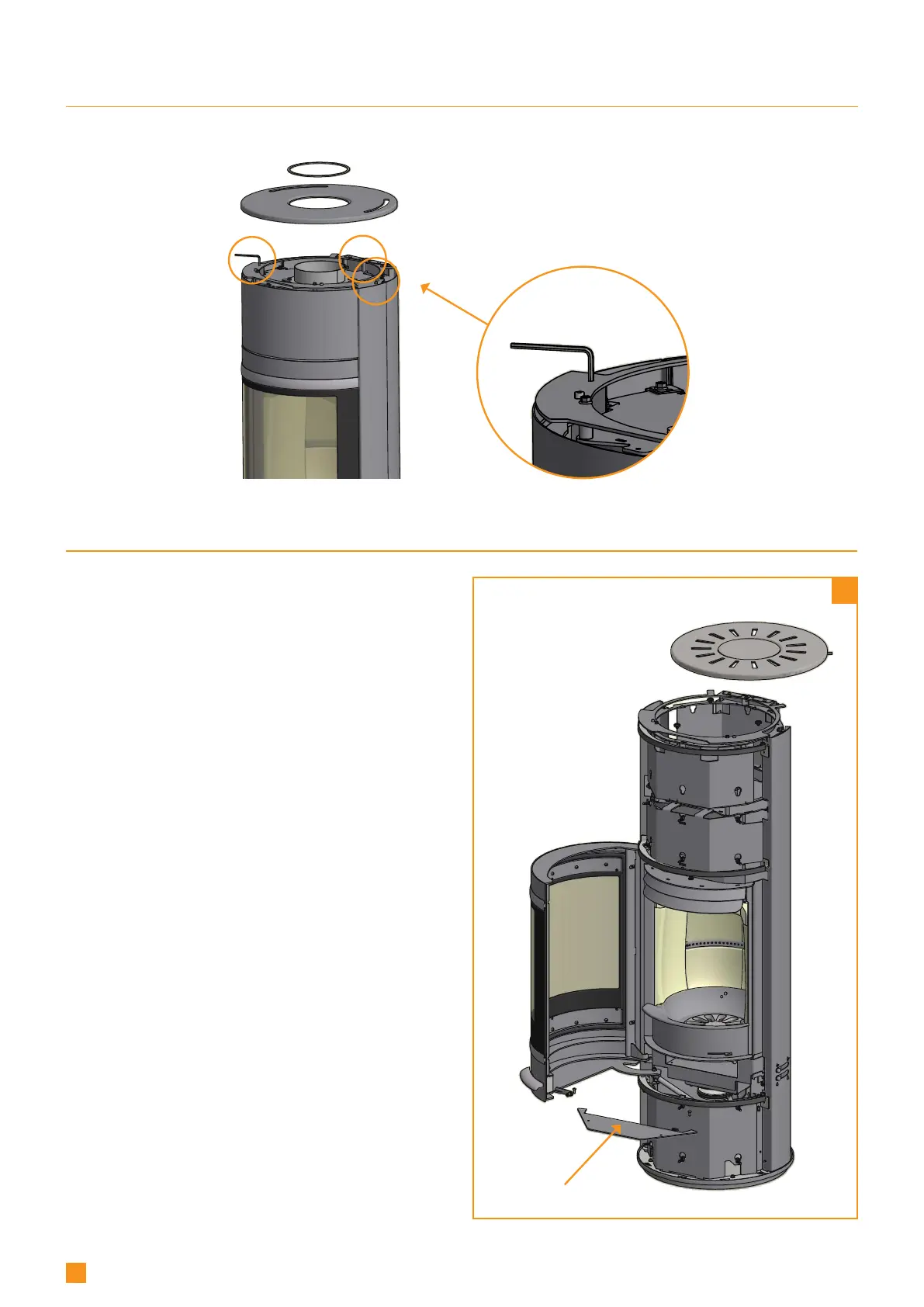

HEIGHT ADJUSTMENT OF TOP PLATE
Use the tree adjustment screws to level the top plate.
FITTING THE SOAPSTONES
Scan 83-5, 83-6, 83-7 and 83-8 are delivered with loose soap-
stones for mounting on the sides of the stove.
Soapstones are made from a natural material and may there-
fore vary in structure and form..
Each soapstone stone must be mounted with distance bush-
ings and screws which are already mounted in the stones.
Remove the steel top plate and the cover plate in the
stove’s base
Cover plate in base
