Scanse Sweep V1 - Overview of Interfaces; Connector

SPECIFICATIONS USER’S MANUAL SWEEP V1.0
3
Copyright ©2014-2017 Scanse LLC - www.scanse.io
Sweep can be connected to low level micro
controllers directly using its serial port, or to a PC
using the provided USB to serial converter.

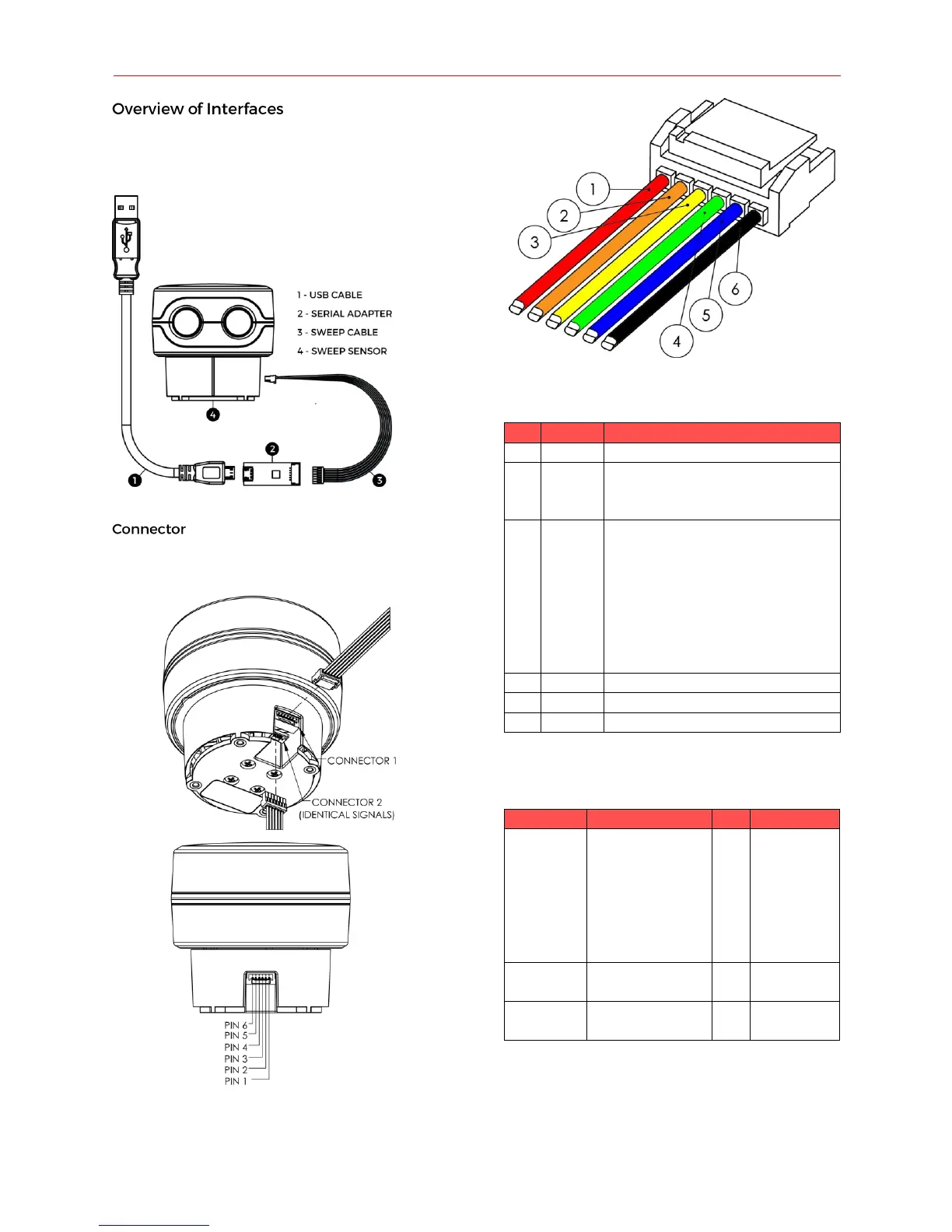

Figure 4, Sweep Cable Diagram
Sweep has two serial port connectors with identical
signals. This allows for more mounting options.
DRAWINGS ARE NOT TO SCALE
Figure 5, Sweep Connector Diagram
Figure 6, Sweep Pigtail Cable Connector Detail
Table 1, Pin Definition
Pin
Color
Function
1
Red
5VDC ±0.5VDC
2
Orange
Power enable (internal pull-up).
Pull down to put device in sleep
mode.
3
Yellow
Sync/Device Ready
Goes high when first range
measurement of new scan is
completed, then goes low when
second range measurement is
completed. Remains low until next
rotation. Line is only active when
scanning and low when not.
4
Green
UART RX 3.3V (5V compatible)
5
Blue
UART TX 3.3V (5V compatible)
6
Black
Ground (-)
You can create your own cable if needed for your
application. These components are readily available:
Part
Description
Mfg.
Part No.
Connector
Housing
6-Position,
rectangular
housing, latch-
lock connector
receptacle with
1.25 mm
(0.049 in.) pitch.
JST
GHR-06V-S
Connector
terminal
26-30 AWG crimp
socket connector
JST
SSHL-002T-
P0.2
Wire
UL 1061 26 AWG
stranded copper
N/A
N/A
