Scantool SC Series - Page 38

38

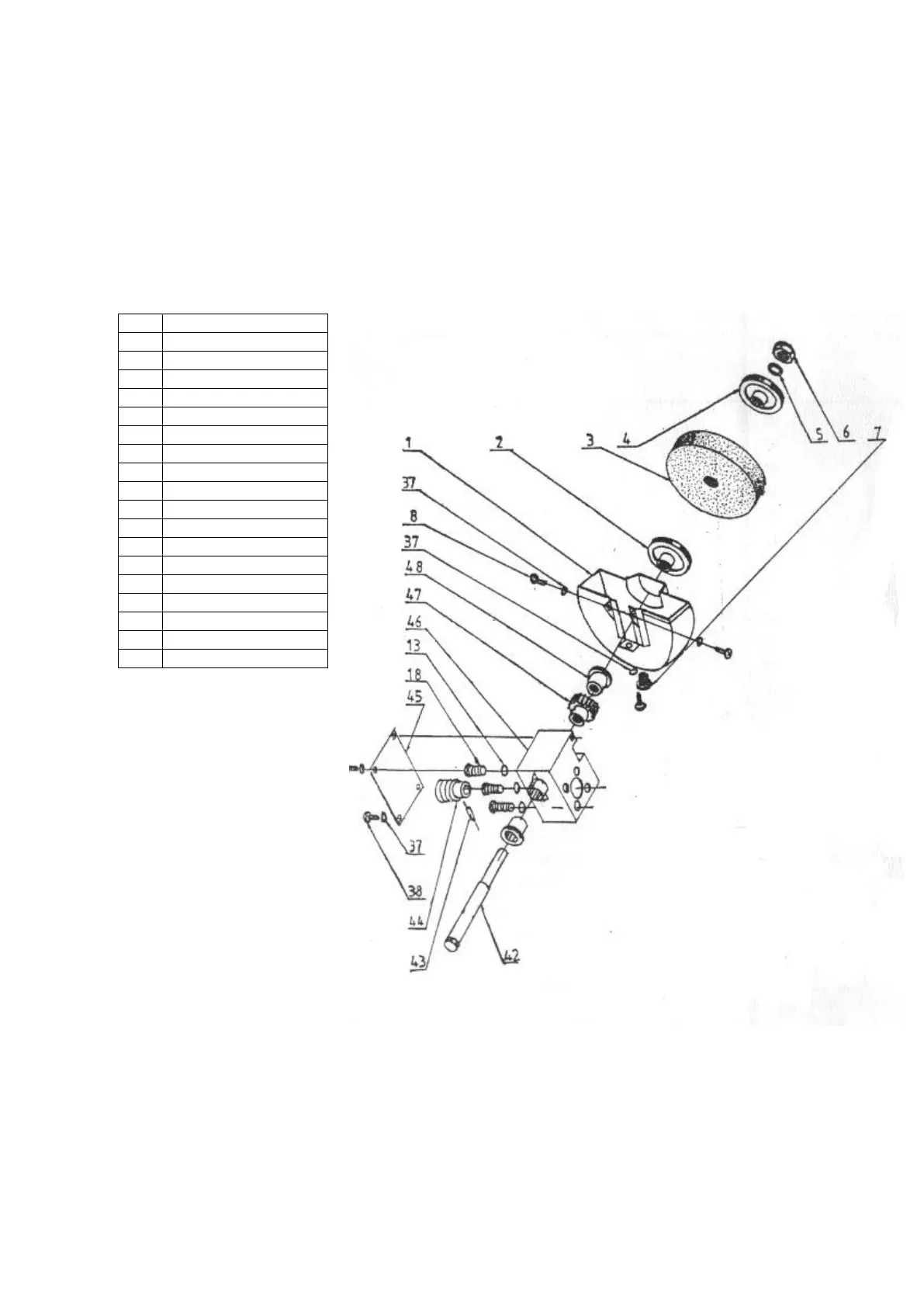

5.3. Split Zeichnung vom SCANTOOL SC 200 Combi
1
Wet Wheel Guard
2
Flange II
3
Wet Wheel
4
Flange I
5
Washer 12
6
Nut M12
7
Plug
8
Screw M4x12
13
Washer 5
18
Screw M5x12
37
Washer 4
38
Screw M4x8
42
Cear shaft
43
Pin 5x25
44
Worm
45
Case Cover
46
Case Body
47
Gear
48
Axle Sleeve
