SCEPTRE UMS Series UHD Display User Manual

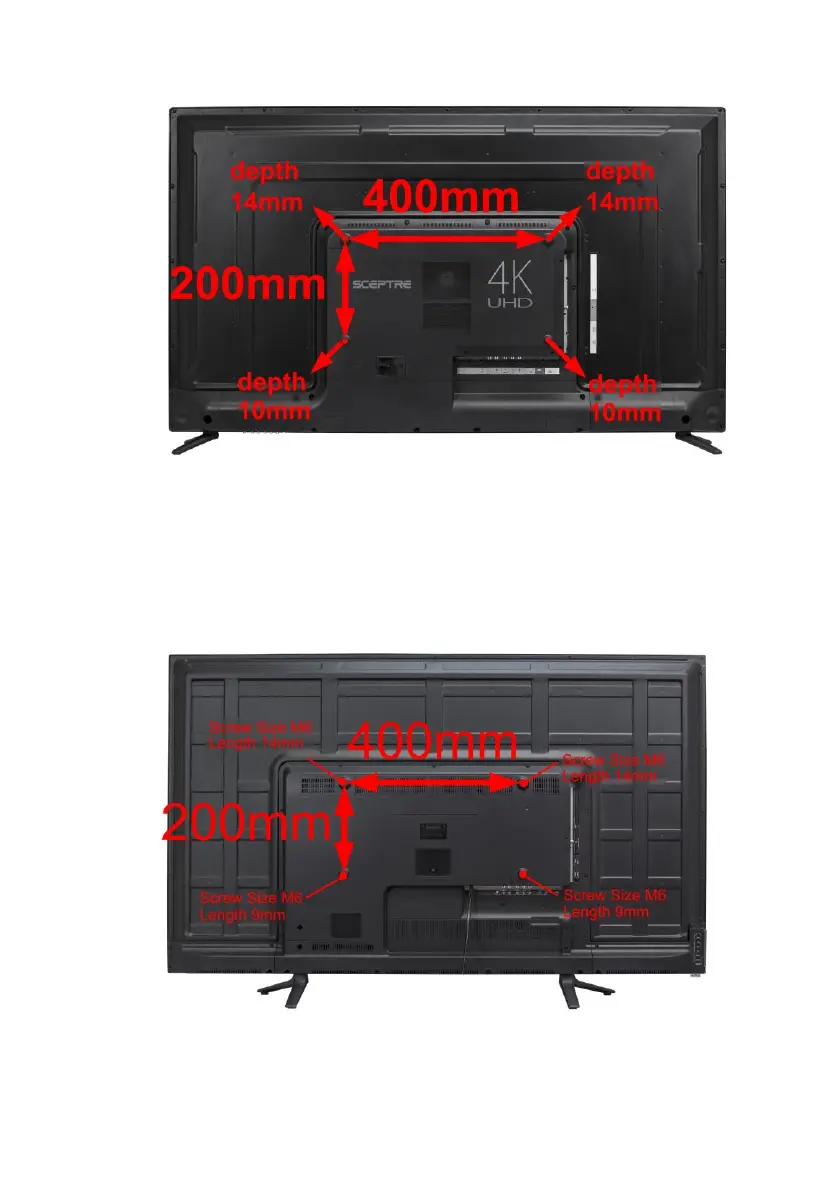

Rear View Mounting Pattern For U515CV-UMS
Mounting Specification: 400mm x 200mm using 4 screws sized at M6 (not
included). Length of screw should not exceed 14mm for the upper two and 10mm
for the bottom two. Please Note: The length of screw refers to how deep the screw
can go inside the mounting holes. When you’re buying screws, you should add the
original length to the thickness of your mounting plate in order to get the total screw
length.
Rear View Mounting Pattern For U515CV-UMS
Mounting Specification: 400mm x 200mm using 4 screws sized at M6 (not
included). Top two mounting holes are 14mm deep and the bottom two mounting
holes are 9mm deep.

Sceptre UMS Series Specifications

General

Brand	Sceptre
Model	UMS Series
Category	LCD TV
Language	English
