FSR Series
Page | 3

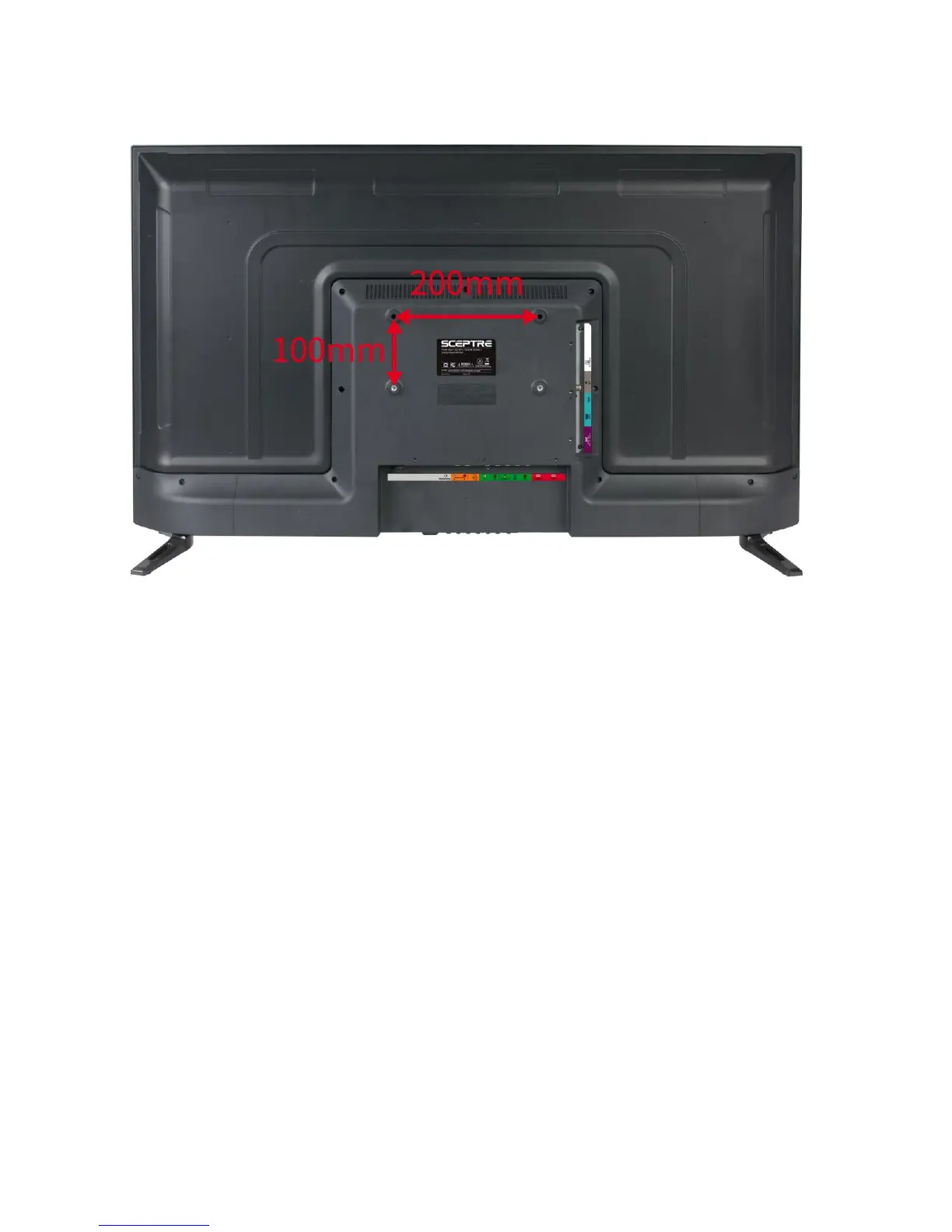

Rear View Mounting Pattern
Mounting Specification: 200mm x 100mm using screw size M6. Length of screw should not
exceed 8mm. Please Note: The 8mm length of screw refers to how deep the screw can go inside
the mounting holes. When you’re buying screws, you should add the original 10mm to the
thickness of your mounting plate in order to get the total screw length.
