CRICKET FLOOR STAND
Assembly InstructIons

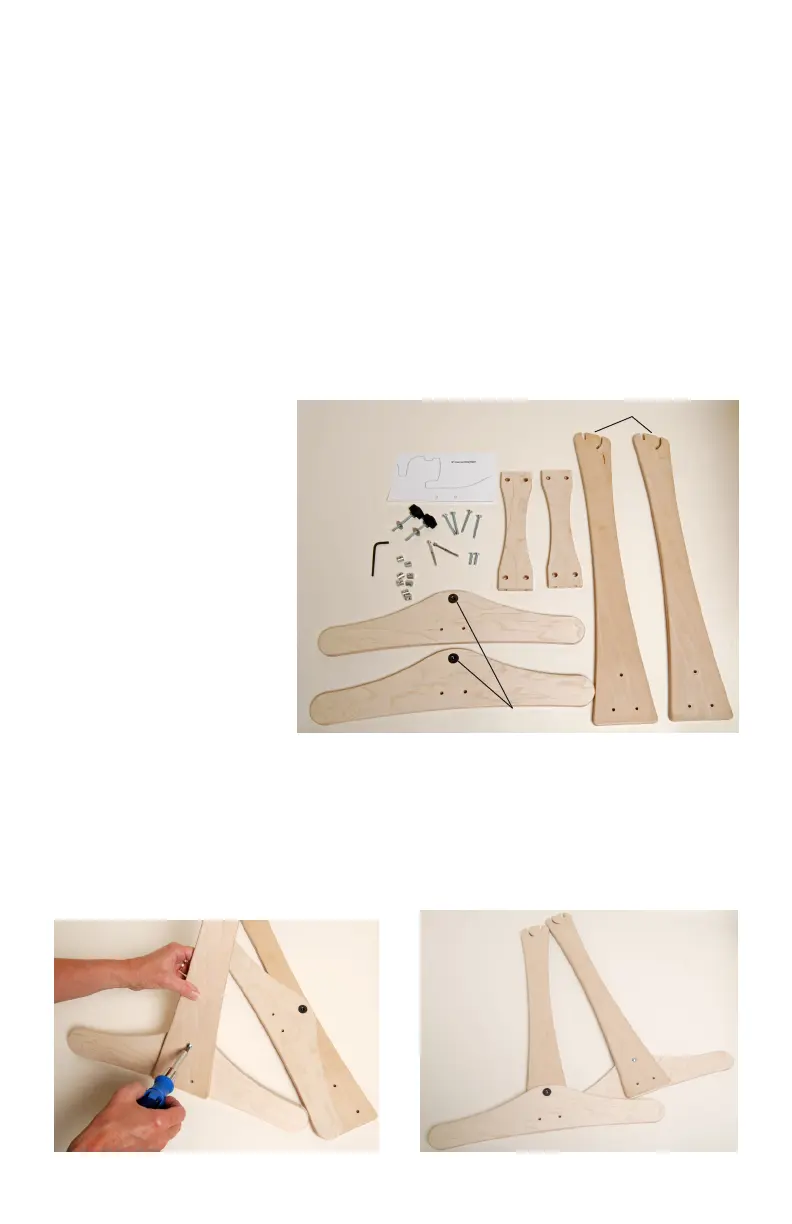

PARTS
1 – cross brace (15")
or 2 – cross braces (10")
2 – legs
2 – bases
4 – barrel nuts (15")
or 8 – barrel nuts (10")
2 – knobs
2 – washers
2 – Allen (hex) head screws
2 – 7/8" screws
4 – 2" screws
1 – drilling template (10")
TOOLS
Phillips screwdriver
Drill and 3/16" drill bit
Allen wrench 5/32" (included)
Scissors
Wood screw (pointed end, any size)
Hammer
Scrap wood
Masking tape (optional)
ASSEMBLE LEGS AND BASES
■ Orient a leg with the top edge slanting
toward you. At the bottom of the leg, from
the left side, insert a 7/8" screw into the
upper hole.
■ Place a base to the right of the leg, with
the bronze insert in the base facing away
from the leg. Attach the leg to the base
by securing the screw into the bronze
insert in the base.
■ Perform these steps for the other leg,
inserting the screw from the right side
and placing the base on the left.
left leg - inside
right leg - outside
bases
legs
cross
brace(s)
drilling template
slanted top edge
bronze insert
