Schacht Flatiron - Page 3

-3-

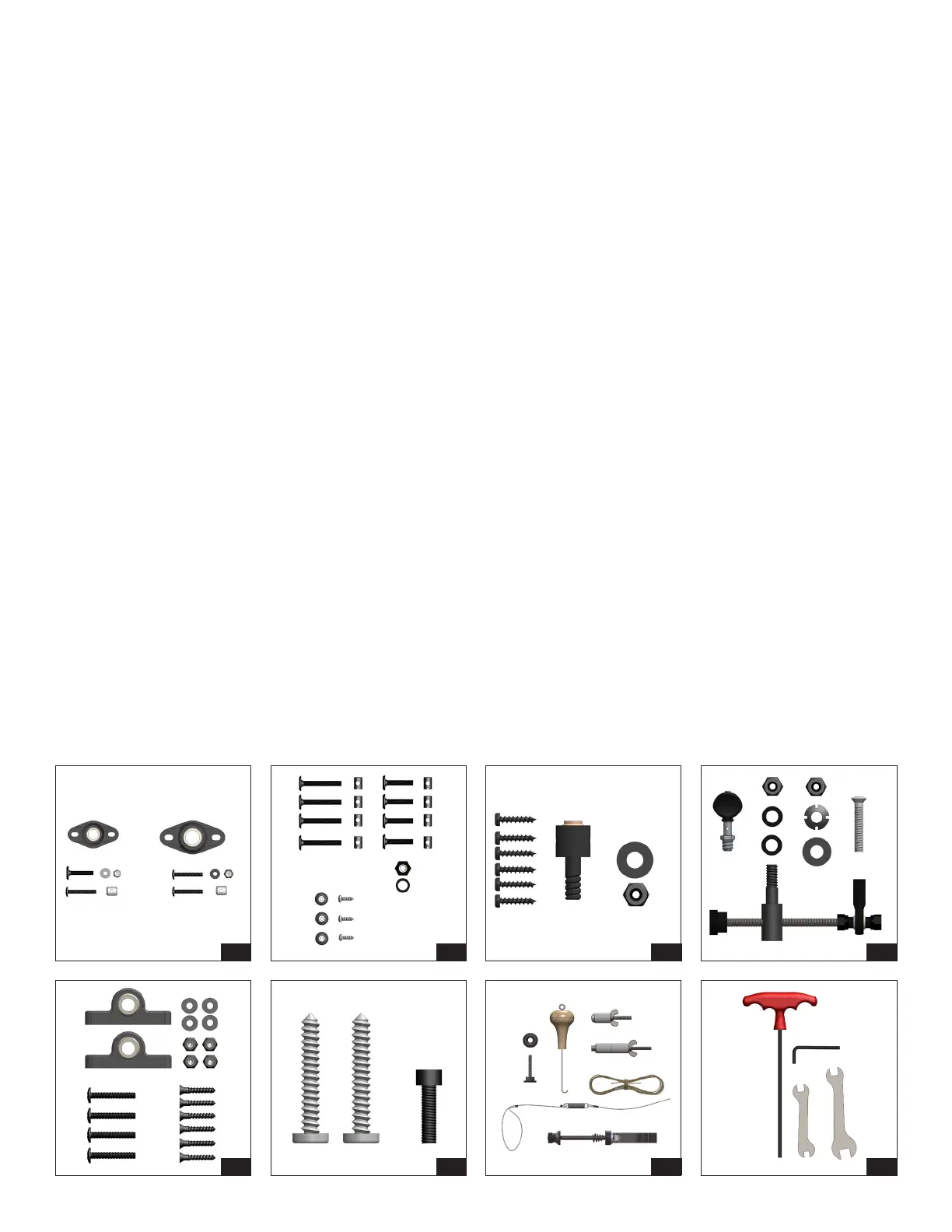

BAG #1 – PREPARING THE FRAME SIDES
1X rear axle bearing (large)
1X front axle bearing (small)
1X 5 mm lock nut (zinc)
1X 30 mm frame bolt
3X 10-24 x 1.25" machine screw
2X 10-24 beveled barrel nut (chrome)
1X 10-24 lock nut (black)
1X 5 mm at washer (zinc)
1X #8 at washer (black)
BAG #2 – ASSEMBLING THE FRAME
4X 30 mm frame bolt
4X 40 mm frame bolt
8X barrel nut (black)
1X front axle washer
1X 3/8-16 thin lock nut
3X rubber foot
3X #6-18 x 1/2" screw
BAG #3 – ASSEMBLING THE MAIDEN GUIDES
6X #8 x 7/8" rear maiden screw
1X 3/8-16 thin lock nut
1X 3/8" washer (black)
1X yer bearing assembly
BAG #4 – INSTALLING THE MOTHER OF ALL
1X cupped washer
1X 3/8" washer (black)
1X 3/8-16 thin lock nut
1X MOA tension control assembly
1X MOA-to-rod-end screw
2X plastic washer
1X 3/8-16 lock nut
1X Scotch/Irish tension adjustment knob
#5 – INSTALLING THE TREADLES
4X 10-24 x 1.25" machine screw
4X #8 at washer (black)
4X 10-24 lock nut (black)
2X treadle pillow block bearing
6X #8 x 1" treadle screw
BAG #6 – INSTALLING THE CRANK-AND-FOOTMEN
2X #10 x 1.25" treadle-to-footman screw
1X 8-32 x 5/8" crank-to-axle bolt
BAG #7 – INSTALLING THE FRONT MAIDEN /
INSTALLING THE TENSION SPRING-AND-STRING
1X quick release
1X spring-and-string assembly
1X whorl knob
1X whorl knob O-ring
1X cotton drive band
1X orice hook
1X vertical alignment tool
1X horizontal alignment tool
BAG #8 – TOOLS
1X wrench #1 (7/16" x 9/16")
1X wrench #2 (3/8" x 8m m)
1X 4 mm T-handle wrench
1X 9/64" hex wrench
1
5
2
6
3
7
4
8
