HARDWARE BAG C - STEPS 9-10
2 – 1/4" x 2" machine screws
4 – 1/4" barrel nuts
2 – #8 x 1-1/2" machine screws
2 – 1/4" x 2-1/2" carriage bolts
4 – 1/4" washers
2 – 1/4" wing nuts
2 – 5/16" slim lock nuts
HARDWARE BAG D - STEPS 11-12
2 – Jack pivot rods
2 – 1/4" washers
2 – 1/4" lock nuts
4-shaft: 2 – 4-1/2" carriage bolts
14 – 3/8" SAE washers
8-shaft: 2 – 7" carriage bolts
22 – 3/8" SAE washers
HARDWARE BAG E - STEPS 14-15
2 – 1/4" barrel nuts
2 – #8 x 1-1/2" screws
4-shaft: 4 – hex nuts
4 – O-rings
8-shaft: 8 – hex nuts
8 – O-rings
HARDWARE BAG G - STEP 17-23
2 – 3/8" USS washers
1 – Brake barrel nut (long)
1 – 1/4" x 1" machine screw
3 – 1/4" washers
1 – Brake bar and cable
1 – 5/16" slim lock nut
1 – Brake S-hook
1 – Plastic brake peg
1 – Texsolv brake cord
1 – Brake eye bolt
1 – Brake spring with insert
1 – 3/16" washer
1 – Warp beam crank handle
1 – 3/8" cap nut
1 – 3/8" washer
Jack pivot rod
3／16
"
3／8
" SAE
1／4
"
3／8
" USS
1/4” fender
Note: Washer sizes are measured by the diameter of the hole. 3/8" USS washers
have a larger outside diameter than 3/8" SAE washers.
O-ring
½
¼
¾
⅛
0
1
2
3
4
1½
1¾
2¼
2½
⅜

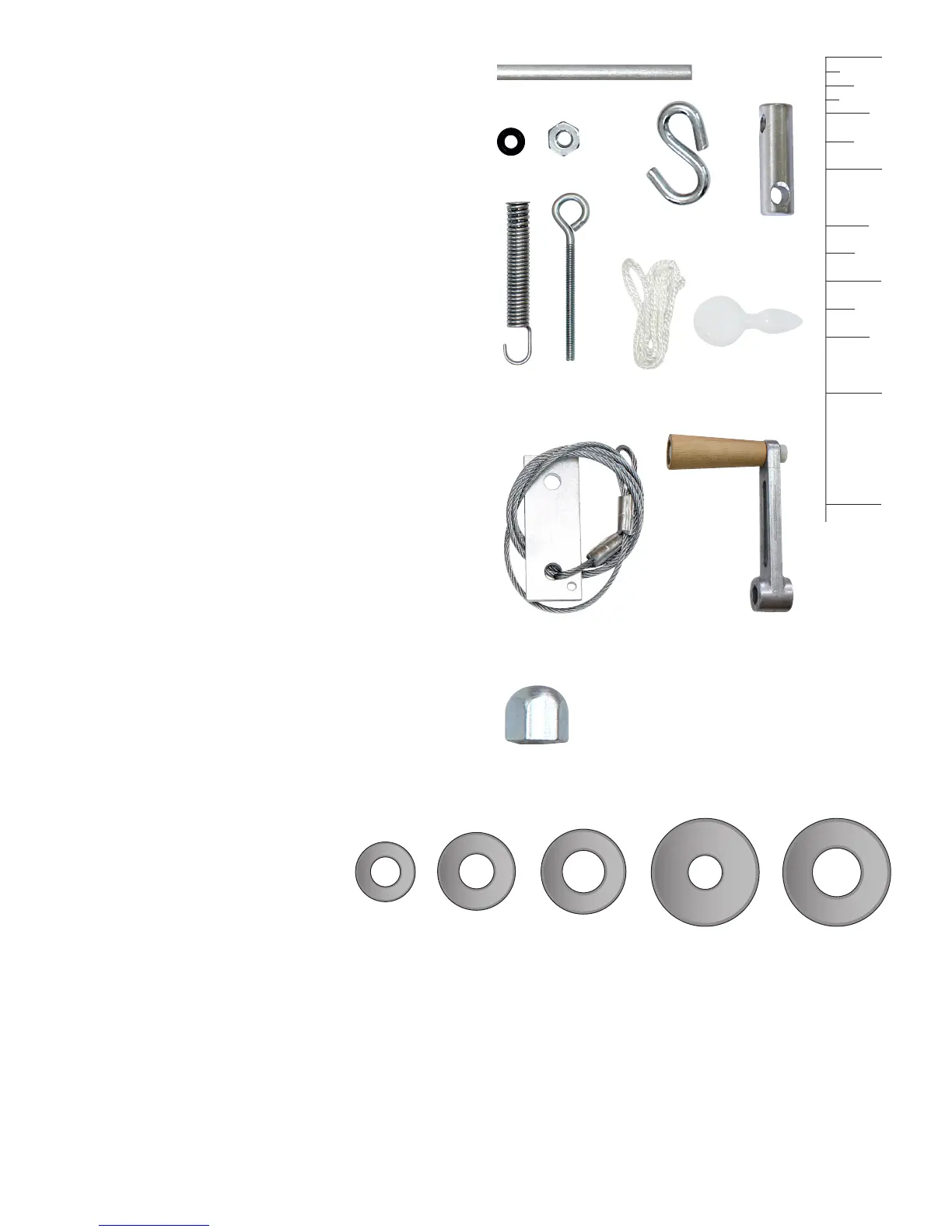

Brake
spring
Brake cord
Brake
eyebolt
Brake
S-hook
Brake peg
Brake
barrel nut
Brake bar and cable
Cap nut
Warp beam crank handle
Hex nut
