Operation & Maintenance
Unit placement and other considerations
The WayCool
®
unit(s) should be placed at one end of the building and an appropriate exhaust fan should be at the
opposite end to pull the cool air from the WayCool® unit and discharge the warm air out of the building.
Try to get all the air flowing in the same direction. Do not direct other fans against the WayCool
®
unit. It will counter the
WayCool
®
's airflow and stop the cooling effect.
Obstructing the airflow from the WayCool
®
unit severely reduces the cooling effect.
Avoid using ceiling fans as they disrupt the airflow from the WayCool
®
unit.
Use as many exhaust fans as possible to create a natural draft through the building.This will enhance the WayCool
®
's
performance.

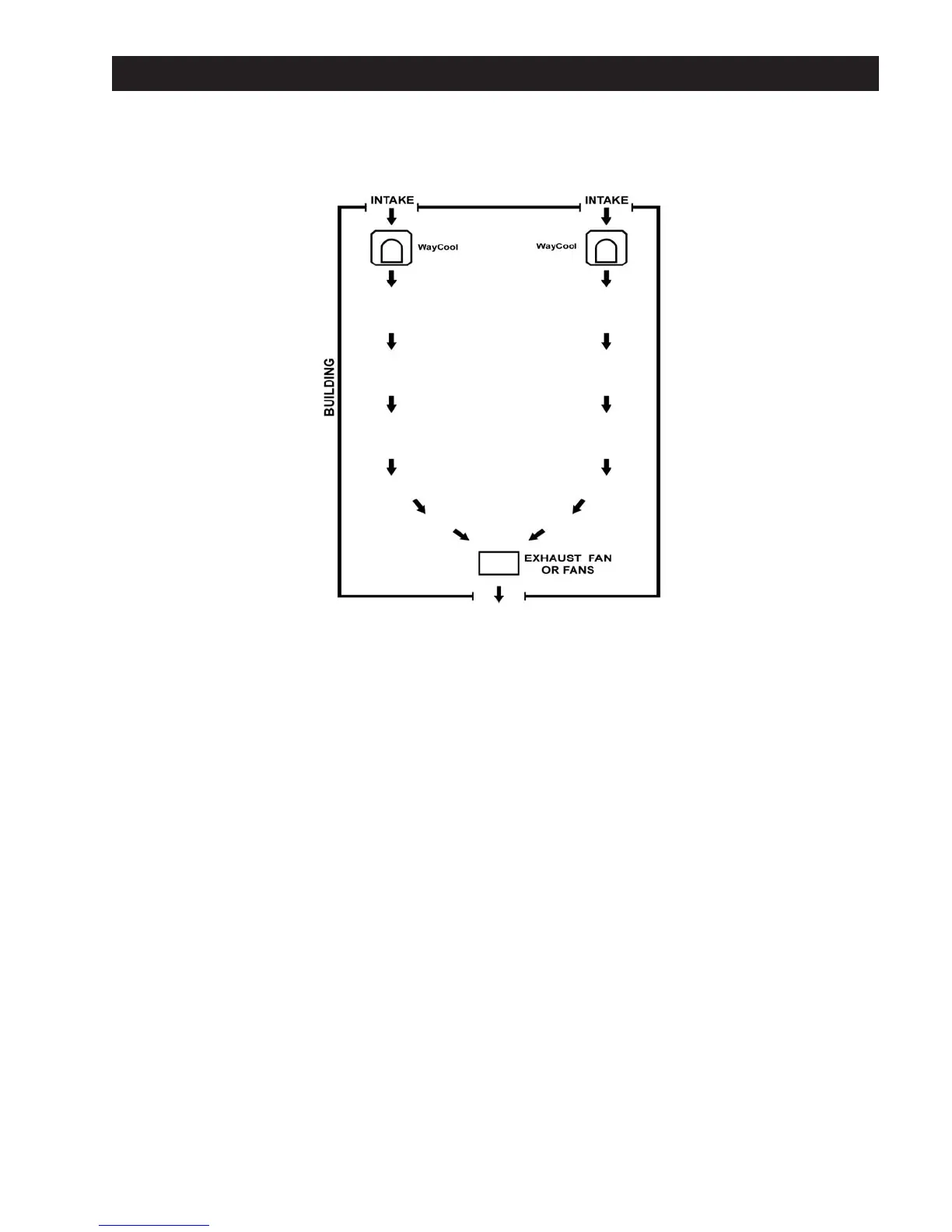

Figure WC-1HP.09 Typical WayCool
®
Unit Arrangement
11
