Schaudt AD 01 - Initial use; Checks prior to initial use; Starting up the system; Settings (only AD 03)

Installation instructions for adapter AD 01...03
11
Date: 01.08.2012
822.371 BA / EN
9 Initial use
9.1 Checks prior to initial use
 Ensure that the battery of the basis vehicle is connected correctly (only as
part of initial use).
9.2 Starting up the system
 Engine of the basis vehicle when stationary:
F Switch on the vehicle lighting and check whether all position lights are
also switched on.
F If available: Turn on the switch for the fog lights and check whether the
fog light(s) is/are switched on.
F Check that all consumers connected to the steady plus are ready.
F Ensure that no consumer that may only be operational when the en-
gine is turned on can be switched on.
 Start the engine of the basis vehicle:
F Check whether all consumers that may only be operational when the
engine is turned on are now operational.
9.3 Settings (only AD 03)

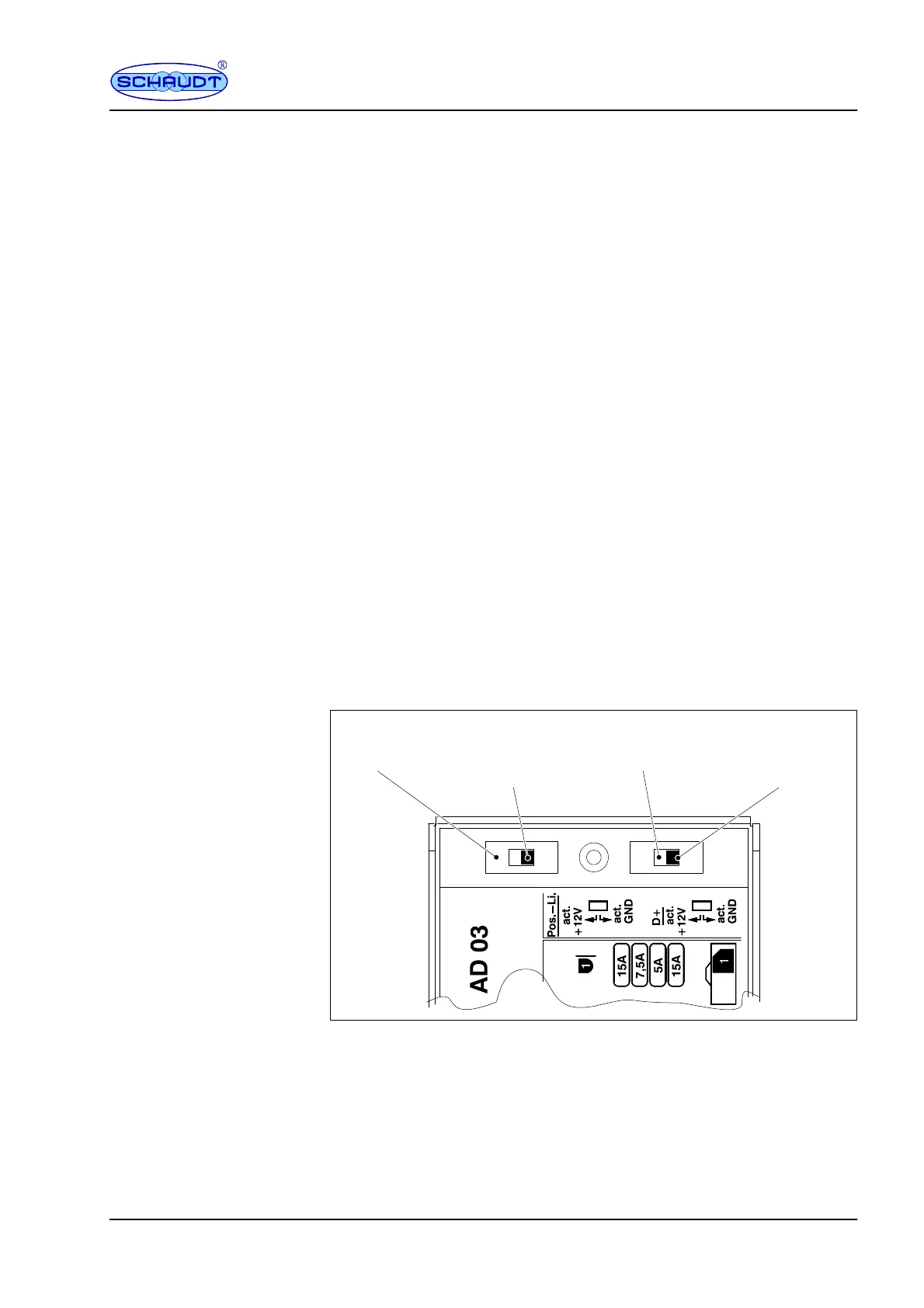

 Adjust the slide switch as specified in Fig. 7.
Switch S2: Position lights
ON for +12V
ON for GND
Switch S1: D+
Active for +12V
Active for
GND
Fig. 7 Dimension diagram for AD 03 adapter (dimensions in mm)
Before starting up
