Instruction manual caravan distributor CV 304 with switch panel
3
Stand: 24.06.2016
8120065 BA / EN
2 Introduction
This instruction manual contains important information on safe operation of
the device. Make sure you read and follow the safety instructions provided.
The instruction manual should always be kept in the vehicle. All safety infor-
mation must be passed on to other users.
3 Operation
A 12V main switch and a pump switch are available as a control on a shared
switch panel (ST02HS+PU).
3.1 Connec t the 12 V suppl y volta ge
Y ATTENTION!
Battery discharge when towing vehicle is hitched
Towing vehicle cannot be started:
F Switch off the ignition when the towing vehicle engine is not running
(depending on model).
F Disconnect the connector on the towing vehicle (depending on mo-
del).
12V main switchand
pump switch
(external)
230V power cut-out (optional)
Panel LT 151
(optionnally)

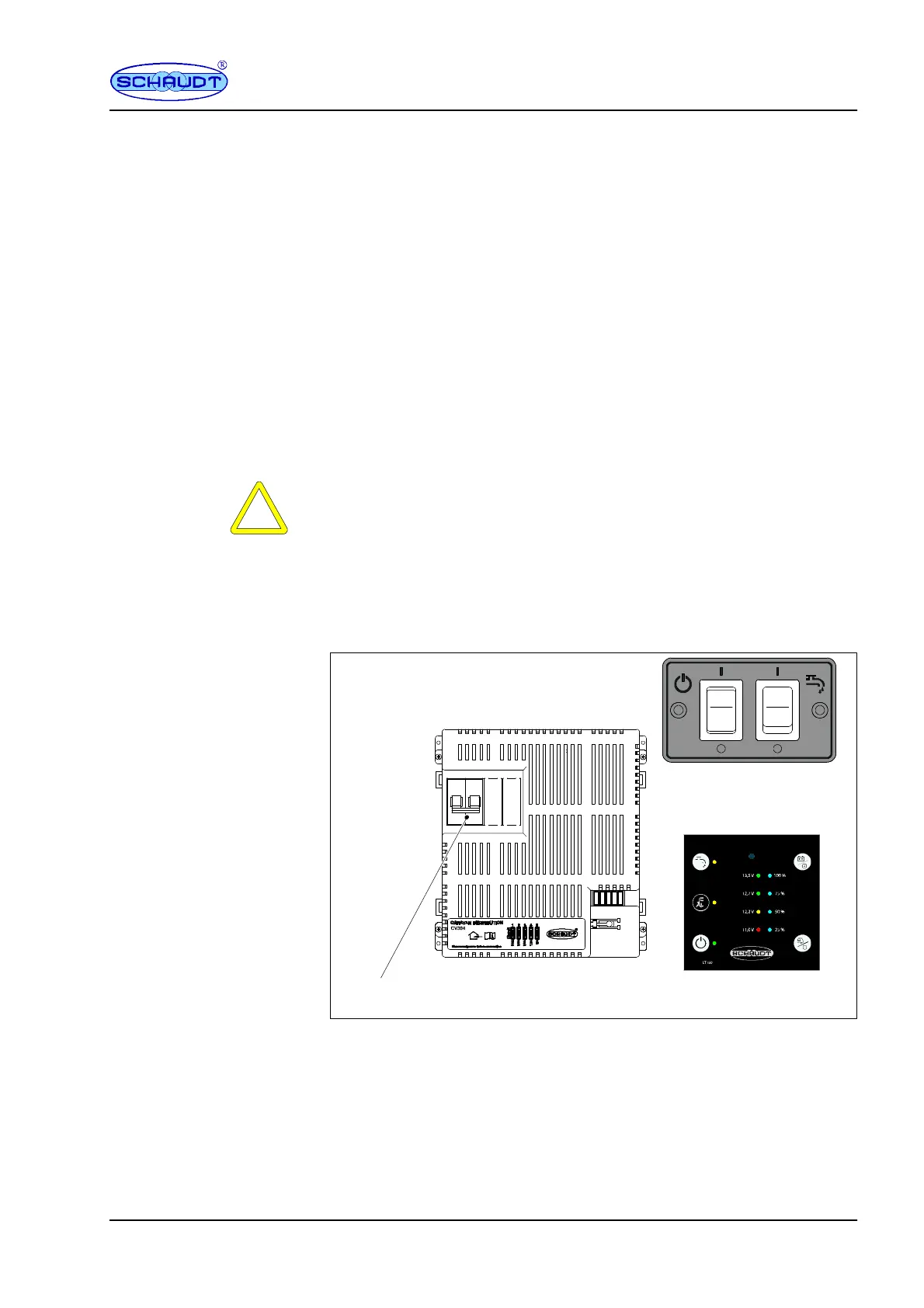

Figure 1 CV 304 caravan distributor -- controls
Operation on the towing
vehicle
