Instruction manual caravan distributor CV 304 with switch panel
9
Stand: 24.06.2016
8120065 BA / EN
C Design
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

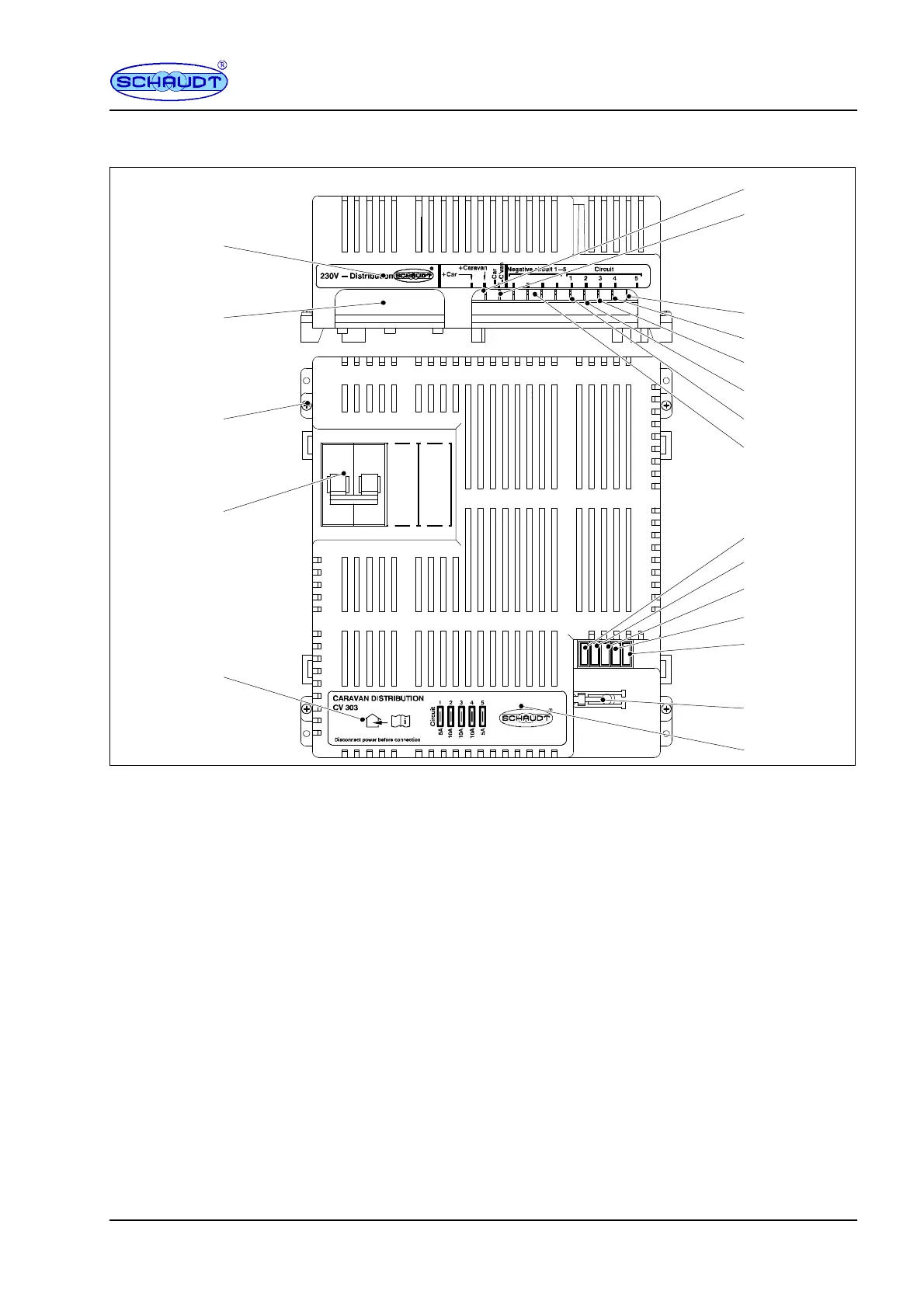

Figure 3 Front view of CV 304 caravan distributor
1 + connection tow-bar connector 11 Flat vehicle fuse circuit 3
2 + connection caravan battery 12 Flat vehicle fuse circuit 4
3 Connections circuit 5 (awning light) 13 Flat vehicle fuse circuit 5
4 Connections circuit 4 14 Removal aid for safety fuses
5 Connections circuit 3 15* ST1/ST2 for panel (ST02HS+PU/LT 151)
6 Connections circuit 2 and input A20 signal “mains”
7 Connections circuit 1 16 Adhesive label
8 Ground circuit 1 to 5, batteries 17** Opening with power cut-out
9 Flat vehicle fuse circuit 1 18 Bracket with hole
10 Flat vehicle fuse circuit 2 19 Opening for inserting the 230V cables
20 Adhesive label
*
**
ST1, ST2 , A20 accessible after removing the cover
optional; there is no opening in the cover without a power cut-out
