10 Situation: 25.06.2010 811.598 BA / EN
Instruction Manual Electrobloc EBL 269
12 Block diagram - for specialist workshop only

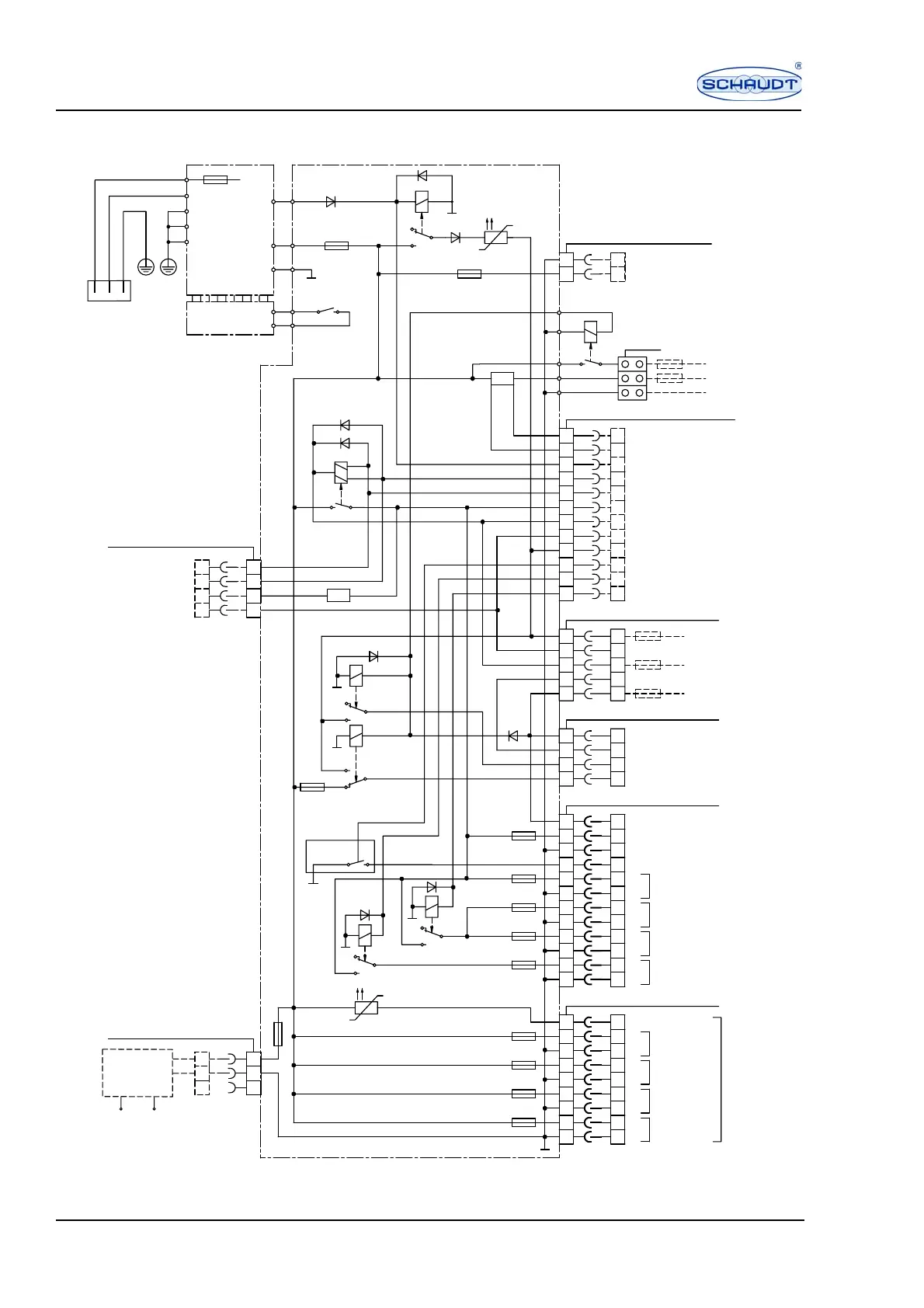

Fig. 2 Block diagram of Electrobloc EBL 269
!
!
!
!
!
!
!
3
!
!
%
!
!
!
!
!
!
3(5.4
!
!
!
!
!
!
!
!
!
!
!
!
%&
!
!
!
!
!
!
!
!
!
!
6'7
Charging relay for
starter battery
MNL socket cap 2x - block 3
Negative auxiliary charging unit
LAS...
14.3 V - 18 A
+ Auxiliary charging unit
70 A battery cut-off
relay
The negative pole of the living
area battery must be connected
externally to the negative pole of
the starter battery.
230 V mains ~ 50 Hz
Standard mains socket
Switch between
lead gel/
lead acid
+ Starter battery
+ Living area battery
Negative living area
battery
Plug connector MSFQ/0 12x - block 5
Shunt battery
Shunt consumer
Mains indicator
12 V on
12 V off
12 V indicator
+ Living area battery sensor
60 A main
switch relay
Negative living area battery sensor
Pin rail MSFQ/0 4x - block 8
+ Starter battery
12 V off Pump switch
Spare
12 V on
12 V indicator
Light
Negative living area
battery sensor
MNL socket cap 5x - block 2
+ Starter battery for
refrigerator *
Negative living area battery sensor
+ Living area battery sensor
Negative starter battery for refrigerator *
Absorber
refrigerator
D+ input
MNL socket cap 4x - block 1
D+ base
Negative refrigerator
Compressor
refrigerator
+ Absorber refrigerator
+ Compressor/AES refrigerator
MNL socket cap 12x - block 7
D+ base
+ Pump
Switching
stage
Constant negative to pump
Connected negative pole of pump
TV
* Refrigerator lines must be
lead to the battery poles
without being connected to
other battery supplies.
** Only applies for
EBL 269-2 and
EBL 269-2 A
Light 1
Light 2
Spare
MNL socket cap 9x - block 6
Frost protection valve
Are not switched off
via the main 12 V
switch on the
instrument panel.
MNL socket cap 3x - block 4 (15A**)
Circuit 1 (circuit 4**)
Solar
charge
regulator
type LR...
Heater
Step
(15A**)
Solar module
Awning light
(circuit 5**)
Circuit board KPL EBL 269 type no. 771.498
