³ Disconnect the battery from the Electroblock by activating the battery
isolation on the DT/LT ... control and switch panel on (see Chapter 3.5 as
well).
³ Replace the battery.
³ Check once more to ensure that you have fitted the correct type of
battery afterwards.
Y DANGER!
Battery selector switch set incorrectly!
Danger of explosion caused by the build up of oxyhydrogen gas.
F Set the battery selector switch to the correct position.
Y ATTENTION!
Battery selector switch set incorrectly!
The battery will be damaged.
F Set the battery selector switch to the correct position.
³ Disconnect the Electroblock from the mains before resetting the battery
selector switch.
1

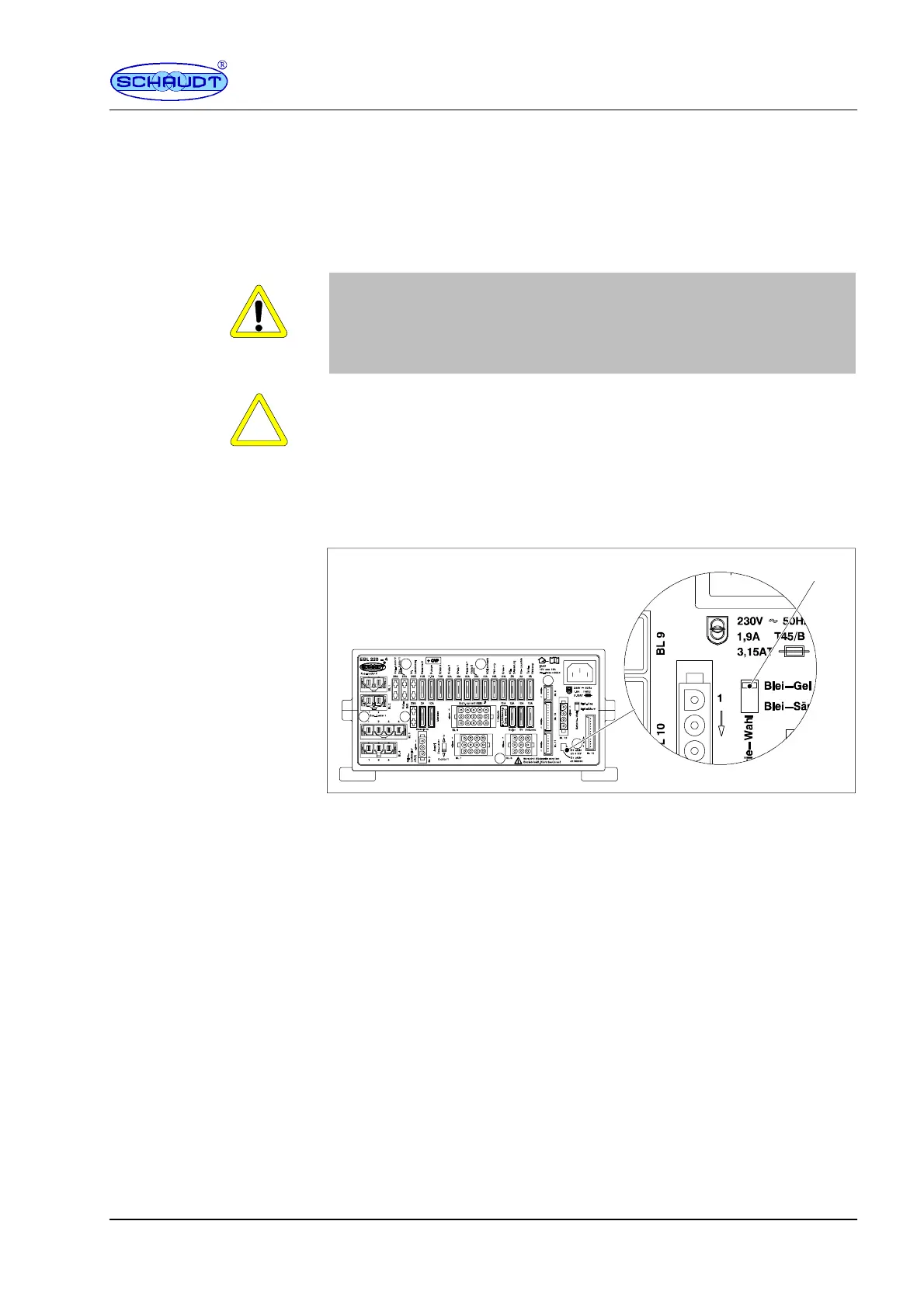

Fig. 1 Battery selector switch
³ Move the battery selector switch (Fig. 1, Pos. 1) into the relevant position
using a thin object (e. g. ball-point pen):
F Lead-gel battery: Set the battery selector switch to “Lead-gel” (Gel).
F Lead-acid battery: Set the battery selector switch to “Lead-acid”
(Säure).
³ Start the system as instructed in Chapter 3.1.
3.3 Operating faults
The majority of power supply system faults are caused by blown fuses.
The following functions are protected by a self-resetting fuse:
F the “Step“ output
If a fault occurs here, the step must not be operated for approx. 1 min.
These fuses reset themselves automatically within this period.
Changing the battery
Starting u p
the system
Flat vehicle fuses
Self-resetting fuses
