3 Operation
3.1 Layou t
The LT 45X control panel is intended for installation in a cabinet or wall.
2
1
2.12.2 2.6 2.7
1.1
1.5
1.7
1.6
1.2
1.3
1.4
1.8
2.32.42.5

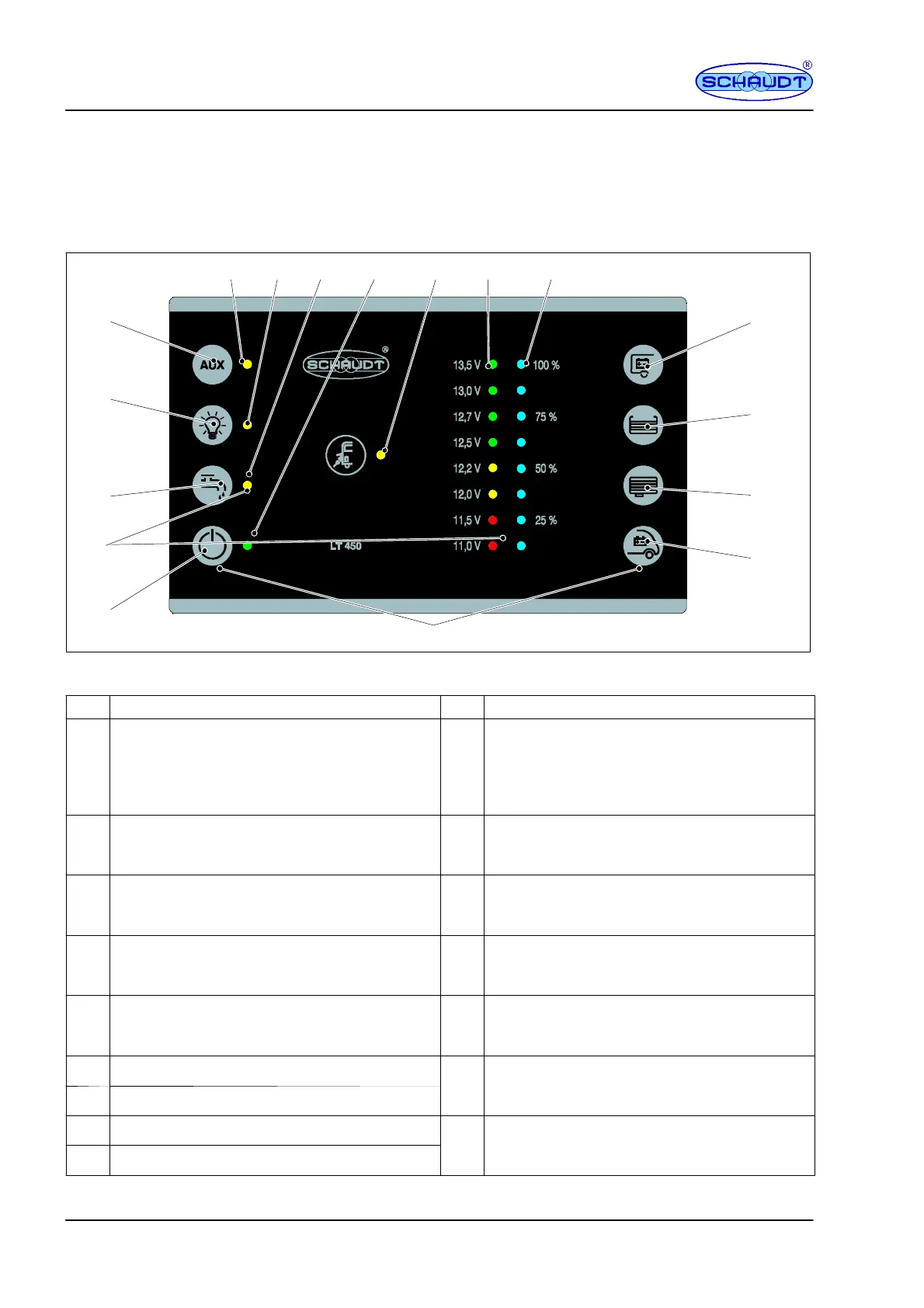

Fig. 2 Layout of L T 45X control panel
1 Touch sensor 2 Displays
-- -- 2.1
LED mains indicator (yellow):
The LED lights up when mains voltage is pre-
sent at the input of the vehicle mains supply
(also refer to the instruction manual for the
relevant EBL ... , Section ”Starting up”).
1.1
Main switch, 12 V ON/OFF:
For switching on and off the 12V supply of the
vehicle
2.2
Indicator LED (green):
Display: 12 V vehicle supply ON
1.2
Pump switch:
For switching on and off the 12V supply for
the water pump
2.3
Indicator LED (yellow):
Display: Pump supply ON
1.3
Light power:
For switching on and off the 12V supply for
the leisure area lighting
2.4
Indicator LED (yellow):
Display: Power for lighting ON
1.4
AUX supply:
For switching on and off the 12 V AUX supply
(e.g. for radio and TV)
2.5
Indicator LED (yellow):
Display: AUX power ON
1.5 Check of leisure area battery voltage
8 LEDs (2 red -- 2 yellow -- 4 green):
1.6 Check of starter battery voltage
.
sp
ay o
a
ery vo
age
n
ncremen
san
warning of total discharge.
1.7 Check of water tank level
8 LEDs (blue):
1.8 Check of waste water tank level
.
sp
ay o
wa
er an
was
ewa
er
an
eve
s
(four increments).
