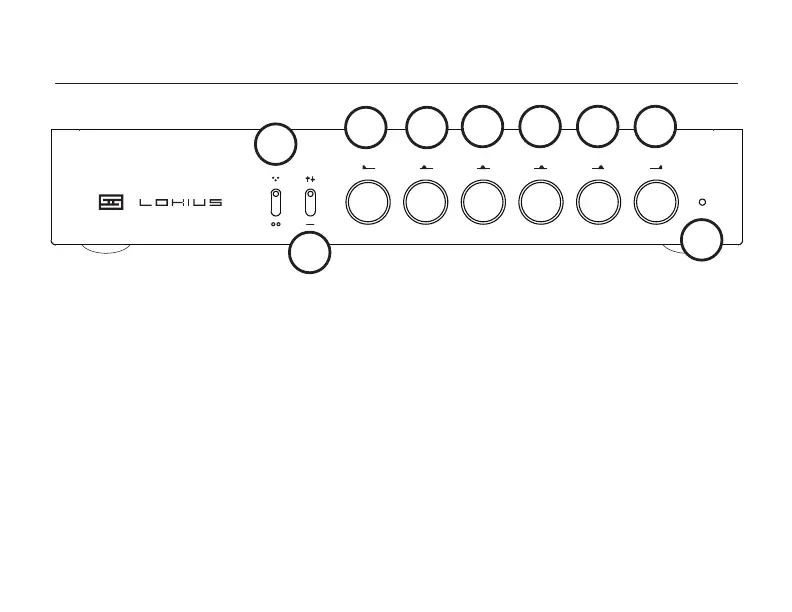

1 Input Select. Up for balanced input (XLR),
down for single-ended (RCA). Simple as that.
2 Process/Bypass. Up = equalization active,
down = completely bypassed (only a relay and
resistor in the signal path).
3 20Hz Knob. AKA very low frequencies. Turning
the knob clockwise increases output, counter-
clockwise decreases. Simple as that.
4 120Hz Knob. Similar to a standard “bass
control.” Works just like the above. Clockwise
for moar bass, counterclockwise for less.
OPERATION
5 400Hz Knob. AKA lower mids. You have
the directions good on this now, right?
6 2kHz Knob. AKA presence. Clockwise for
more, counterclockwise for less.
7 6kHz Knob. Similar to a standard “treble
control.” You know the drill.
8 16kHz Knob. AKA air or extremely high
frequencies. Works like all the other knobs.
9 Power LED. When this lights up, Lokius is on.
