4

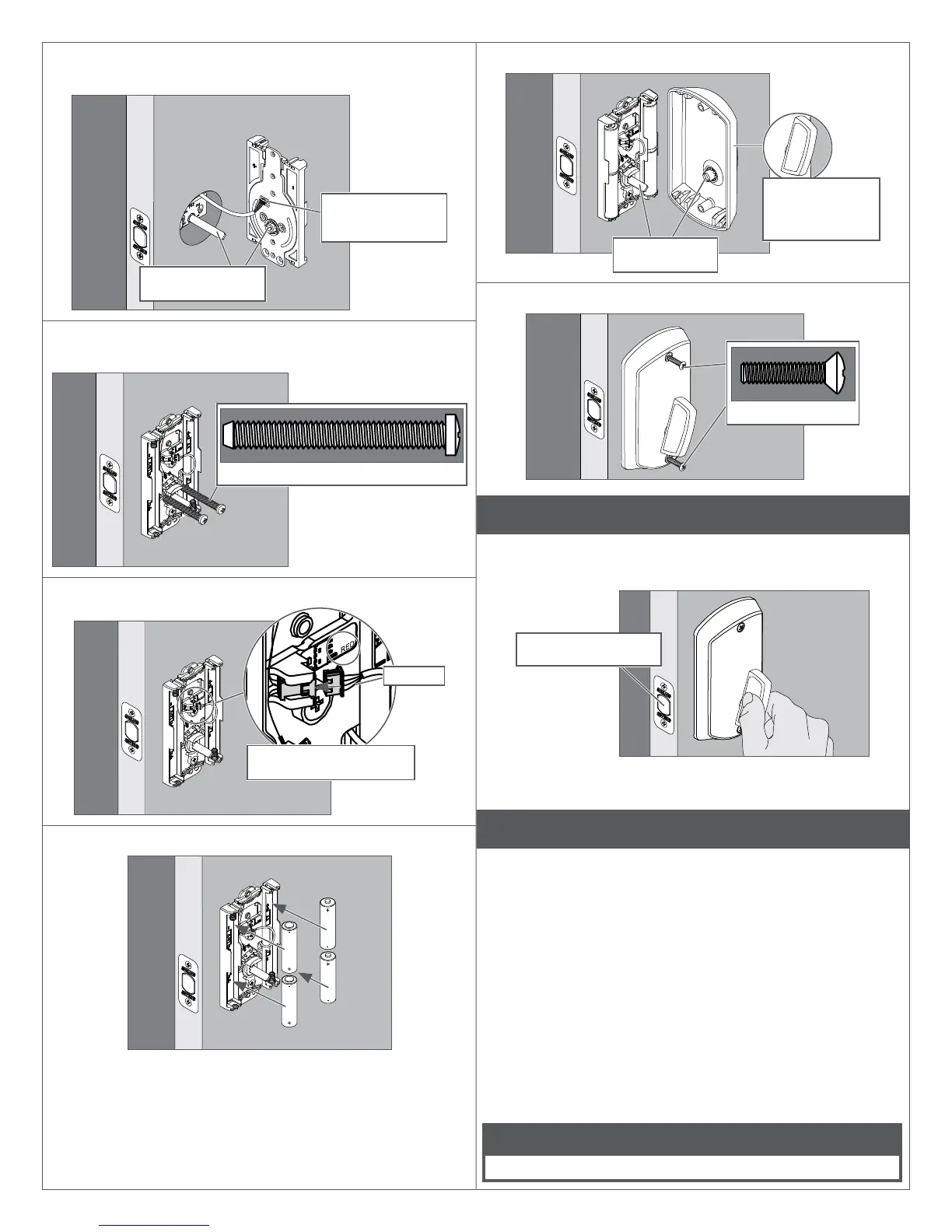

3b Install the inside assembly on the inside of the door.
L Bolt must remain retracted!
Route the cable
through the hole in
the inside assembly.
Guide the tailpiece
into the slot.
3c Secure the inside assembly with two screws.
L If the screw holes are blocked by the cam, see step 3a.
Actual Size (2)
3d Connect the cable to the inside assembly.
The connector ts only one
way. DO NOT FORCE!
Red wire
3e Install the batteries.
3f Install the inside cover.
Align the slot with
the tailpiece.
Thumbturn should
be pointed towards
hinges, with longer
side on top.
3g Secure the inside cover with two screws.
Actual Size (2)
4 Test the Lock
4a Extend and then retract the bolt using the inside bolt
throw.
Bolt should extend and
retract smoothly.
L Outside bolt throw should spin freely until a valid credential is
presented.
5 Set up the lock.
Continue to www.schlage.com to download the Schlage Control
Smart Locks User Guide.
Product Support
1-800-847-1864 www.allegion.com/us
