Installation Instructions for Sectional Trim
Continue for installation instructions
for your lock with sectional trim
(Greenwich).
For escutcheon
(Addison) trim
instructions go
to page 6.

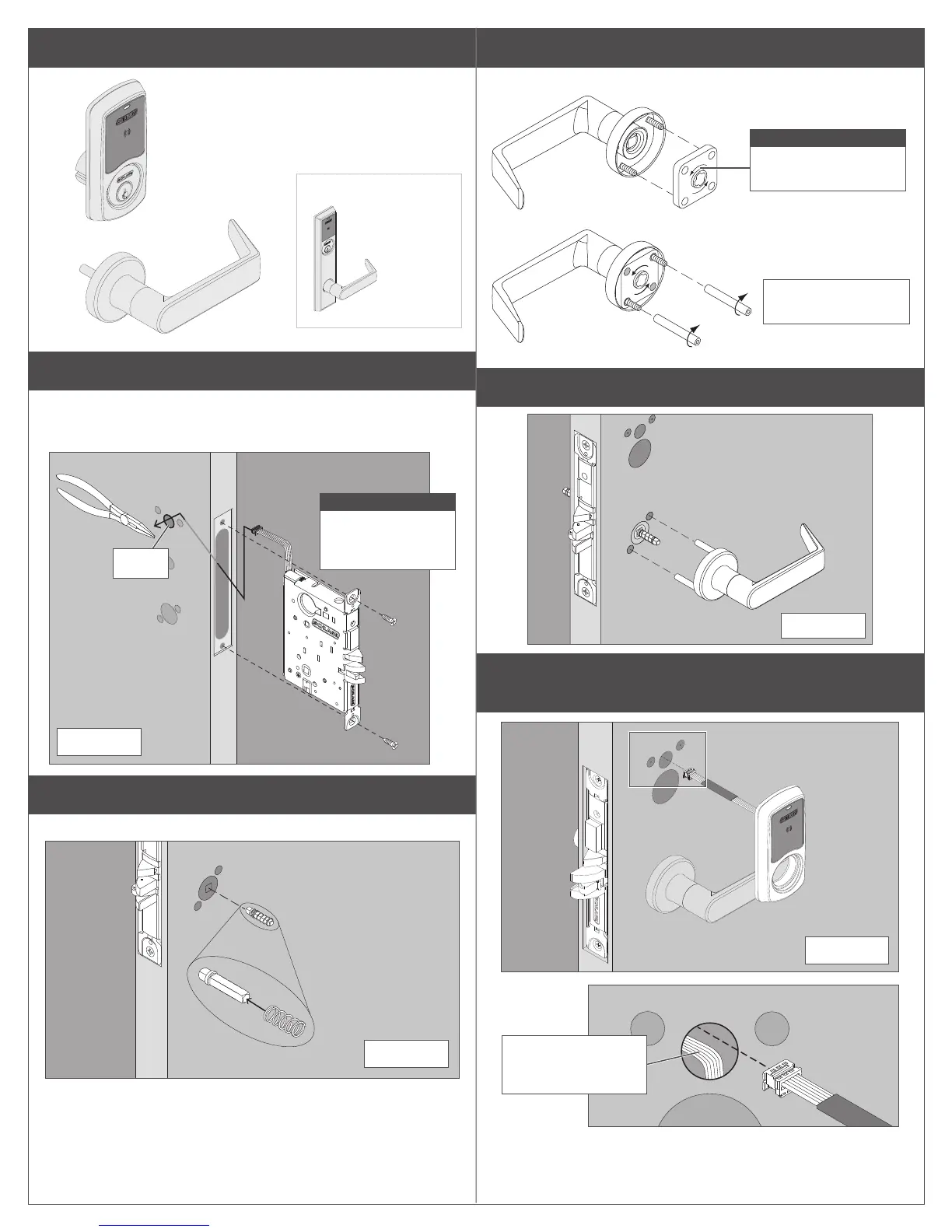

1 Install chassis.
Route chassis connector through the upper 5/8” hole on the interior side
of the door, and pull through the slack as you slide chassis into mortise.
You may use needle-nose pliers to gently pull the cable through the hole.
CAUTION
Start screws but
don’t fully tighten
until Step 12!
INTERIOR
Hole
2 Install lever spindle on the exterior side of the door.
Install spring on lever spindle.
EXTERIOR
3 Install spring cage into lever.
Use pliers carefully to install mounting posts to avoid damage.
Fully tighten mounting
posts on screws.
IMPORTANT
Arrows in direction of
lever down rotation.
4 Install outside lever.
EXTERIOR
5 Install the outside trim and route wire all the way through
the hole to the interior side of door.
Route wire from
outside trim above
wire from the chassis.
EXTERIOR
