The sensors are part of an intrinsically safe circuit created by the barrier relay.
There are 2, two wire sensors, thus 4 wires required for each drive. Almost any
wire, 26 ga. or heavier, up to 1000' in length can be used. Do not run these wires
in a conduit or cable tray with other power circuits.
Sensor
Intrinsically Safe
Wiring
Step 3 – Wiring the Sensors
Refer to Figure 1 and 3 and route the 4 sensor wires into the upper left section of
the control box as shown.
Conne
ct the 4 sensor wires to the screws labeled 1, 2, 4 and 5 on the barrier
relay as shown in Figures 3 and 4.
Note: Do not run sensor wires in a conduit or cable tray with power wiring.
Note: Sensors are polarity sensitive but will not be damaged by a tempo
rary
reversal. You can't smoke anything by hooking it up backwards...it just won't
work!

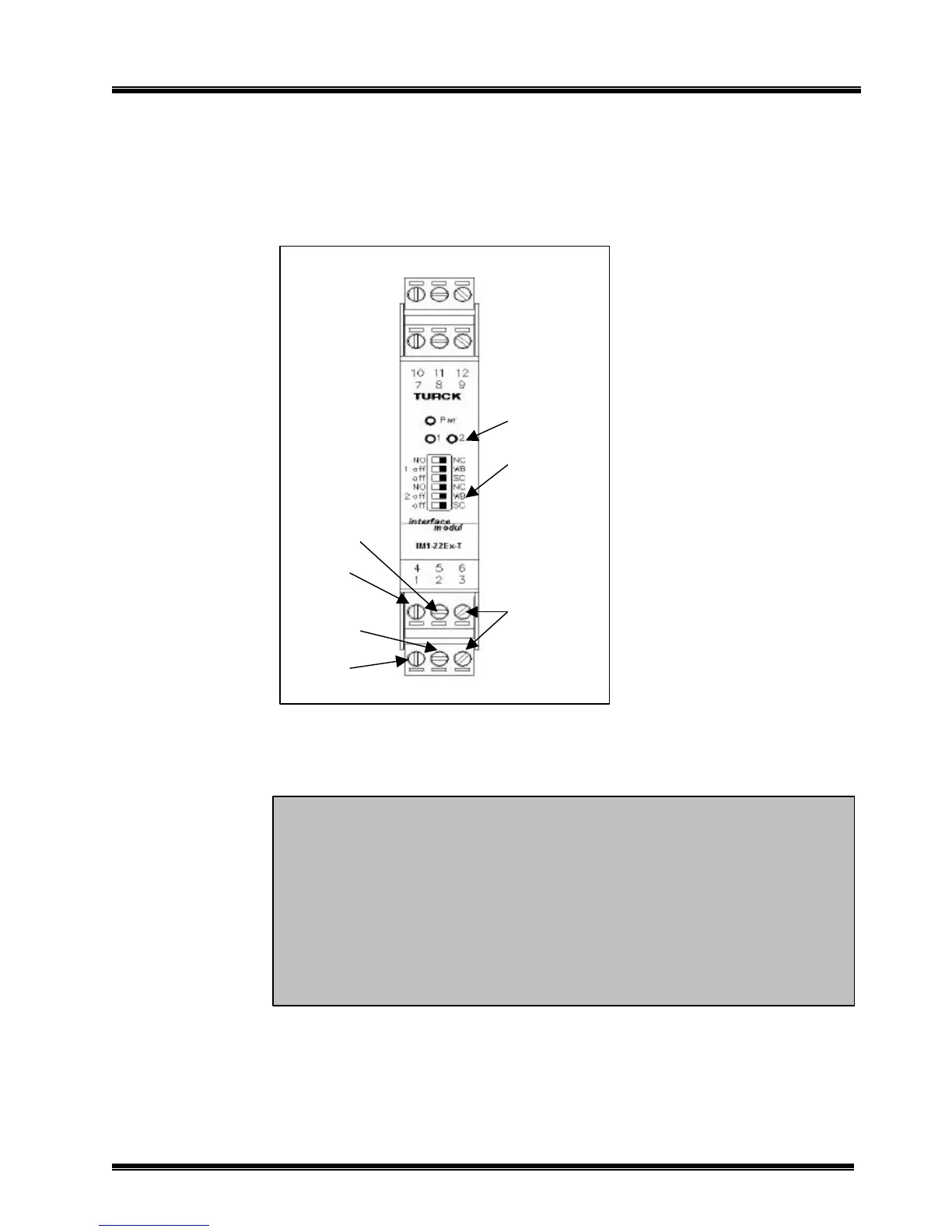

Figure 4. Turk IM1-22Ex-T Barrier Relay
Set All 6
Switches
Right
Sensor
Not Used
Lamps 1 & 2
To Next Page
