FILTER
-With a external signal in the INPUT
and the GRIND->SPIN knob turned CW
the external signal will disrupt the
oscillations
-The outputs will become
LOW PASS, BAND PASS, HIGH PASS,
and INV BAND PASS
-GRIND sliders are now voltage controlled
non-linear feedback paths
Experiment with all controls

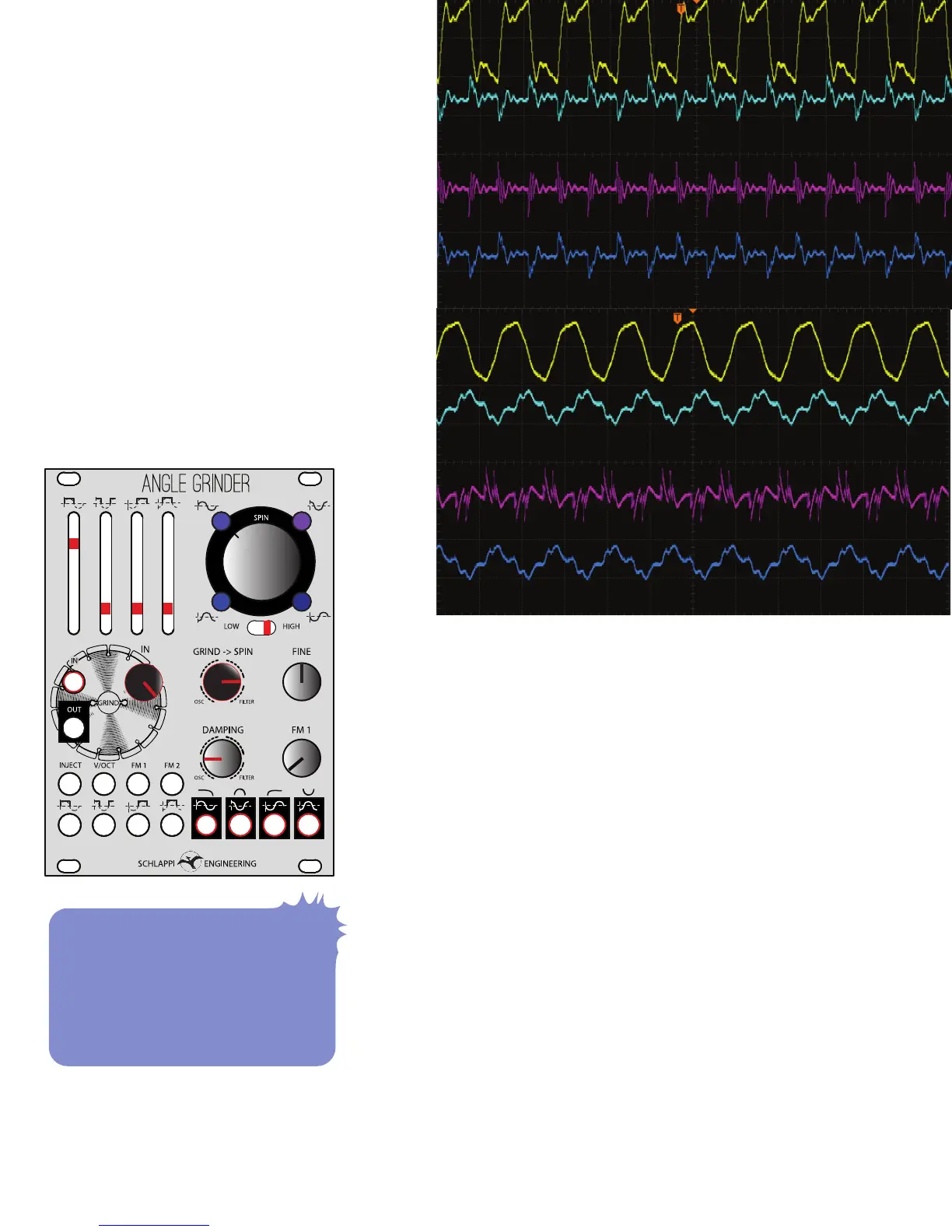

-Four outputs responding to a triangle
input at various freuencies are shown to the right
FILTER
KNOB POSITIONS
IN FULL CW
GRIND -> SPIN 75%
DAMPING 25%
