Installation manual FlatGrid | 2020.03 V.001
Schletter Solar GmbH – Alustraße 1 – 83527 Kirchdorf, Germany

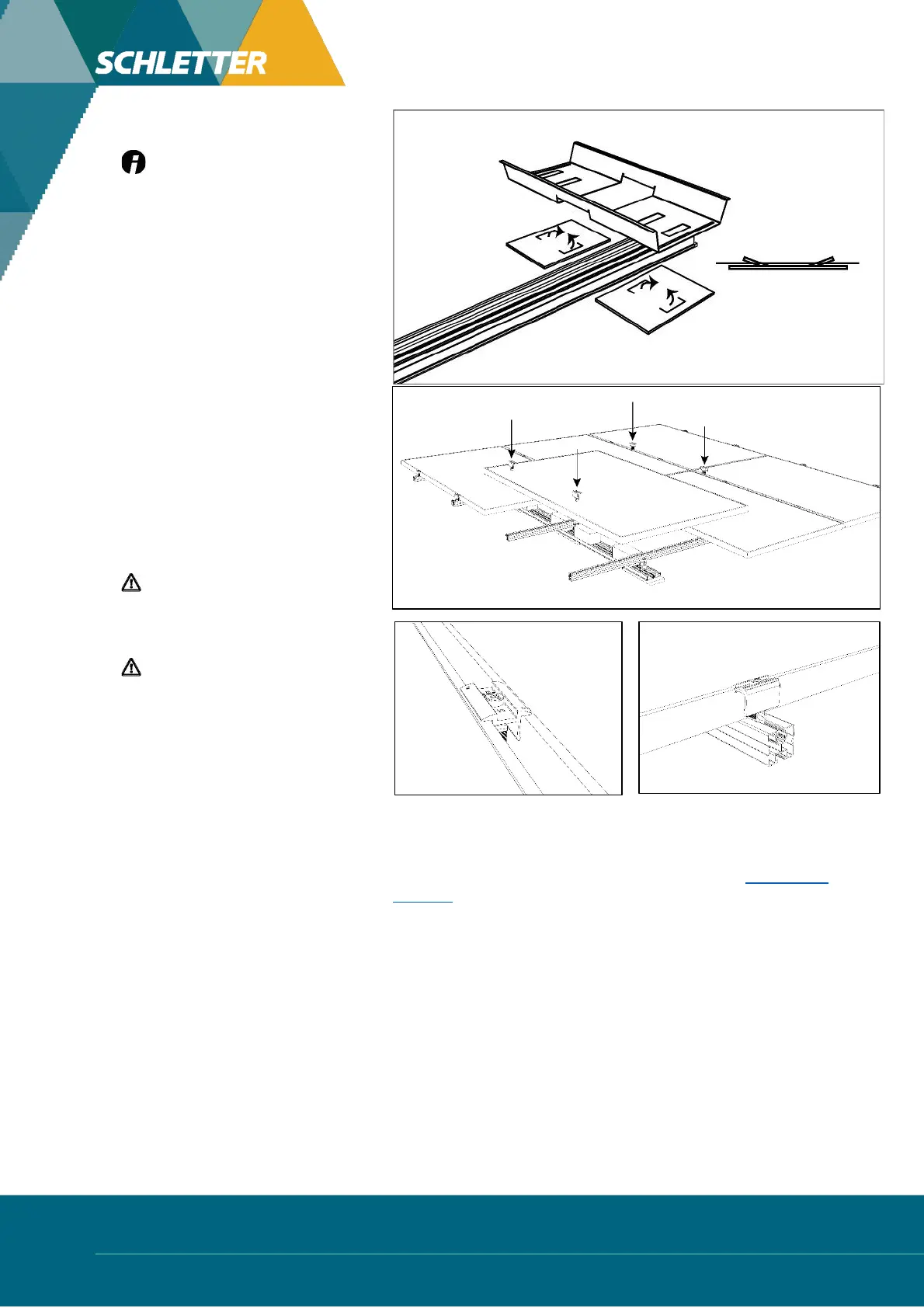

If the base profile is not adequate for ballasting, a
tray can be filled with more stones for additional ballast.
Fasten the structure protection mat pieces to the trough
with fastening flaps.
$
Fastening the modules
• Position the module on the
module support profile
according to the plan
specifications, install the cables
and fasten with Rapid16 module
clamps.
Observe the module manufacturer’s
clamping points.
The fastening points for the module
clamps can be freely chosen in the module
support profile’s aluminum channel. The
specified torque for fastening the module
clamps is 15 Nm.
More information on our systems can be found at our website: www.schletter-
group.com in the Downloads area.
