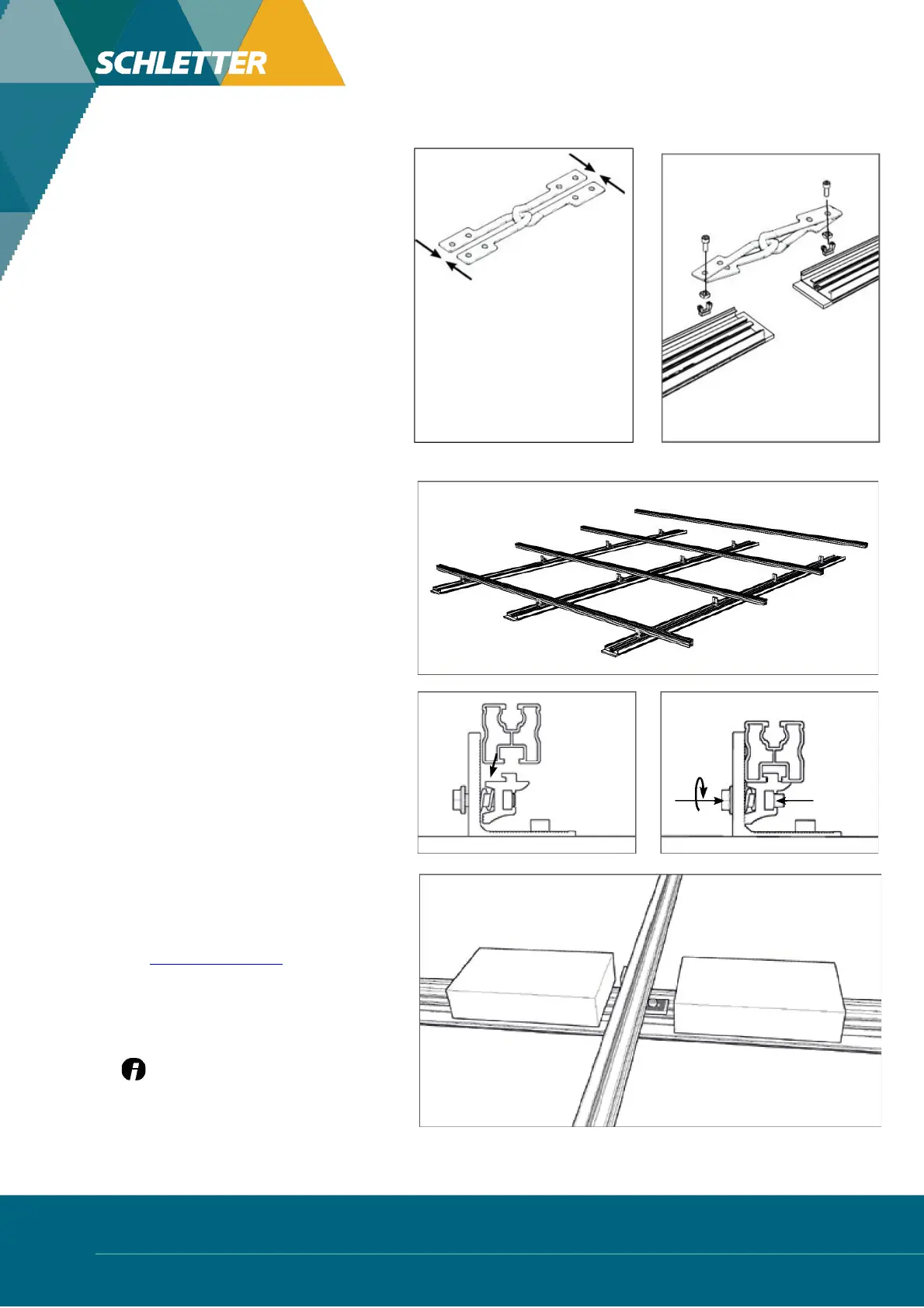

Slip protection
• For sloped roofs, module fields must
be secured against slipping. Either
through horizontal fastening or
coupling of opposite tension
connectors using the tension
connector on the ridge. To do this,
thread the connectors into each other,
press them together at the ends, and
use 2 screws to fasten them from
above using a one-click module and
square nut on both base profiles.
• Roof fascia in certain circumstances
could also offer protection against
slipping. Make sure the connection
and static load-bearing capacity are
suitable.
• In general, for individual connections,
it is a good idea to consult an
engineering firm.
"
Installing the module support profiles
• Insert the module support profiles
onto the lower screw channel in the
clamp.
• Align the module support profile
vertically together with the clamping
part and tighten the screws to fasten.
#
Ballasting
• Distribute the ballast according to the
planning documents. You can get them from
our company with the system plan or
directly through the configurator in the
download area of our website:
www.schletter-group.com
• Distribute the ballast evenly on the base
profile. If the load distribution is uneven,
bring the loads close to the module support
profile.
Ballast is not included with FlatGrid.
Recommended stone dimensions: 20x10x8cm
