Schletter FlatGrid - Extension of Base Profiles; Installing Structure Protection Mat; Alignment of Base Profiles; Installing Rapid 2+ L

Installation manual FlatGrid | 2020.03 V.001
Schletter Solar GmbH – Alustraße 1 – 83527 Kirchdorf, Germany

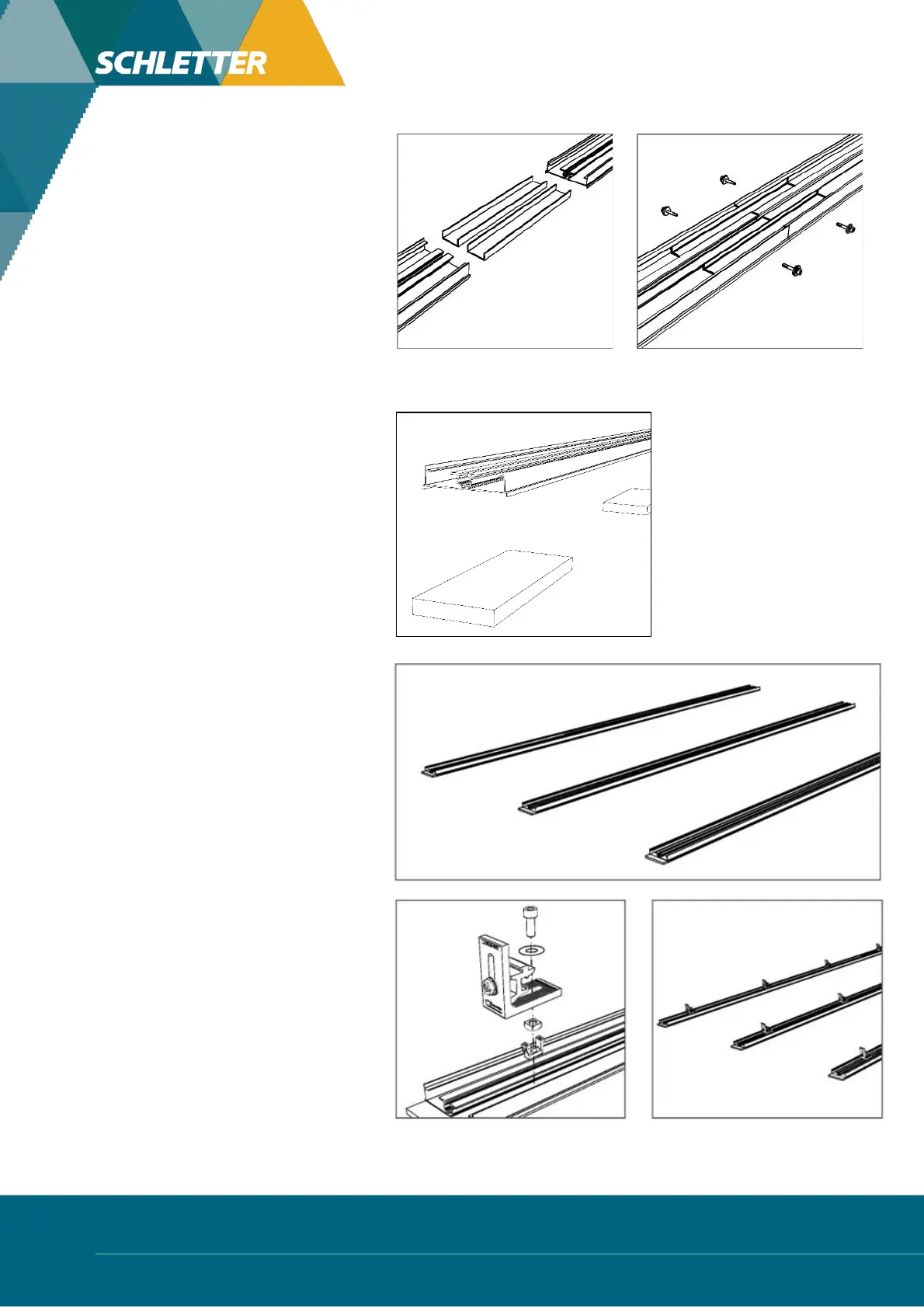

! Extension of base profiles
• Extend the base profile as needed.
• To do this, insert the internal
connector into two profiles and fasten
it at both ends with two self-drilling
screws.
Tool:
Screwdriver with 8 mm plug
attachment
"Installing the structure protection mat
• Adhere the structure protection
mat strips to the existing base
profile after removing the
protective film.
• Observe at least a 30 mm
projection for the structure
protection mat at the ends of the
profiles.
#Alignment of the base profile
• Place the finished base profiles
parallel to each other on the roof in
the direction of the ridge eaves.
• The distance between the profiles
should match static specifications.
$Installing Rapid 2+ L
• Press the one-click module and square nut
into the space provided in the base profile.
• Place Rapid 2+ L onto the profile, align it,
and fasten it with a screw and shim.
