schmersal PSC1-C-10-MC User Manual

Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 180 of 189
Version: 50F

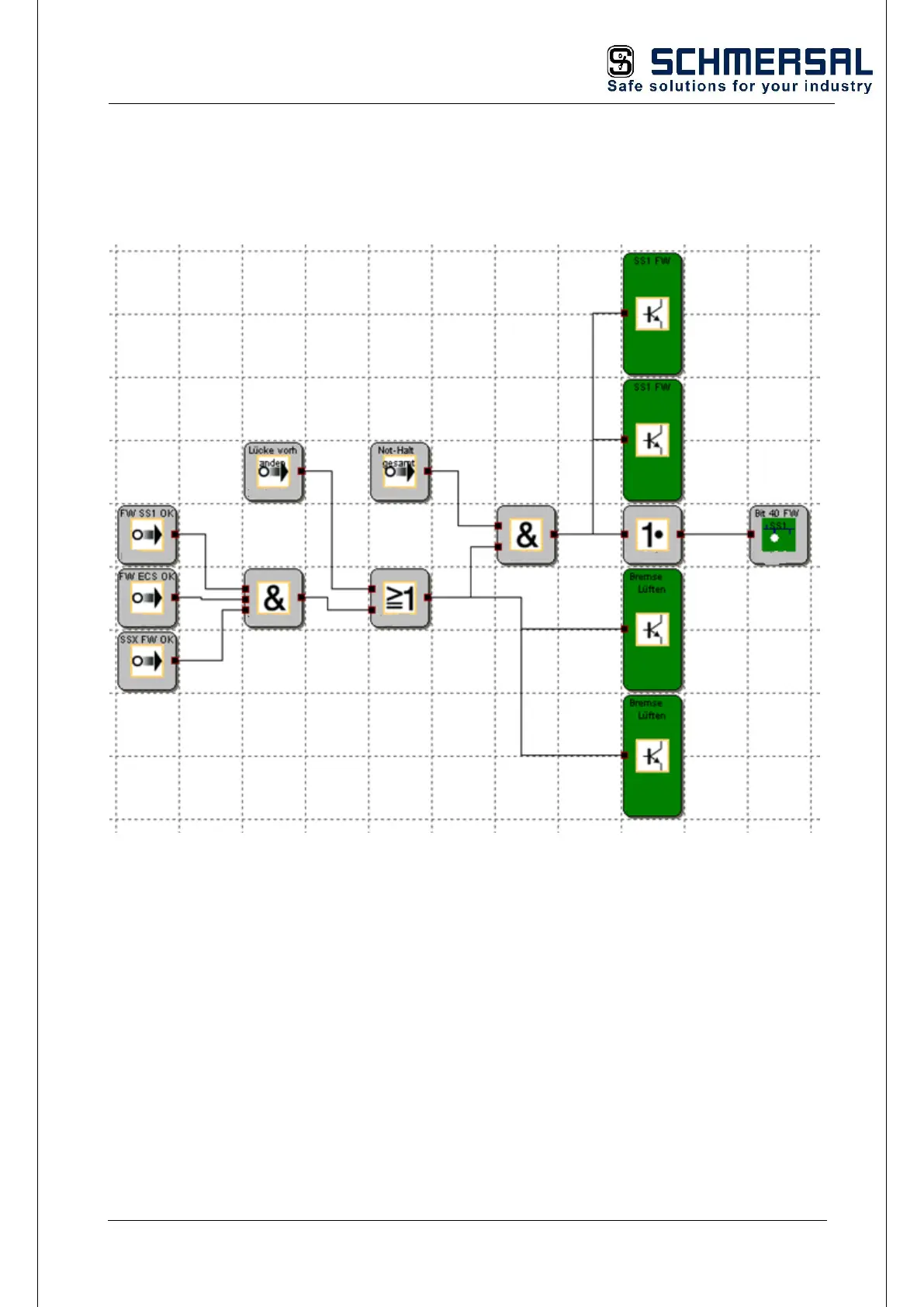

Safety function:
 Engage drive and brake shutdown if emergency stop is actuated or one of the
monitoring functions SS1, ECS or SSX is activated and these are not bridged by "gap
present".
 The running gear is switched off via two "SS1 FW" outputs.
 The brakes are released via two outputs "Release brake".
 A message is sent to the PLC via "Bit 40 FW SS1".
 If there is an emergency stop, the shutdown is implemented immediately.

schmersal PSC1-C-10-MC Specifications

General

Brand	schmersal
Model	PSC1-C-10-MC
Category	Control Unit
Language	English
